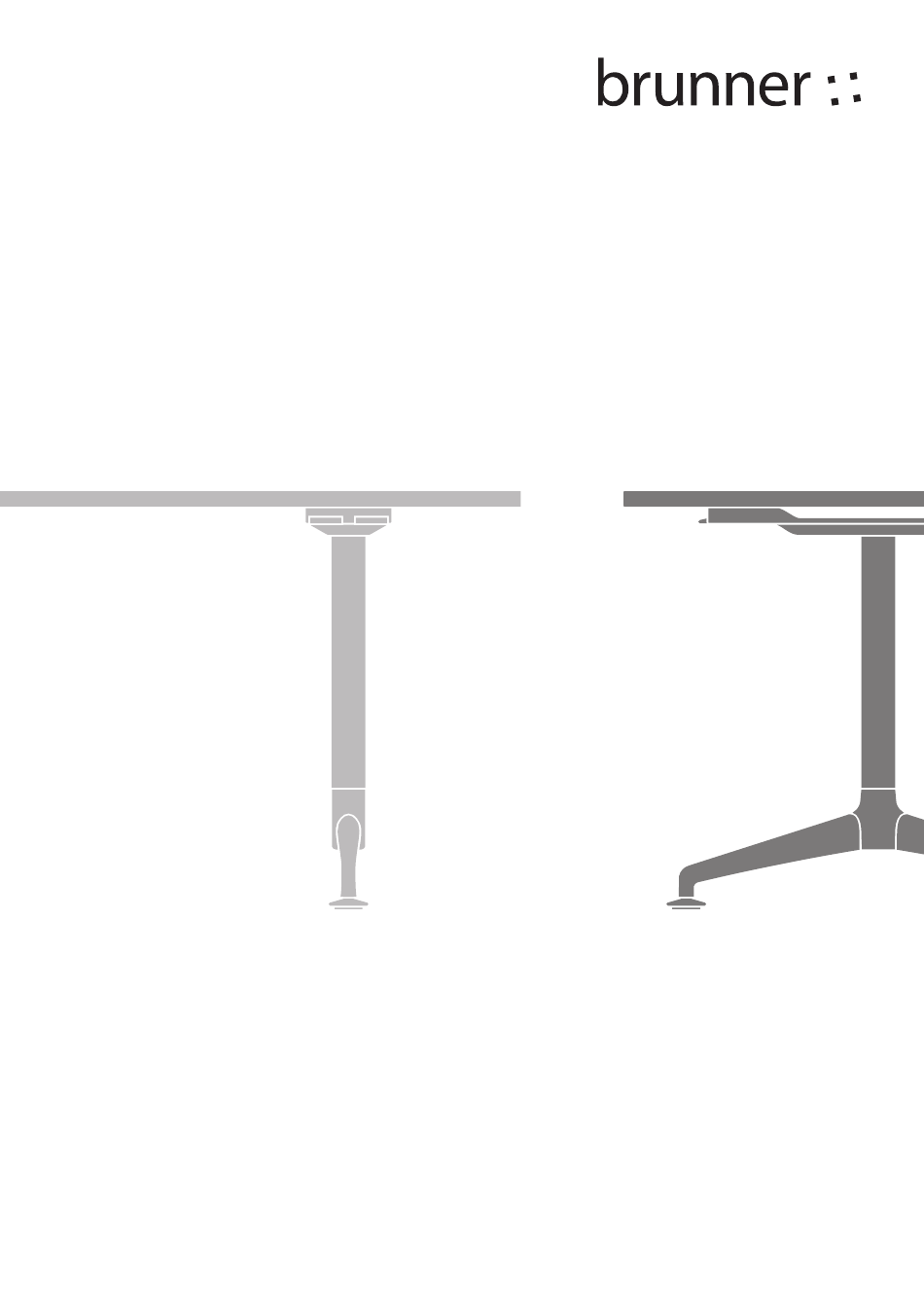

fi na fl ex
Assembly instructions
Design: Wolfgang C.R. Mezger

Advertisement

loading

Related Manuals for Brunner fina flex Series

Summary of Contents for Brunner fina flex Series

  • Page 1 fi na fl ex Assembly instructions Design: Wolfgang C.R. Mezger...
  • Page 2 Thank you for buying a quality Brunner product from the fina flex series. The conference table system with removable T-leg is versatile and features a modular design that can be flexibly extended. The individual table components can be quickly and easily connected.
  • Page 3 THE TABLE SYSTEM: BASIC STRUCTURAL PRINCIPLE FINA FLEX This is a refined interplay between elegant shapes, filigree lightness and convincing stability. Between a unique design statement and a high degree of adaptability to rooms and situations. And it is the perfect addition to finasoft. That's because fina flex represents the systematic evolution of the idea behind the multiple award-winning seating range.
  • Page 4 ASSEMBLY INSTRUCTIONS WINNING FORMULA The modular design of the fina flex frame. Speedy and stable: when locked, the four fingers of the connection elements clamp into the metal plates recessed in the table top. Thanks to the patented mechanism, two table tops can be connected or separated in just a few simple steps, with no need for tools.
  • Page 5 ASSEMBLY INSTRUCTIONS Assembly step 3 If you have assembled multiple individual tables and placed them on the legs, you can connect them to the matching table tops (with the connecting points on the edge). To do so, position the table top's connecting point on the corresponding T-leg brackets (while open) and close both levers to secure the table top.
  • Page 6 EXAMPLES OF TABLE FORMATIONS FOREVER VERSATILE, FOREVER FINA FLEX The versatile system provides for design of the widest range of different table formations – whether for four or forty conference participants, in small or big rooms. Regardless of the configuration – fina flex makes things simple. From the first glance.
  • Page 7 EXAMPLES OF TABLE FORMATIONS Examples of table formations 6 . 7...
  • Page 8 ELECTRIFICATION AND CABLING HORIZONTAL AND VERTICAL CABLE ROUTING There is a black anodised cable duct made of high-grade aluminium for horizontal cable routing under the table top. These can be affixed and removed conveniently, without tools, in a matter of just a few steps. A polished, chrome-plated cable cover can be used for vertical cable routing.
  • Page 9 ELECTRIFICATION AND CABLING USE OF THE CABLE LID The two-sided cable lid makes the electrical side of things easy with your fina flex table system. It enables quick, straightforward access to your profile box. By lifting one of the two outer edges, both sides of the cable lid can be opened. After connecting the cables, you can easily feed the cable ends through one of the two columns to the top of the table.

  • Page 10: Modesty Panel

    MODESTY PANEL OPTIONAL PRIVACY SCREEN If ordering a modesty panel, the mechanism for attaching it is already mounted. The modesty panels, which are 40 centimetres high, can be mounted in a matter of moments with no tools and are impact-resistant. The surface finish can be selected to match the table tops and the screens and is also available in a rounded design. Assembly step 1 The table must be set on its legs to attach the modesty panel.
  • Page 11 TRANSPORT AND STORAGE OF THE TABLE TOPS AND T-LEGS We offer practical storage and transport carts from the fina flex series to simplify transport and storage of the table tops and T-legs. Both transport and storage carts are ideally suited for regularly assembling and dismantling your table system, when converting it to different table formations or if you wish to set up your table system in a variety of room spaces.

  • Page 12: Care Instructions

    Gentle, proper cleaning of the surfaces of your fina flex table system is particularly important to keep it in optimum condition. The following cleaning instructions are only intended as a recommendation. Brunner GmbH will not be held liable for damage to the finish caused by improper cleaning.
  • Page 13 CARE INSTRUCTIONS Cleaning table tops with high-pressure laminate Our high-quality HPL finishes fulfil the requirements of DIN 438. To clean, rinse the surface with warm water and then dry it with a paper towel or soft cloth. If any soiling remains, use a normal household cleaning agent, e.g.
  • Page 14 Imprint Product design: Wolfgang C. R. Mezger Renderings: Udo Kipper. Büro für Gestaltung, Darmstadt Andreas Stapel. Brunner GmbH Text: Thomas Hobein, Darmstadt Hanne Haaf. Brunner GmbH Design: Kerstin Lamprecht. Brunner GmbH...
  • Page 16 © Brunner GmbH 2016 . Im Salmenkopf 10 . D-77866 Rheinau T. +49 78 44. 40 20. F. +49 78 44. 40 28 00. info@brunner-group.com...
