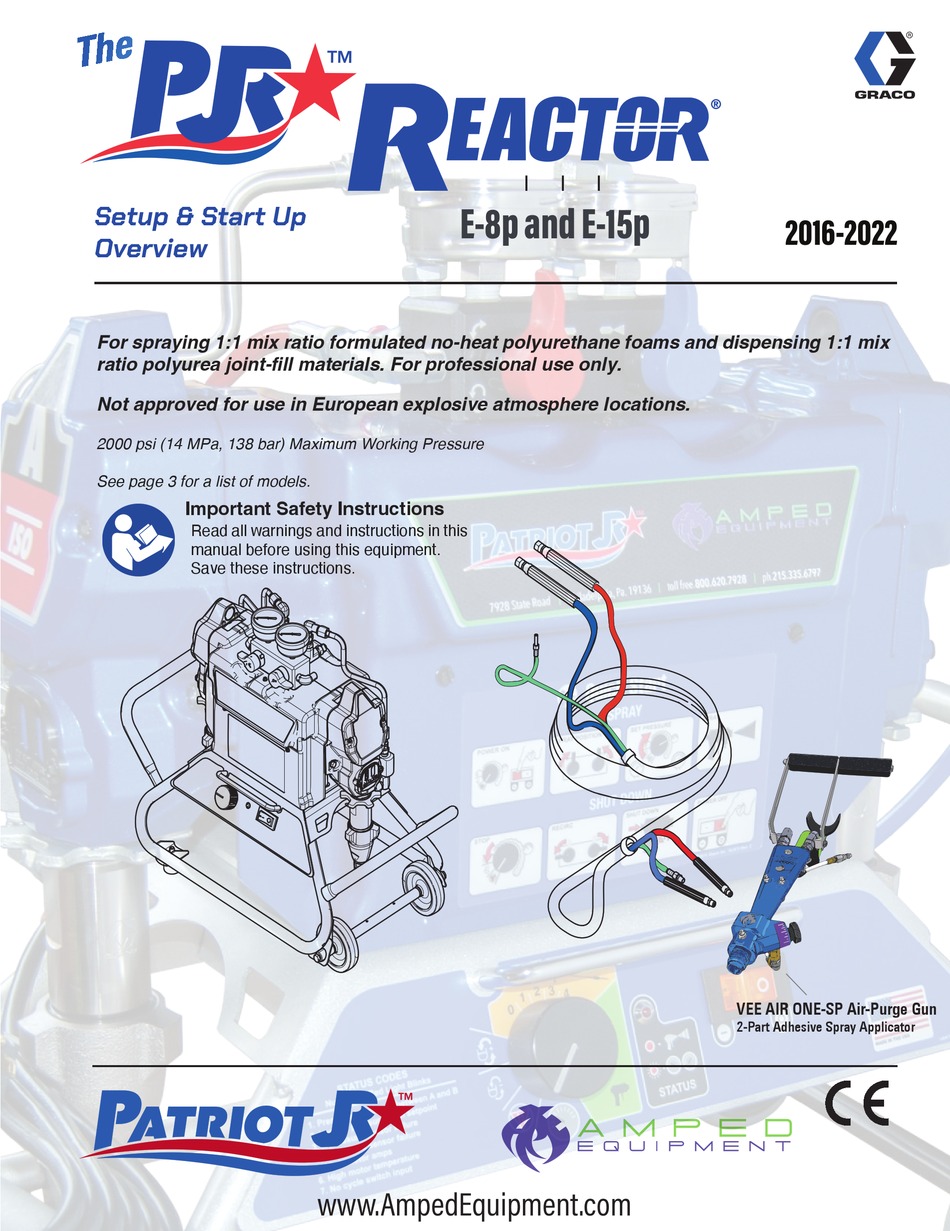

Setup & Start Up
Overview
For spraying 1:1 mix ratio formulated no-heat polyurethane foams and dispensing 1:1 mix
ratio polyurea joint-fill materials. For professional use only.
Not approved for use in European explosive atmosphere locations.
2000 psi (14 MPa, 138 bar) Maximum Working Pressure
See page 3 for a list of models.
Important Safety Instructions
Read all warnings and instructions in this
manual before using this equipment.
Save these instructions.
Portable Plural Component Sprayer
EN
VEE AIR ONE-SP Air-Purge Gun
2-Part Adhesive Spray Applicator
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco PJR REACTOR E-8p
Summary of Contents for Graco PJR REACTOR E-8p
- Page 1 Portable Plural Component Sprayer Setup & Start Up Overview For spraying 1:1 mix ratio formulated no-heat polyurethane foams and dispensing 1:1 mix ratio polyurea joint-fill materials. For professional use only. Not approved for use in European explosive atmosphere locations. 2000 psi (14 MPa, 138 bar) Maximum Working Pressure See page 3 for a list of models.
-
Page 2: Component Identification
Component Identification Component Identification . 1: Component Identification Key: Pump A Hose Bundle Pump B Spray Guns Fluid Pressure Gauges Recirculation Outlet Spray and Overpressure Relief Valves Outlet Hose Connections Control Panel Power Cord Electric Motor and Drive Housings Fluid Inlet “JUST THE TIP... -
Page 3: Controls And Indicators
Controls and Indicators Controls and Indicators Status Indicator Motor/Pump Control Function Knob Power Status Switch Codes TI17123b . 2: Controls and Indicators Power Switch STATUS Indicator Powers the system on and off. Indicates the system status, including power and error codes. -
Page 4: Electrical Requirements
Setup Setup Location Grounding • The system should always be used on a level surface. • Do not expose the system to rain. The equipment must be grounded to reduce the risk Electrical Requirements of static sparking and electric shock. Electric or static sparking can cause fumes to ignite or explode. -
Page 5: Connect Fluid Hoses
Setup Connect Fluid Hoses Connect Main Air Supply Connect the fluid supply hoses to outlet hose The system requires 4 scfm (0.112 m /min) compressed connections (F . 3). Red hoses for component A (ISO), air for the air operated spray guns to work correctly. blue for component B (RES). -
Page 6: Fill Wet-Cups
Setup Fill Wet-cups Fill wet-cups through the slots in the plate, or remove a screw and swing the plate to the side. Keep the felt washers in the pump wet-cups saturated with ISO pump oil. The lubricant creates a barrier between the ISO and the atmosphere.
