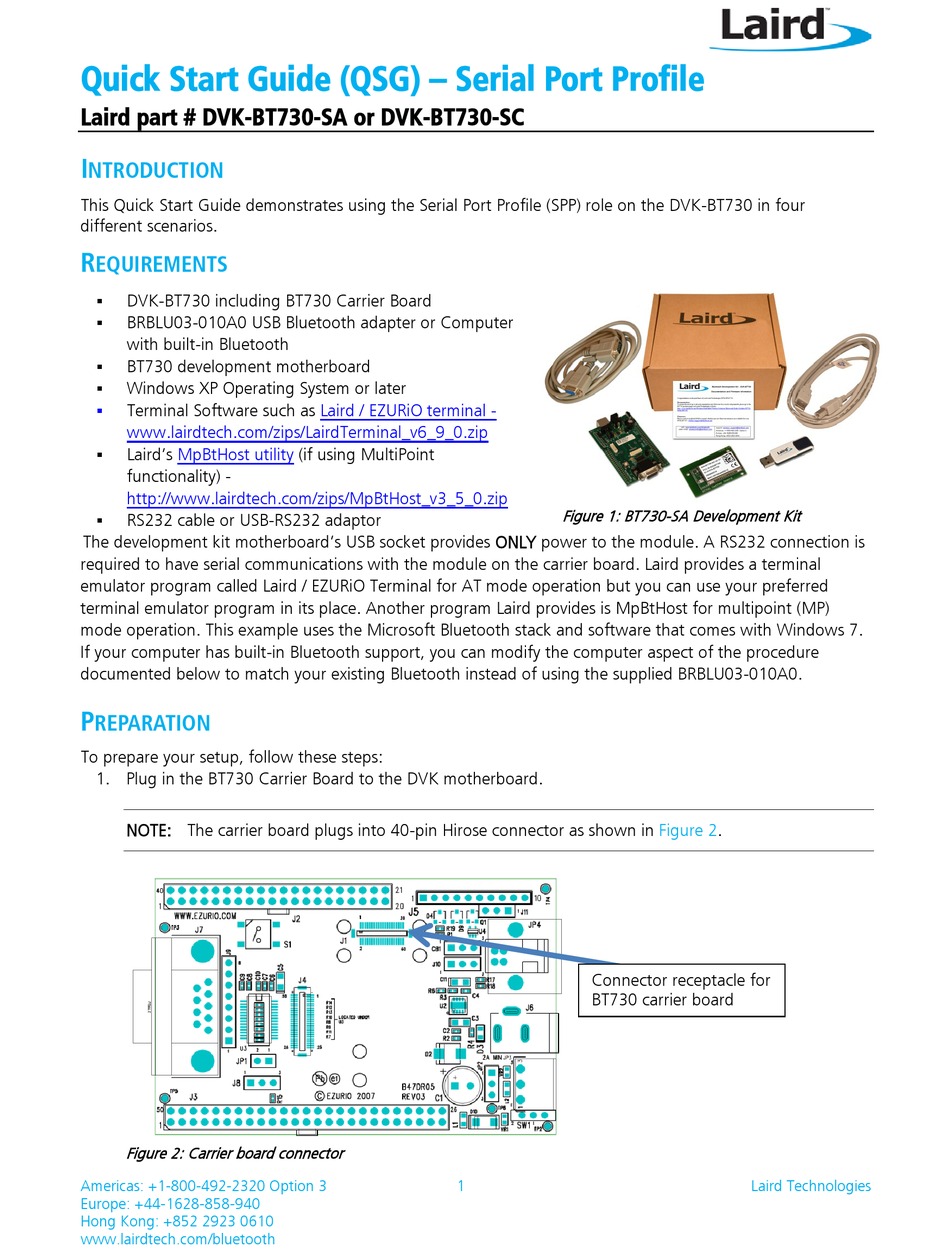

Quick Start Guide (QSG) – Serial Port Profile
Laird part # DVK-BT730-SA or DVK-BT730-SC
I
NTRODUCTION
This Quick Start Guide demonstrates using the Serial Port Profile (SPP) role on the DVK-BT730 in four
different scenarios.
R
EQUIREMENTS
DVK-BT730 including BT730 Carrier Board

BRBLU03-010A0 USB Bluetooth adapter or Computer

with built-in Bluetooth
BT730 development motherboard

Windows XP Operating System or later

Terminal Software such as

www.lairdtech.com/zips/LairdTerminal_v6_9_0.zip
Laird's MpBtHost utility

functionality) -
http://www.lairdtech.com/zips/MpBtHost_v3_5_0.zip
RS232 cable or USB-RS232 adaptor

The development kit motherboard's USB socket provides ONLY power to the module. A RS232 connection is
required to have serial communications with the module on the carrier board. Laird provides a terminal
emulator program called Laird / EZURiO Terminal for AT mode operation but you can use your preferred
terminal emulator program in its place. Another program Laird provides is MpBtHost for multipoint (MP)
mode operation. This example uses the Microsoft Bluetooth stack and software that comes with Windows 7.
If your computer has built-in Bluetooth support, you can modify the computer aspect of the procedure
documented below to match your existing Bluetooth instead of using the supplied BRBLU03-010A0.
P
REPARATION
To prepare your setup, follow these steps:
1. Plug in the BT730 Carrier Board to the DVK motherboard.
NOTE: The carrier board plugs into 40-pin Hirose connector as shown in
Figure 2: Carrier board connector
Americas: +1-800-492-2320 Option 3
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610
www.lairdtech.com/bluetooth
Laird / EZURiO terminal -
(if using MultiPoint
1
Figure 1: BT730-SA Development Kit
Figure 2.
Connector receptacle for
BT730 carrier board
