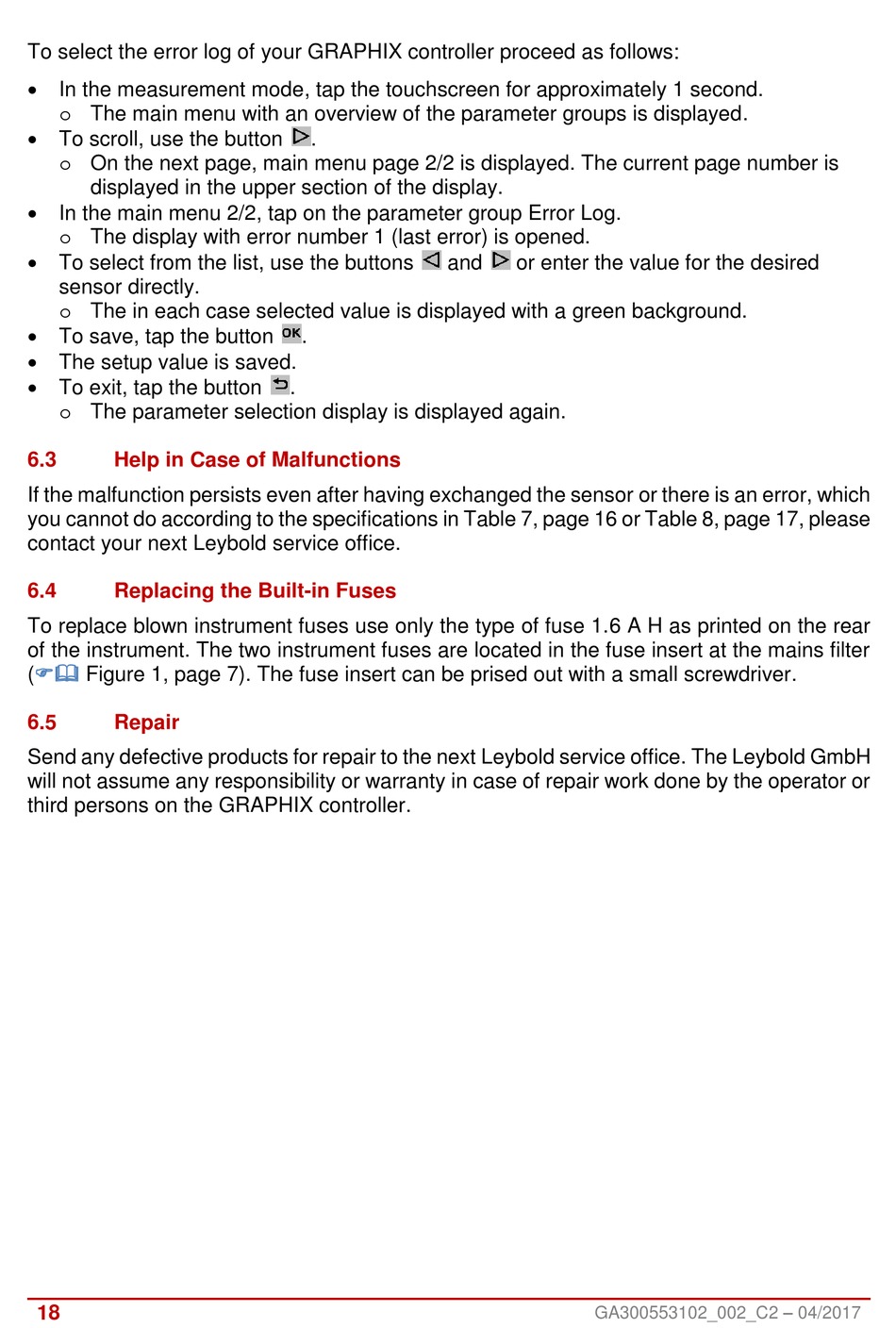

To select the error log of your GRAPHIX controller proceed as follows:
• In the measurement mode, tap the touchscreen for approximately 1 second.
o The main menu with an overview of the parameter groups is displayed.
• To scroll, use the button
o On the next page, main menu page 2/2 is displayed. The current page number is
displayed in the upper section of the display.
• In the main menu 2/2, tap on the parameter group Error Log.
o The display with error number 1 (last error) is opened.
• To select from the list, use the buttons
sensor directly.
o The in each case selected value is displayed with a green background.
• To save, tap the button
• The setup value is saved.
• To exit, tap the button
o The parameter selection display is displayed again.
6.3

Help in Case of Malfunctions

If the malfunction persists even after having exchanged the sensor or there is an error, which
you cannot do according to the specifications in Table 7, page 16 or Table 8, page 17, please
contact your next Leybold service office.
6.4

Replacing the Built-in Fuses

To replace blown instrument fuses use only the type of fuse 1.6 A H as printed on the rear
of the instrument. The two instrument fuses are located in the fuse insert at the mains filter
( Figure 1, page 7). The fuse insert can be prised out with a small screwdriver.
6.5

Repair

Send any defective products for repair to the next Leybold service office. The Leybold GmbH
will not assume any responsibility or warranty in case of repair work done by the operator or
third persons on the GRAPHIX controller.
18
.
and
.
.
or enter the value for the desired
GA300553102_002_C2 – 04/2017
