Armacost Lighting 513119 Manual

Portico Single Color
LED Controller
With RF Remote Control
Model # 513119
Introduction

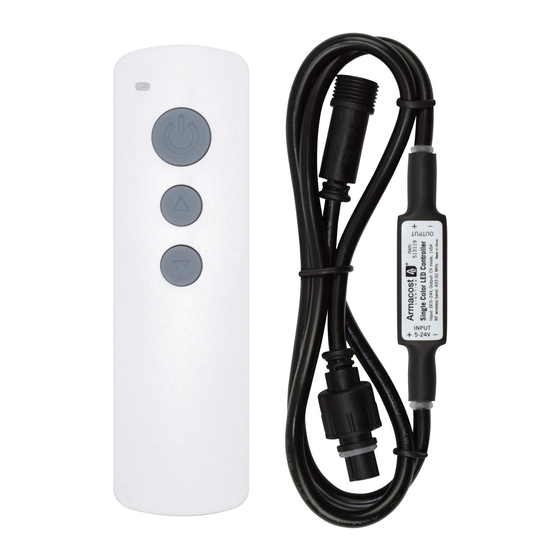

This LED controller is designed to be used with
Portico Single Color LED Lights and the Portico
Outdoor Power Suppy only. The receiver works with
the RF wireless remote control, which allows the user
to adjust LED brightness and select dynamic effects.

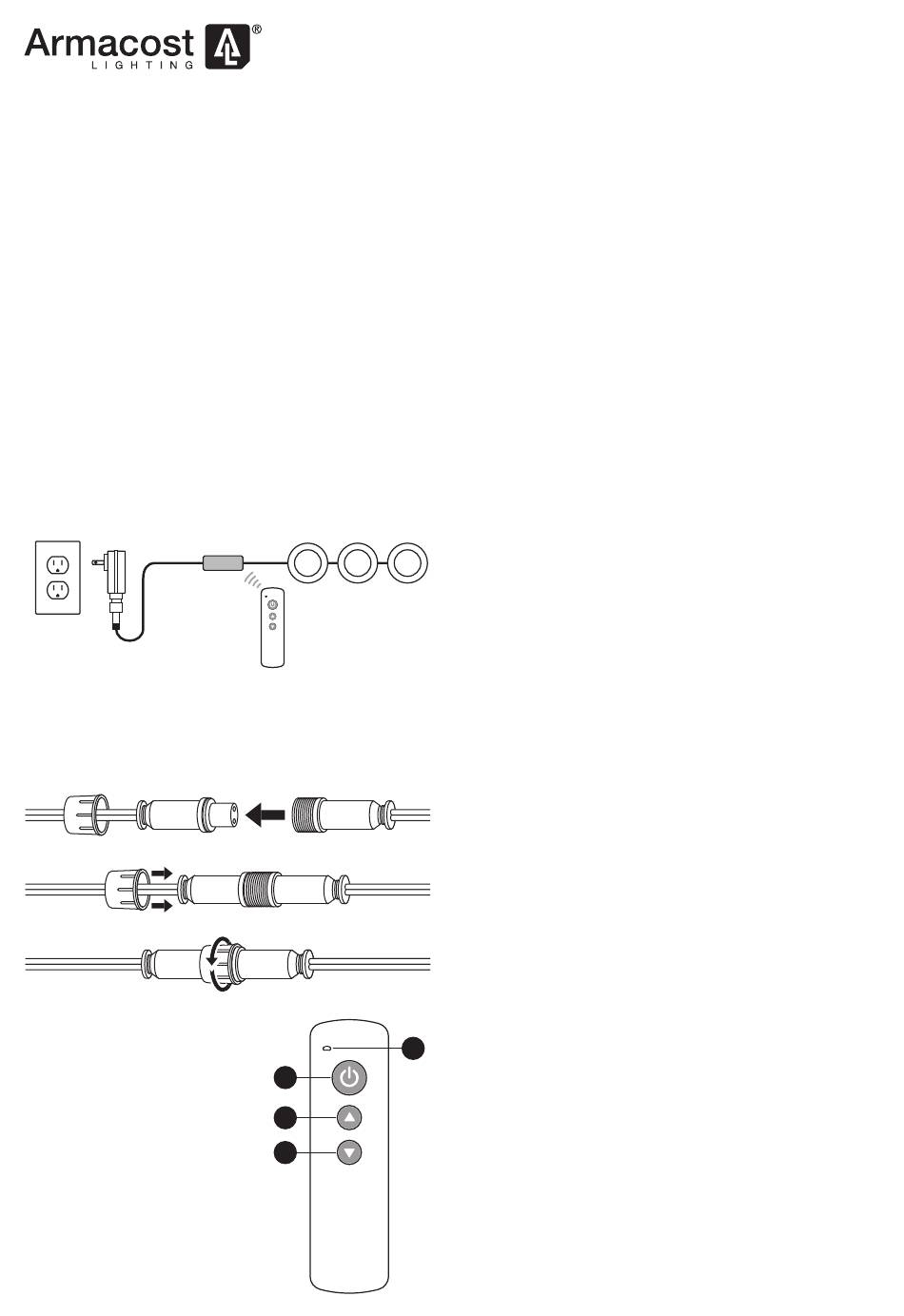

Connecting the receiver
Connect the power supply to the controller input
and the controller output to the LED lights.
Portico Outdoor
Power Supply LED Controller
100/230V
AC Power
To connect to power supply and lights, insert
the male lead into a female connector, making
sure it is aligned properly with the indexing
cutout. Screw together once fully inserted.
Remote Control
1. On /Off
Press this key to turn on
controller. Press and hold
to turn off. The controller
will remember the controller
state when powered off,
and will return to that state
when powered back on.
2/ 3. Brightness adjustment
Press the "▲" and "▼"
keys to adjust brightness.
Portico Portico
LED Lights
Remote
Control
1
2
3
4. Remote indicator
When pressing keys, the indicator blinks if the remote
is working properly. If the indicator flashes slowly
when pressing keys, battery power is low and it needs
to be replaced. Replace with a CR2032 battery.
Remote control operation
Using the remote control
Pull out plastic battery insulation tab before use.
The RF wireless remote will work through non-metal
walls and doors. Do not install in a metal enclosure.
Pairing with a new remote control
The remote control and receiver are already paired,
but up to 5 remotes can be paired to one receiver.
To pair a new remote:
1. Disconnect power to receiver
and wait five seconds.
2. Reconnect power.
3. Within ten seconds, press the ON/OFF and "▼"
keys simultaneously for about three seconds.
De-pairing remotes
To de-pair a remote control, pair the remote you
wish to continue using with the controller and
any other paired remotes will be de-paired.
Overheat protection
If the controller overheats, it will automatically
shut down until the temperature drops to a
safe range. If this occurs, check to make sure
the output current is below the rated level.
Specifications
Output mode ............................................PWM constant voltage
Working voltage .........................................................5–24V DC
Rated output current .............................................................5A
White brightness levels ..........................................................10
PWM frequency ............................................................... 1KHz
PWM physical grade ................................................... 256 steps
Overheat protection ..............................................................Yes
Remote frequency ................................................... 433.92MHz
Remote control range ..........................>49 ft./15m in open areas
Customer support
Email: support@armacostlighting.com
Phone: 410-354-6000
Monday–Friday, 9 a.m.–5 p.m., ET
4
Warranty
1-year limited warranty. Improper installation,
improper powering, abuse, or failure to use this
device for its intended purpose will void warranty.
Proof of purchase is required for all returns.
Questions? Email support@armacostlighting.com.
© 2022 Armacost Lighting. All rights reserved.
armacostlighting.com
220501
