Armacost Lighting RibbonFlex home 421504 Instruction Manual

SAFETY INFORMATION
DANGER: Risk of eye damage. Do not stare directly at the LED chips
■
of this LED strip.
CAUTION: Do not power LED tape while coiled on reel.
■
IMPORTANT: Always observe polarity for 24-volt connections, positive
■
(+) to positive and negative (–) to negative.
IMPORTANT: Do not install Class 2 low voltage wiring in the same runs
■
as AC main power. If AC and low voltage wires cross, keep them at
90-degree angles. Use only insulated staples, plastic ties, or wire
support clips to secure cords and wires.
NOTICE: LED fl exible tape lighting rating: 24VDC 1.5A.
■
Use only the 24-volt LED lighting power supply which has been
■
provided with this kit.
Do not bend, crush or pull the cable. Protect from sharp edges,
■
oil and heat.
For indoor/dry location use only.
■
Ensure the connectors are securely fastened before operating the tape.
■
Electrical waste should not be disposed of with household waste.
■
Please recycle where facilities exist.
Two-year limited warranty
WHAT IS COVERED
The manufacturer warrants this fi xture to be free from defects in materials
and workmanship for a period of two (2) years from date of purchase.
This warranty applies only to the original consumer purchaser and only
to products used in normal use and service. If this product is found
to be defective, the manufacturer's only obligation, and your exclusive
remedy, is the repair or replacement of the product at the manufacturer's
discretion, provided that the product has not been damaged through
misuse, abuse, accident, modifi cations, alteration, neglect, or
mishandling. This warranty shall not apply to any product that is found
to have been improperly installed, set-up, or used in any way not in
accordance with the instructions supplied with the product. This warranty
shall not apply to a failure of the product as a result of an accident,
misuse, abuse, negligence, alteration, faulty installation, or any other
failure not relating to faulty material or workmanship. This warranty shall
not apply to the fi nish on any portion of the product, such as surface and/
or weathering, as this is considered normal wear and tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specifi cally disclaims any warranty,
whether expressed or implied, of fi tness for a particular purpose, other than
the warranty contained herein. The manufacturer specifi cally disclaims any
liability and shall not be liable for any consequential or incidental loss or
damage, including but not limited to any labor/ expense costs involved in
the replacement or repair of said product.
Contact customer support at 410-354-6000, support@armacostlighting.com,
or visit armacostlighting.com/support.
Installation considerations
Where will you locate your power supply?
■
How will you run and conceal the wires to your LED tape lighting?
■
What is the best mounting position for the LED tape light to achieve
■
your desired effect?
See the section titled "Mounting options" for cabinet lighting
■
placement tips.
Continuous White LED Tape Light Kit

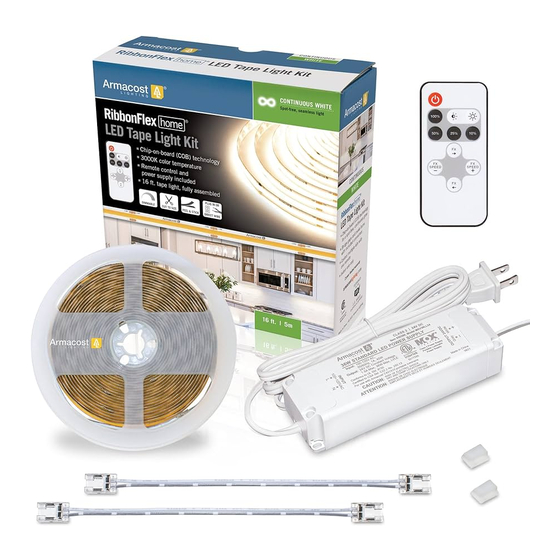

PACKAGE CONTENTS
Plug-in power supply
RF receiver and 16.4 feet
LED tape light (pre-assembled)
Tape to Tape Connectors (optional use)
INSTALLATION

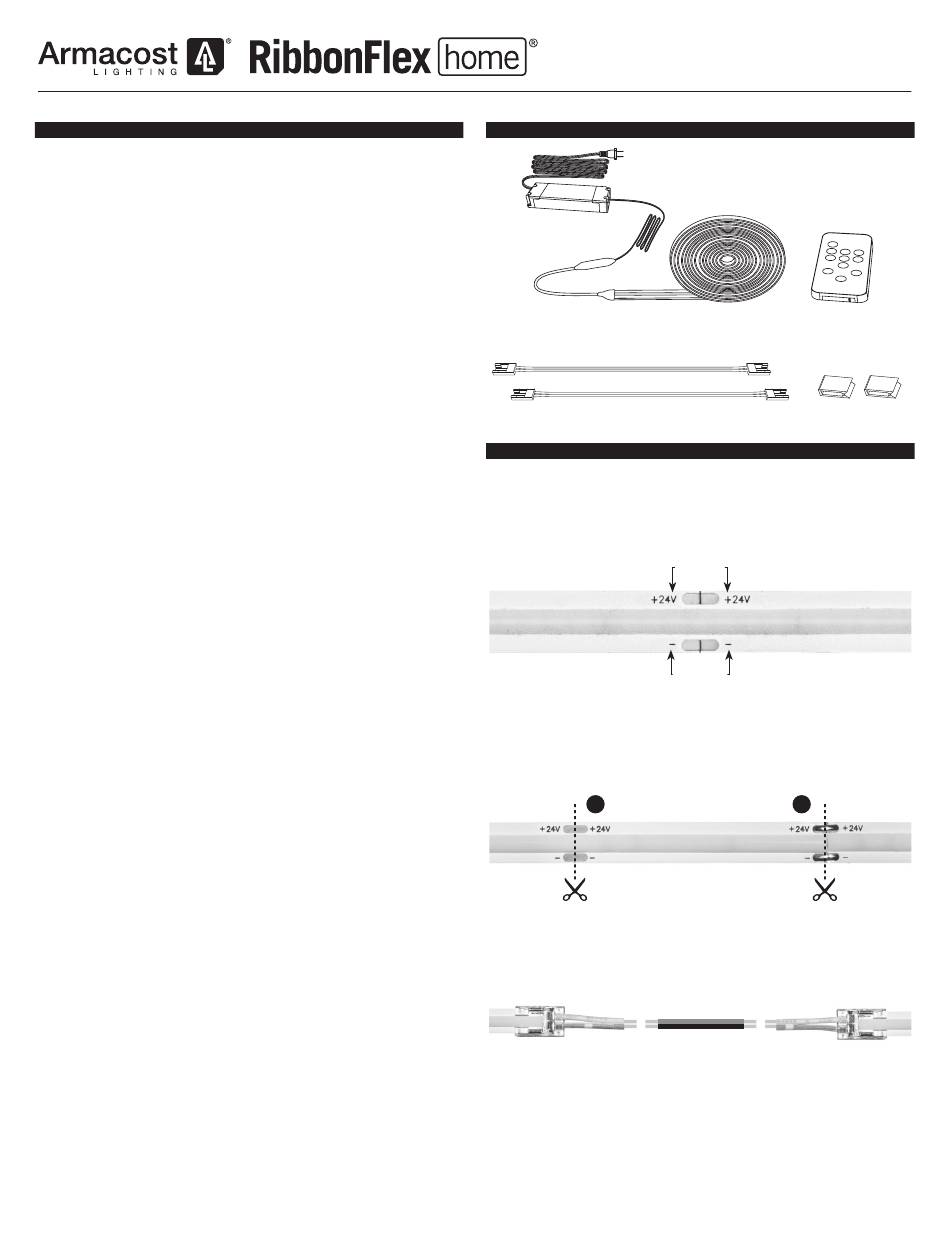

Cutting the tape light (optional)
IMPORTANT: Make sure to observe polarity when making connections,
■
positive to positive and negative to negative. Check to see that the
wire colors and the polarity markings printed on the tape line up.
To use the included connectors, cut the LED tape with scissors in the
■
center of a copper pad (position A) as shown, or attach the connector
to the copper pad found at the end of the tape.
The tape can also be cut at silver solder joints (position B), but this
■
cut point should be used for soldered connections only.
A
Cut tape at
center of
copper pads
Use a connector to make turns and go around corners. They can also
■
be spliced and extended for gaps of any size. 18–20 AWG wire is
recommended for custom lengths (not included).
( + ) ( + )
( – ) ( – )
NOTE: Be sure all 24-volt connections are secure and protected from
electrical shorting. Options include electrical tape, small wire nuts,
crimp connectors, etc.
Item 421504
RF dimmer
remote
Wire support clips
Positive
Negative
B
Okay to cut at solder
joints, but do not
use connector
length to
( + ) ( + )
fi t needs
( – ) ( – )
1
