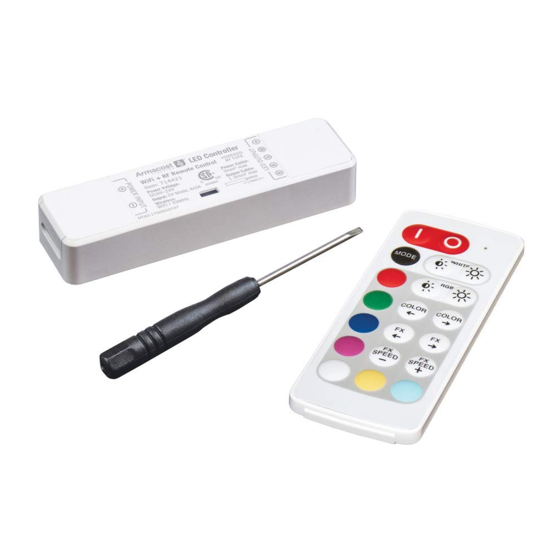

Armacost Lighting ProLine 714421 Quick Start Manual

ProLine Wi-Fi RGB+W
Color LED Controller
With RF Remote Control
Model # 714421
Full Safety High
Protection Power
Compact
Wide Voltage
Size
Range
Wireless Wi-Fi
Connection
Remote
Works with the Tuya Smart
App, available at the iOS
and Google Play stores
Make sure the voltage of the LED lighting is the
same as the power supply and the maximum
load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause
permanent damage to controller. Make sure
cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady yellow: Remote only mode, Wi-Fi disconnected
Steady green: Remote and Wi-Fi mode
Single green blink: Command received
Long single yellow blink: Brightness or speed limit reached
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: Setup command received

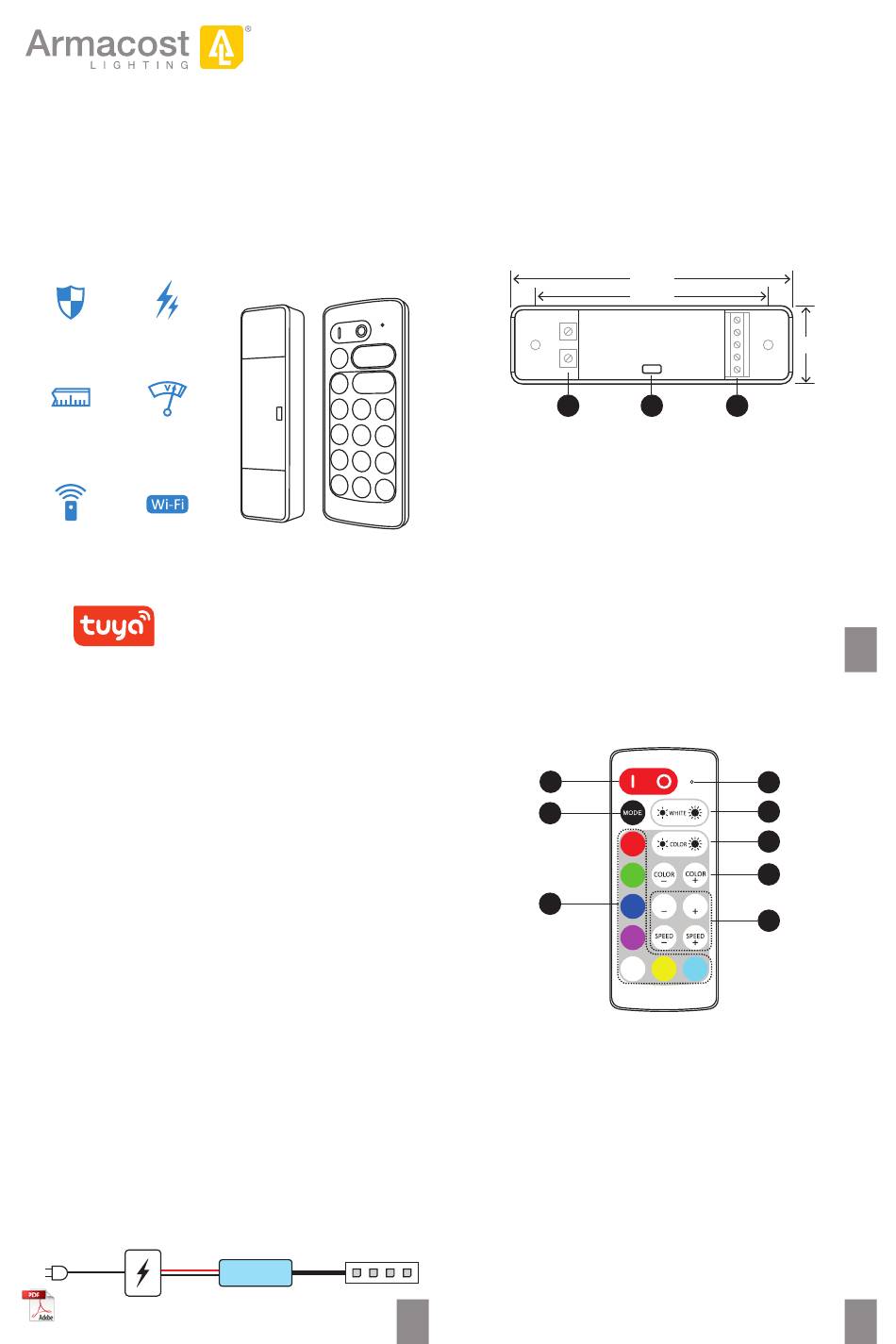

4. Wiring diagram
Connect the power supply to the controller input
and the controller output to the LED lighting.
The output voltage of the power supply must
be the same as the voltage of the LED lighting.
Make sure all power cables are conected
securely and insulated before powering on.
6–24V DC
100/230V Output
AC Power Power Supply
6–24V DC
LED LED
Controller Lighting
6–24V DC
Introduction
This LED controller is designed to drive constant
voltage RGB+White LED products such as LED
tape light or LED fixtures in a voltage range of
6–24 volts DC. The receiver works with the RF
wireless remote control, which allows the user
to choose between multiple colors, adjust the
LED brightness, and select dynamic effects.
Receiver & wiring
1
1. Input – from power supply
The controller input and output voltage range is
6–24 volts DC. Make sure the LED lighting voltage is
within this range and below the rated wattage of the
power supply. Connect input wires from the power
supply to the controller as indicated by the polarity
markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller
when connecting to LED lighting (+ to +,
G to G, R to R, B to B, and W to W).
Remote Control
5
6
8
5. On / Off
Press the "|" key to turn on controller or the "0"
key to turn off. The controller will remember
the controller state when powered off, and will
return to that state when powered back on.
6. Mode selection
Press this key to switch between RGB, white, and
RGB+white mode. If the RGB mode is selected,
the white channel will be disabled, and if the white
mode is selected, RGB channel will be disabled.
In RGB+White mode all channels are enabled.
2
87mm
72mm
24mm
3 2
12
9
10
7
EFFECT EFFECT
11
1
3
