Armacost Lighting 713420 Quick Manual

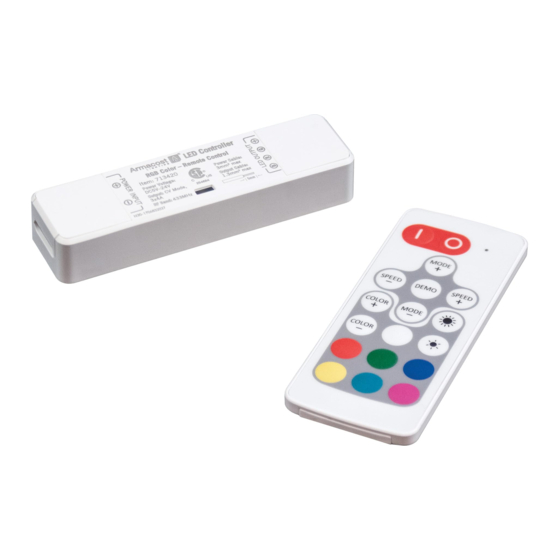

Proline RGB Color LED Controller
With RF Remote Control
Model # 713420
Full Safety High
Protection Power
Compact Wide Voltage
Size Range
Wireless
Remote
Make sure the voltage of the LED lighting is the
same as the power supply and the maximum
load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause
permanent damage to controller. Make sure
cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady green: Normal working mode
Single green blink: Command received
Long single green blink: Mode or color cycle limit reached
Long single yellow blink: Brightness or speed limit reached
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: New remote control paired
4. Wiring diagram
Connect the power supply to the controller input
and the controller output to the LED lighting.
The output voltage of the power supply must
be the same as the voltage of the LED lighting.
Make sure all power cables are conected
securely and insulated before powering on.
5–24V DC
100/230V Output
AC Power Power Supply
5–24V DC
LED LED
Controller Lighting
5–24V DC
Introduction
This LED controller is designed to drive constant voltage
RGB LED products such as LED tape light or LED
fixtures in a voltage range of 5–24 volts DC. The receiver
works with the RF wireless remote control, which allows
the user to choose between multiple colors, adjust
the LED brightness, and select dynamic effects.
Receiver & wiring
1
1. Input – from power supply
The controller input and output voltage range is
5–24 volts DC. Make sure the LED lighting voltage is
within this range and below the rated wattage of the
power supply. Connect input wires from the power
supply to the controller as indicated by the polarity
markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller
when connecting to LED lighting (+ to +,
G to G, R to R, and B to B).
Remote Control
5
7
6
5. On / Off
Press the "|" key to turn on controller or the "0"
key to turn off. The controller will remember
the controller state when powered off, and will
return to that state when powered back on.
6. RGB color setting
Press the "COLOR+" and "COLOR–" keys to
scroll through all the color options. The colored
keys are shortcuts for preset colors. Press the
and the
2
87mm
72mm
3 2
keys to adjust color brightness.
24mm
1
8
3
