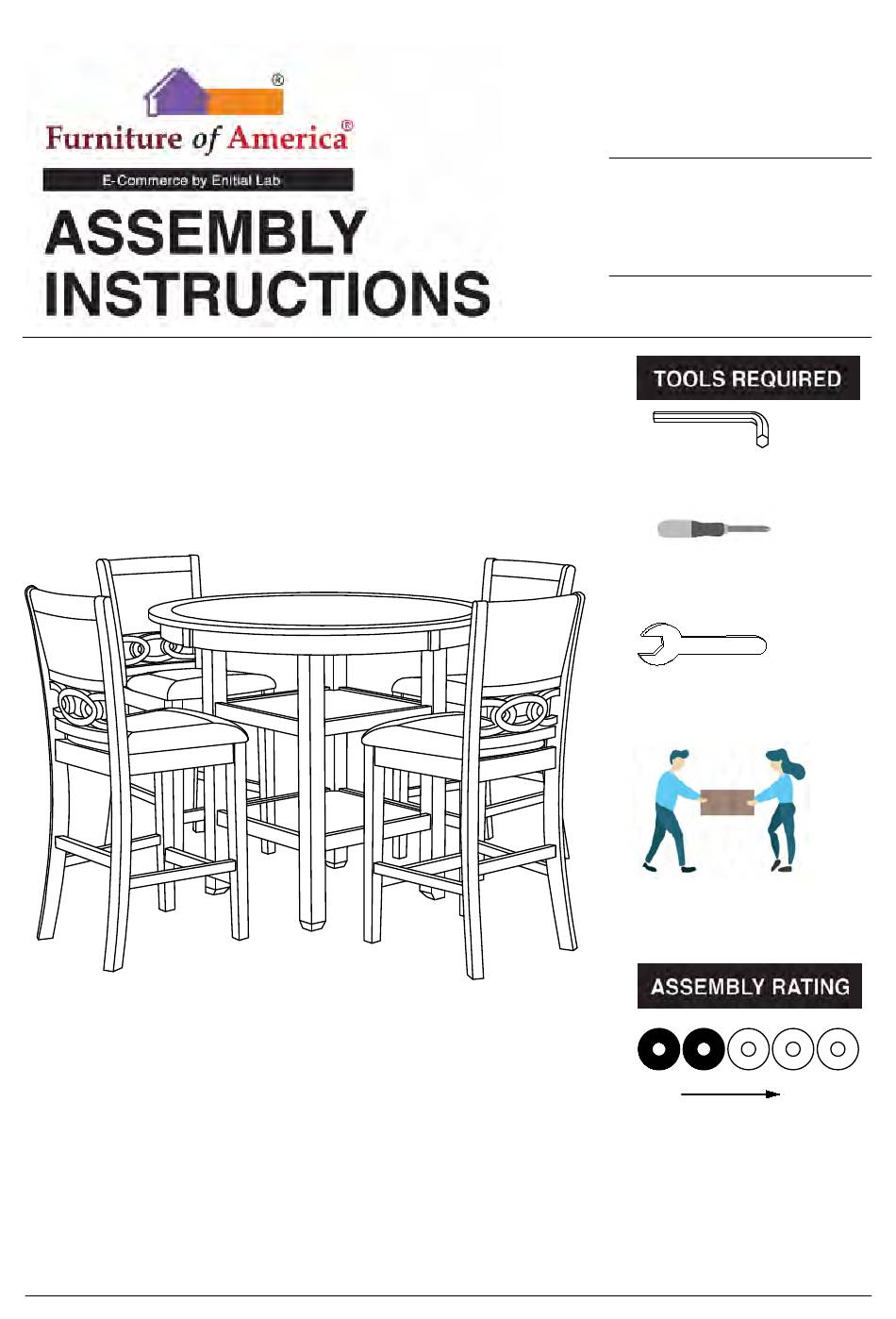

VERSION # 20-08-18
1 / 1 2
MODEL #
CM3609PT-5PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
Wrench 13mm
(Included)
2 - Pe ople
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Milly CM3609PT-5PK
Summary of Contents for Furniture of America Milly CM3609PT-5PK
- Page 1 MODEL # CM3609PT-5PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) Wrench 13mm (Included) 2 - Pe ople Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 2...
- Page 5 TABLE CM3609PT -5PK #1 1pc #2 4pcs #3 2pcs Table Leg Table Shelve Table Top #A 12pcs #B 12pcs #C 12pcs #D 1pc Bolt Ø5/16" x 2-3/8" Lock Washer Ø5/16" Flat Washer Ø5/16" Allen Wrench 4mm 5 / 1 2...
- Page 6 ASSEMBLY INSTRUCTIONS Part #2 x2pcs Align shelves (#3) to legs (#2), then secure by using bolts (#A) with Part #3 x2pcs washers (#B,C). Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Align legs (#2) to shelves (#3), then secure by using bolts (#A) Part #2 x2pcs with washers (#B,C).
- Page 7 ASSEMBLY INSTRUCTIONS Align table top (#1) to legs (#2), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs 7/12...
- Page 8 CHAIR CM3609 PT-5PK #2 1pc x4 #3 1pc x4 #1 1pc x4 Chair Back Seat Frame Cushion Seat #5 2pcs x4 #6 1pc x4 #4 2pcs x4 Front Legs (L&R) Side Stretcher (L&R) Front Stretcher #A 4pcs x4 #B 3pcs x4 #C 11pcs x4 #D 11pcs x4 Bolt Ø1/4"...
-
Page 9: Exploded View
Exploded View # 5R # 4R # 5L # 4L 9/12... - Page 10 ASSEMBLY INSTRUCTIONS Align seat frame (#2) to chair back (#1), then secure by using bolts (#B) with washers (#C,D). Part #1 x1pc Part #2 x1pc Hardware #B x3pcs Hardware #C x3pcs Hardware #D x3pcs Secure corner holes of the seat frame (#2) to chair back (#1) by Hardware #A x4pcs...
- Page 11 ASSEMBLY INSTRUCTIONS Align stretchers (#5R/L) to the chair back (#1), then secure by using screws (#G). Part #5 x2pcs Hardware #G x2pcs Align legs (#4R/L) to seat frame (#2) and stretchers (#5R/L,6), then secure legs (#4R/L) to seat frame (#2) by using hex nets Part #4 x2pcs (#E) with washers (#C,D).
- Page 12 ASSEMBLY INSTRUCTIONS Secure stretchers (#5R/L,6) to legs by Hardware #G x4pcs using screws (#G). Align seat (#3) to seat frame (#2), then secure Part #3 x1pc by using screws (#G). There are no pre-drilled Hardware #G x6pcs holes for this step. 12 / 12...
