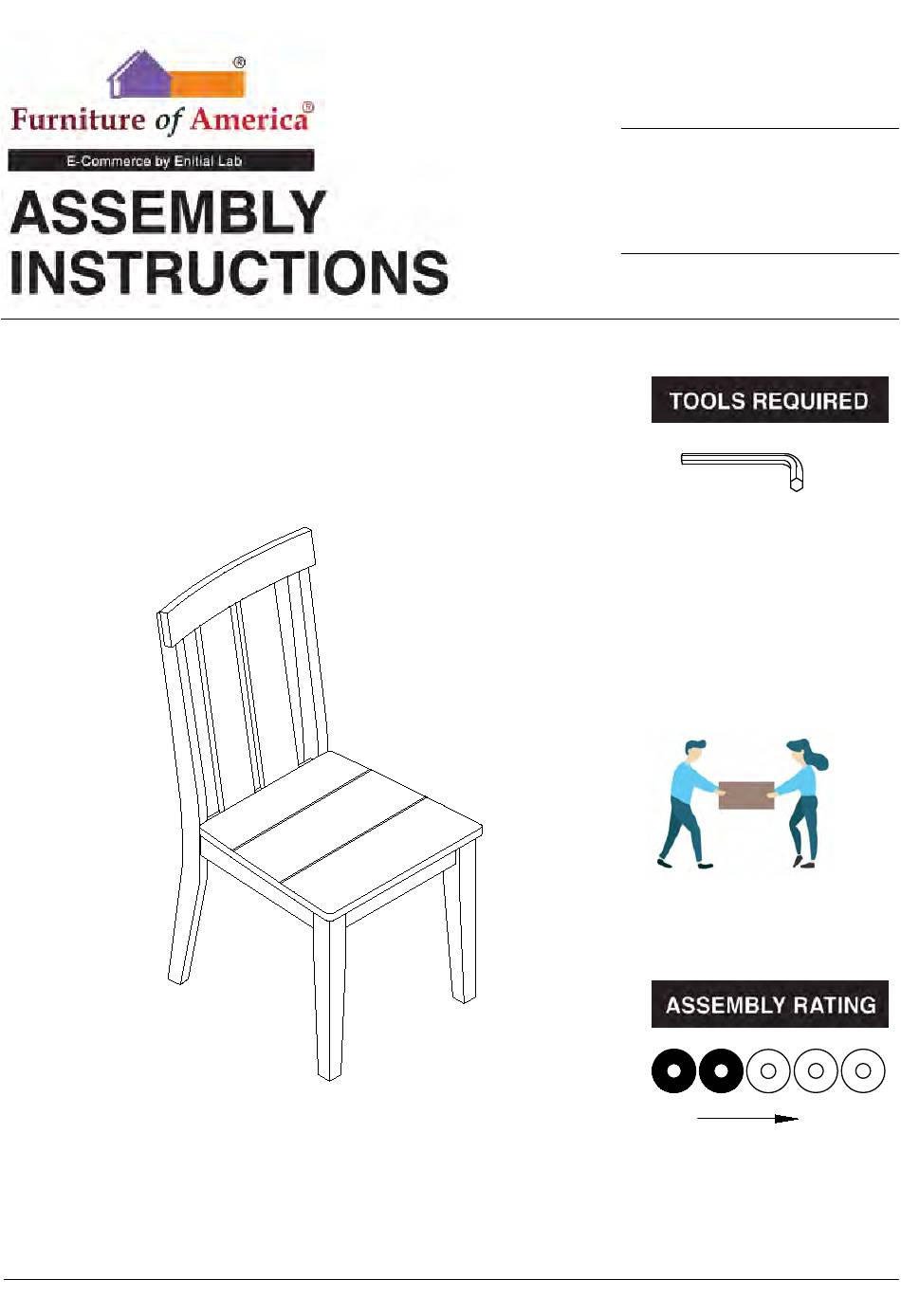

- Page 1 MODEL # CM3668SC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 Side Chair CM3668SC-2PK #3 4pcs #2 2pcs #1 2pcs Backrest w/Legs Front Leg Seat #A 8pcs #B 8pcs #C 4pcs #D 20pcs Bolt Ø1/4 x 2-1/2'' Bolt Ø1/4 x1-3/8'' Lock WasherØ1/4 Bolt Ø1/4" x 3'' #E 20pcs #F 2pcs Flat Washer Ø1/4 Allen Wrench...
- Page 6 ASSEMBLY INSTRUCTIONS 1. Prepare 2 bolt assemblies by first inserting a lock washer (#D) onto the bolt (#C) then a flat washer (#E) onto that same bolt (#C). 2. Align the holes along the back of the seat (#2) Part #1 x2pcs to the holes along the backrest (#1), then Part #2 x2pcs insert the bolt assemblies into the center...
- Page 7 ASSEMBLY INSTRUCTIONS 1. Prepare 4 bolt assemblies by first inserting a lock washer (#D) onto Part #3 x4pcs the bolt (#B) then a flat washer (#E) onto that same bolt (#B). Hardware #B x8pcs 2. Align the front legs (#3) to the front corners of the seat (#2), then insert the bolt assemblies into the front corner holes.
