MODEL #
CM3175 T - 5 PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Philips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America Glenham CM3175T-5PK
Summary of Contents for Furniture of America Glenham CM3175T-5PK

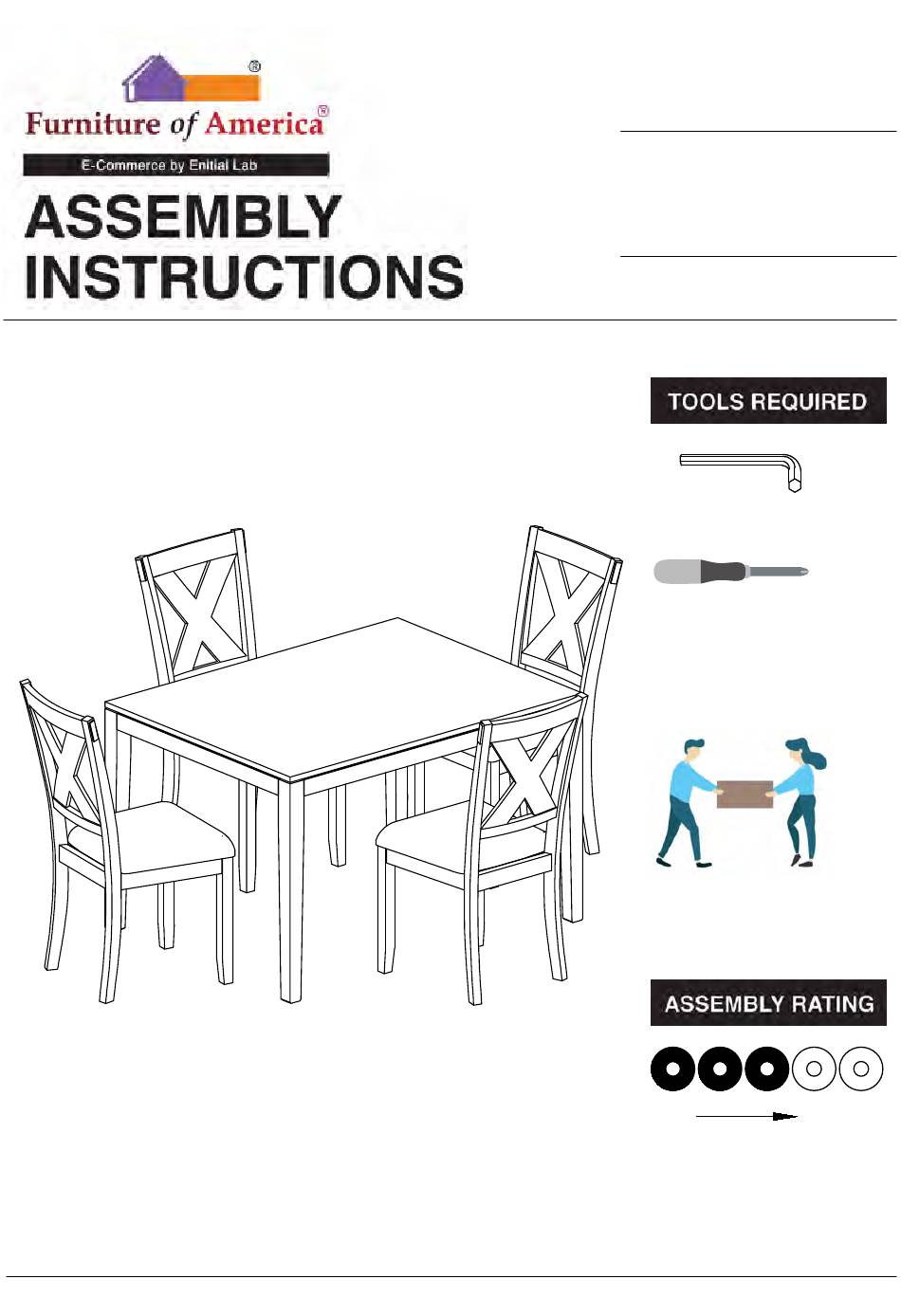

- Page 1 MODEL # CM3175 T - 5 PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Philips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 TABLE SET CM3175 T - 5 PK #1 1pc #2 4pcs #3 4pcs #4 4pcs #5 8pcs Table Leg Front Leg Table Top Chair Back Cushion Seat #A 8 pcs #B 8pcs #C 8pcs #D 16pcs Bolt Ø 5 / 16 " x 2-1/2 " Lock Washer Ø5/16"...
- Page 6 ASSEMBLY INSTRUCTIONS Part #1 x1pc Unscrew and remove the corner blocks from the table top (#1). 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Align legs (#2) to the top, then secure by using bolts (#A) with washers (#B,C). Part #2 x4pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Align seat (#4) to the chair back (#3), then Part #3 x4pcs secure by using bolts (#F) with washers (#G,H).
- Page 8 ASSEMBLY INSTRUCTIONS Secure corner holes of the seat to chair back by using bolts (#D) with washers Hardware #D x16pcs (#H,G). Hardware #G x16pcs Hardware #H x16pcs Align front legs (#5) to the seat, then Part #5 x8pcs secure by using bolts (#E) with Hardware #E x16pcs washers (#G,H).
