Furniture of America CM3603SC-2PK Assembly Instructions

Download this manual

Assembly Instructions

CM3603SC-2PK

ASSEMBLY RATING

Tools Required for Assembly:

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

(Included)

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

DIFFICULT

EASY

Page 1 of 5

Rev.14-09-10

Need help?

Do you have a question about the CM3603SC-2PK and is the answer not in the manual?

Page 1 Assembly Instructions CM3603SC-2PK ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some products, two persons are recommended.
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc x 2 #A x 1 pc x 2 Backrest w/ Legs Bolt 5/16”x2”...

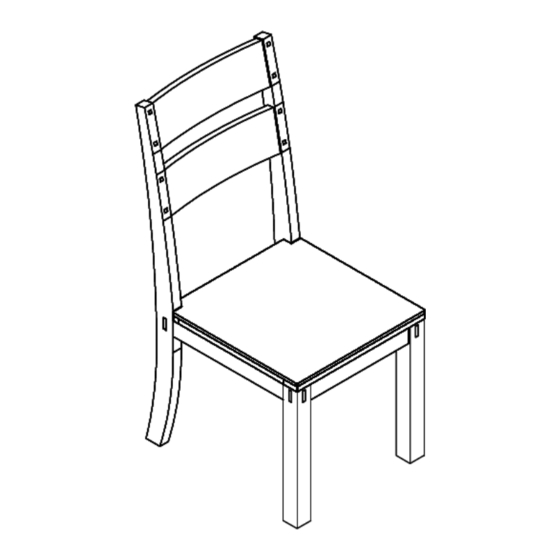

Page 4 #A x 1 pc #D x 1 pc #E x 1 pc Turn right (clockwise) to tighten Place the backrest with legs (#1) on a protected surface. Align the seat (#2) with the pre-drilled holes of the backrest with legs (#3).
Page 5 #B x 4 pcs #D x 4 pcs #E x 4 pcs Align the 2 front legs (#3) with the pre-drilled holes on the corners of the seat (#2). II. Prepare 4 bolt assemblies by inserting FIRST the lock washer (#E) onto the bolt (#B) and then the flat washer (#D) onto the SAME bolt (#B), in that order.
