height-adjustable bench
Section:
SCREENS & GABLES
Navigate End Screen Gable - Metal (HNBCGSMN), Navigate End of Run Screen (HNBTEF)
1.2.2
1.2.1
Installation Guides
1.1
2.1
2.4
2.2
Date: Sept 2019
Page: 1 of 6
HABN_223e
Rev. 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HNBCGSMN and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion HNBCGSMN

Summary of Contents for Teknion HNBCGSMN

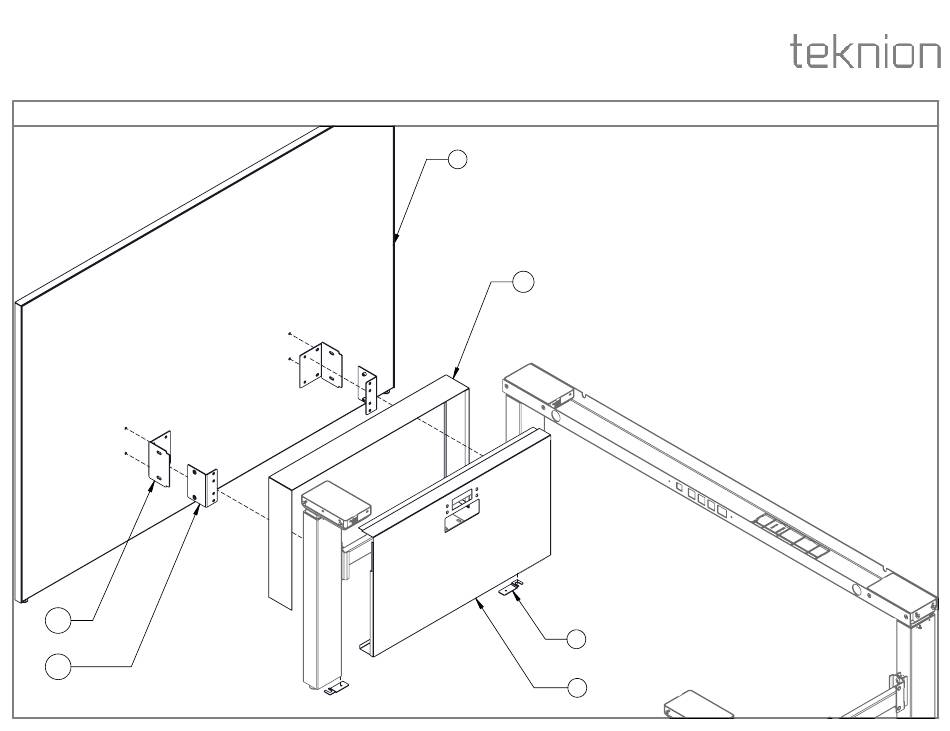

  • Page 1 Installation Guides Date: Sept 2019 Page: 1 of 6 Section: SCREENS & GABLES HABN_223e Rev. 01 Navigate End Screen Gable - Metal (HNBCGSMN), Navigate End of Run Screen (HNBTEF) 1.2.2 1.2.1...
  • Page 2 END SCREEN BRKT, OUTER, HAB A16-7728 1.2.3 1/4-20X5/8" MACH SCR, BLACK, QUAD,TRUSS E01-0113 2. NAVIGATE END SCREEN GABLE - METAL (HNBCGSMN) x1 TOP COVER FOR END SCREEN GABLE, HNB A16-7651-X INSIDE COVER ASSY END SCREEN GABLE N09-9124-X #10X1/2" TAP SCR, QUAD,PAN...
  • Page 3 height-adjustable bench Installation Guides Date: Sept 2019 Page: 3 of 6 Section: SCREENS & GABLES HABN_223e ATTACH OUTER BRACKETS TO SCREEN ATTACH GABLE CONNECTORS TO LEGS NOTE: Ensure the Screen is Leveled. NOTE: Bolts come with the Table Frame. 1.2.2 1.2.3 STEP 1: Attach Outer Bracket to End Screen using Screws provided STEP 2: Loosen Bolts that come with the Table Frame, and slide Gable Connector to...
  • Page 4 height-adjustable bench Installation Guides Date: Sept 2019 Page: 4 of 6 Section: SCREENS & GABLES HABN_223e LINE UP INSIDE COVER AND BRACKET SECURE INSIDE COVER TO CONNECTOR STEP 3: Line up the Cable Channel Bracket with the Inside Cover, and place against the STEP 4: Use Screws provided to secure the Inside Cover to the Gable Connector horizontal frame...
  • Page 5 height-adjustable bench Installation Guides Date: Sept 2019 Page: 5 of 6 Section: SCREENS & GABLES HABN_223e SCREW COVER TO BRACKET ATTACH BRACKETS TO FRAME NOTE: Support Bracket ships with Cable Channel. For Cable Channel installation procedures, please refer to guide HABN_223a/223b 1.2.3 1.2.1 STEP 5: Screw the Inside Cover to the bracket using the Screws provided in the Cable...
  • Page 6 height-adjustable bench Installation Guides Date: Sept 2019 Page: 6 of 6 Section: SCREENS & GABLES HABN_223e ATTACH END SCREEN TO FRAME PLACE TOP COVER ON FRAME NOTE: Raise the 1.2.2 frame to its' maximum height before placing the Top Cover NOTE: Parts of the Frame are Hidden for Illustration Purpose.
