Teknion RPSAG Installation Manuals

expansion desking Installation Guides
– Columns & Screens
Section
RPSAG – Add-On Screen for Modular Desk – Glass
RCSBG – Central Screen for Spine Desk – Glass

Product

RPSAG RSED
RCSBG RCSLG

TOOLS REQUIRED:

Cross or Square Drive #3, and
1/8" Hexagonal Key,
Reference Installation Guides:
1091 Spine Desks "Spine Desks – Single-Sided RMSRL, RMSSL, RMSDL, RMSEL"
1092 Spine Desks "Spine Desks – Shared RMDRL, RMDSL, RMDDL, RMDEL"
1001, 1002, 1004, 1044, 1073 Modular Desks"
For additional information on this installation contact Teknion | Roy & Breton Technical Support.
Issue Date: 2013 May 27

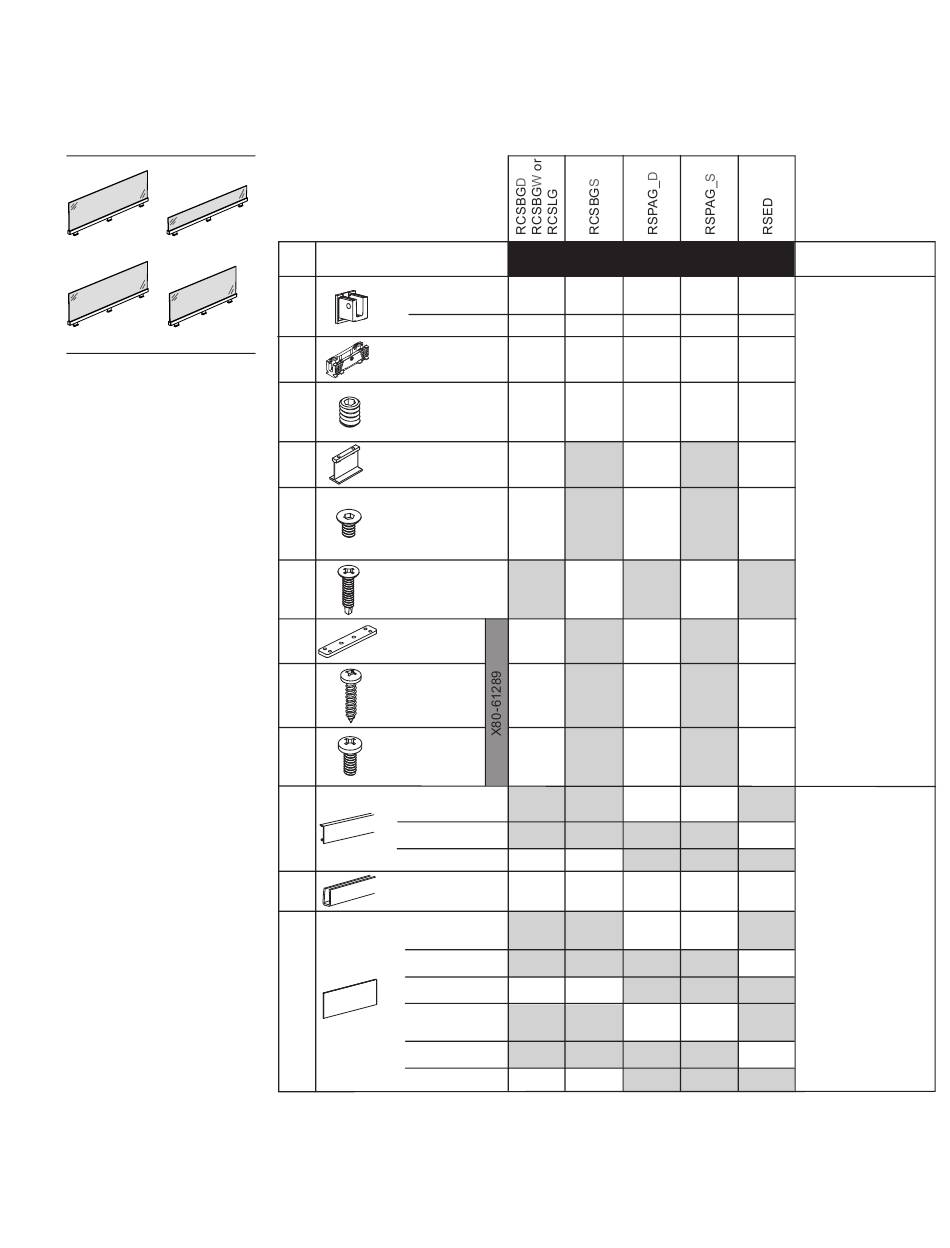

RPSAG, RCSBG, RCSLG and RSED - Part / Product Identification and What's Included
Ref. Illustration
Cap
A
A25-61021L
and
A25-61021R
B Assembly Bracket
N80-50018
1/4" – 20 x 1/4"
C Flat Point, Hex Socket
Set Screw, Black
E01-50308
Fastener
D
A23-61282
#10 – 24 x 3/8"
82° Countersunk
E
Flat Hd. Hex Socket,
Cap Screw
E01-50794
#12 – 14 x 1 1/4"
Quadrex Flat Head
F
Self-Drilling Screw
E04-50077
Back Plate
G
A15-61244
#12 x 3/4"
Quadrex Pan Hd.,
H
Wood Screw, Zinc
E04-50017
1/4" – 20 x 5/8"
Quadrex Pan Hd.,
I
M. Screw, Black
E01-50403
Screen Cover
A23-61261+ww
or
J
A23-61287+ww
or
A23-61297+ww
K Gasket
B03-50073
Clear Glass
H01-61028+hh+ww
or
H01-61033+ww
or
H01-61039+ww+hh
L
or
Frosted Glass
H02-61029+hh+ww
or
H02-61035+ww
or
H02-61039+ww+hh
hh= Height and ww = Width
RCSLG – Lateral Screen for Spine Desk – Glass
RSED – Glass Divider – Open Base Desktop Cabinet
Quantity
1 1
1 1
3 to 5 4 or 5 3 to 5
2 2
3 to 5 3 to 5
6 to 10 6 to 10
8 to 10
2
8
4
2 2
1 1
1 1
1 1
(L04-61072_R05)
Kit No. /
Assy. No.
1 1 1
1 1 1
4 or 5 3 to 5
2 2 2
RSED
R80-61033+ww
3 to 5
or
RPSAG_D
R80-61024+ww
or
6 to 10
RPSAG_S
R80-61025+ww
or
RCSBG or RCSLG
8 to 10
R80-61039+ww
2 2
8 8
4 4
2 2
2
RSED
R80-61034+ww
or
R80-61035+ww
1 1 1
or
RPSAG_S or RPSAG _D
1 1
R80-61028+hh+ww
or
R80-61029+hh+ww
1
or
RCSBG or RCSLG
R80-61037_+hh+ww
or
1 1
R80-61038_+hh+ww
1
1077
No.
(CL)
(FT)
(CL)
(FT)
(CL)
(FT)
Page 1 of 6
