leverage
Installation Guides
Section:
SCREENS
Description:
INFINITY DESK SCREEN
Infinity Desk Edge Screen (GXDL), Infinity Desk Edge Floor Screen (GXFL)
B
D

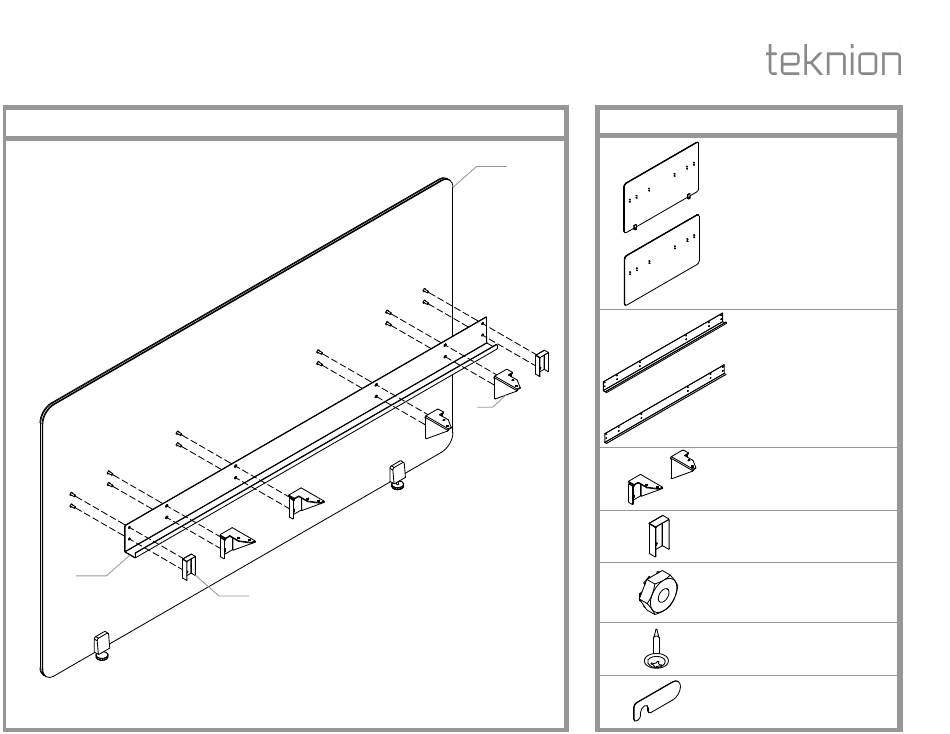

Part and Product Identification
A1
C
Date:
May 2020
Page No:
1 of 5
TLE_551
Rev. No: 0
A1 - Infinity Desk Edge Floor
Screen Assy.
(N03-2631) x 1
or
A2 - Infinity Desk Edge
Screen Assy.
(N03-2572) x 1
B1 - Infinity Desk Edge Screen
Bracket w/ Wire Management
(A16-6025) x 1
or
B2 - Infinity Desk Edge Screen
Bracket
(A16-6973) x 1
C - Fabric Screen
Mounting Bracket
(A16-6026) x 2 or 4
D - Infinity Screen Cover
(A16-6210) x 1
E - 1/4-20 Unc. Nut Hex
Keps Zinc
(E03-0059) x 8 or 12
F - #10 x 0.875" LG. Screw,
Quad. Pan Washer
(E07-0077) x 4
G - Plastic Spacer
(E07-0077) x 2
Advertisement
Related Manuals for Teknion Leverage Infinity Desk Edge Screen
Summary of Contents for Teknion Leverage Infinity Desk Edge Screen
- Page 1 leverage Installation Guides Section: SCREENS Date: May 2020 Page No: 1 of 5 Description: INFINITY DESK SCREEN TLE_551 Rev. No: 0 Infinity Desk Edge Screen (GXDL), Infinity Desk Edge Floor Screen (GXFL) Part and Product Identification A1 - Infinity Desk Edge Floor Screen Assy.
- Page 2 leverage Installation Guides Section: SCREENS Date: May 2020 Page No: 2 of 5 Description: INFINITY DESK SCREEN TLE_551 MOUNT BRACKETS TO SCREEN MOUNT SCREEN ASSEMBLY TO TABLE STEP 1: Mount Wire Management Bracket as shown above. STEP 2: Mount Fabric Screen Mounting Brackets with Nuts provided.
- Page 3 leverage Installation Guides Section: SCREENS Date: May 2020 Page No: 3 of 5 Description: INFINITY DESK SCREEN TLE_551 MOUNT BRACKETS TO SCREEN MOUNT SCREEN ASSEMBLY TO TABLE STEP 3: Mount Screen Cover to Screen as shown above with Nuts provided. STEP 4: Mount Screen Assembly to Table as shown above with screws provided.
- Page 4 leverage Installation Guides Section: SCREENS Date: May 2020 Page No: 4 of 5 Description: INFINITY DESK SCREEN TLE_551 ADJUST LEVELLER CORRECT TILTING ANGLE STEP 5: Adjust Levellers as shown above. NOTE: Check Tilting Angle as shown above.
- Page 5 leverage Installation Guides Section: SCREENS Date: May 2020 Page No: 5 of 5 Description: INFINITY DESK SCREEN TLE_551 ADJUSTMENT ON TILTING OUTWARD ADJUSTMENT ON TILTING INWARD STEP 6: If the Screen is tilting outward, add spacer to the front screws STEP 7: If the Screen is tilting inward, add spacer to the front screws...
