Promac JMDT-804516X-DRO Manual page 17

Index Part
No. No.
QS ........ JMDT804516XDRO -QS .... Main power switch .................... JCH13-20 20/41000 ............................ AC21A 380V 20A
QF1 ...... JMDT804516XDRO -QF1 .. Circuit breaker ........................... JCM6-25............................................ GV2ME14C/6-10A
QF2 ...... JMDT804516XDRO -QF2 .. Circuit breaker ........................... DZ47-63 .................................................... C2 230/400V
QF3 ...... JMDT804516XDRO -QF3 .. Circuit breaker ........................... DZ47-63 .................................................... C2 230/400V
TC ........ JMDT804516XDRO -TC ..... Transformer ............................... JBK5 ............................................................... 400V 24V
SB1....... JMDT804516XDRO -SB1 ... Emergency stop button ............. LA125H-BS542 .........................................AC15 240V 3A
SB2....... JMDT804516XDRO -SB2 ... Power ON button ....................... LA125J-11D/206A ................................................ AC24V
SB3....... JMDT804516XDRO -SB3 ... Forward ...................................... LA125H-BA31 ..........................................AC15 240V 3A
SB4....... JMDT804516XDRO -SB4 ... Reverse ...................................... LA125H-BA31 ..........................................AC15 240V 3A
SB5....... JMDT804516XDRO -SB5 ... Stop button ................................ LA125H-BA42 ..........................................AC15 240V 3A
SQ1 ...... JMDT804516XDRO -SQ1 .. Spindle Guard Switch ................. KW-7 ............................................................... 16A 125V
SQ2 ...... JMDT804516XDRO -SQ2 .. Open the door and power off .... JWM6-11 TH ............................................. CE RoHS PICC
SQ3 ...... JMDT804516XDRO -SQ3 .. Tapping micro switch ................. KW3-0Z ........................................................... 16A 125V
SQ4 ...... JMDT804516XDRO -SQ4 .. Tapping limit switch ................... KW3-0Z ........................................................... 16A 125V
KM1 ..... JMDT804516XDRO -KM1 . Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
KM2 ..... JMDT804516XDRO -KM2 . Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
KM3 ..... JMDT804516XDRO –KM3. Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
KA ........ JMDT804516XDRO -KA .... Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
SA ........ JMDT804516XDRO -SA ..... Cooling pump button ................. LA125H-BD21 ..........................................AC15 240V 3A
SA1 ...... JMDT804516XDRO -SA1 ... Drilling / Tapping Switch ............ LA125H-BD33 ..........................................AC15 240V 3A
KT......... JMDT804516XDRO -KT ..... Time relay .................................. H3Y-2 ............................................................. 24VAC 5A
M1 ....... JMDT804516XDRO -M1 ... Motor ......................................... YVF90L-4............................... 400V/5-100Hz/3PH 1.5kw
FAN ..... JMDT804516XDRO -FAN .. Motor ......................................... G-90 ......................................... 230V/50Hz/1PH 0.03kw
M3 ...... JMDT804516XDRO -M3 ... Motor ......................................... DB-12 ....................................... 400V/50Hz/3PH 0.04kw
DRO .... JMDT804516XDRO -DRO.. DRO ............................................ SDS6 .......................................................... AC100-240V

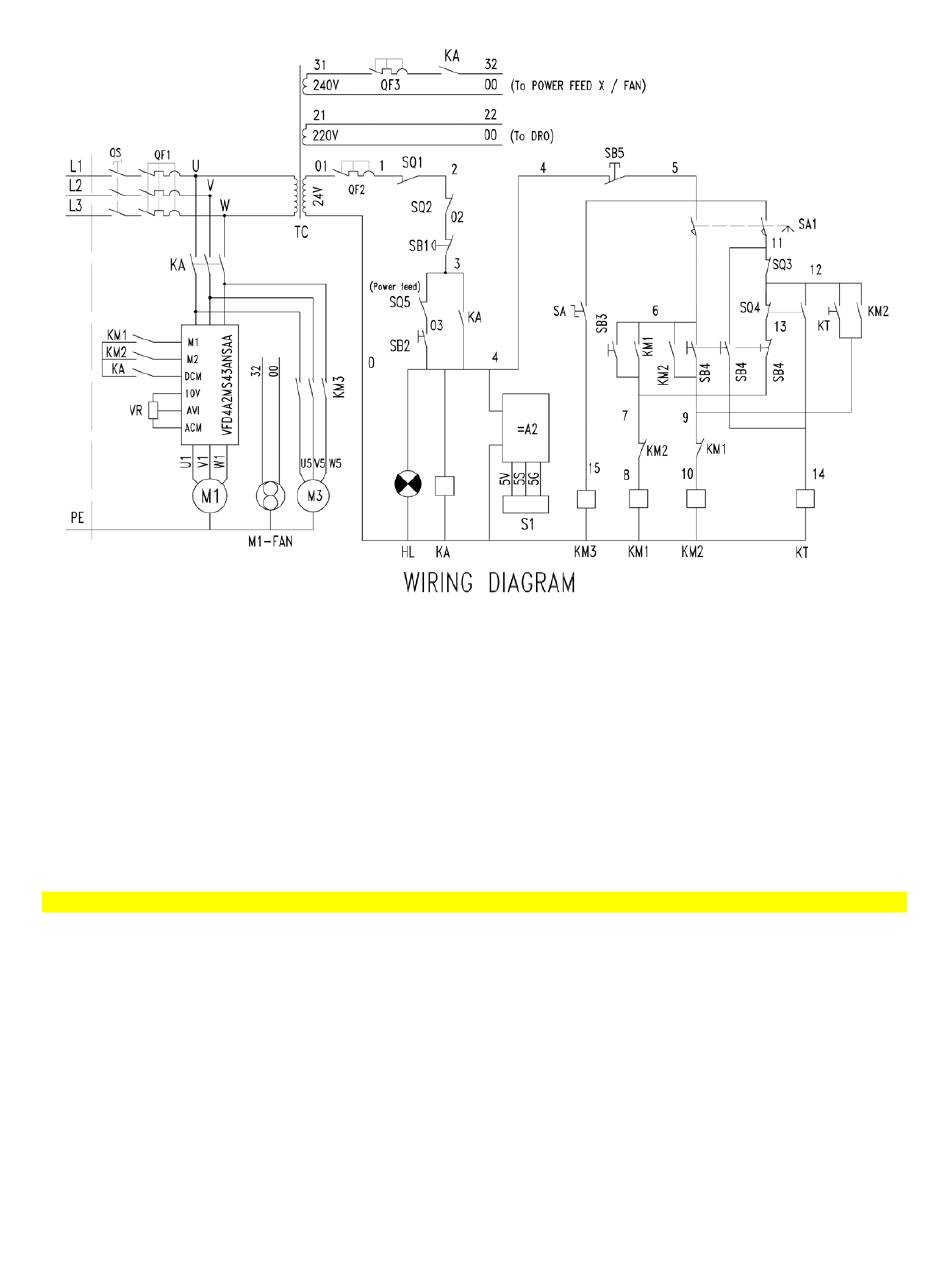

JMDT-804516X-DRO Wiring Diagram
Description Type Spec.
