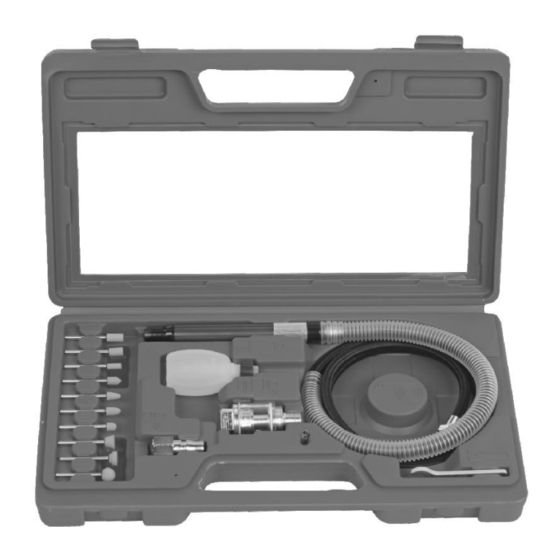

- Page 1 AIR MICRO GRINDER KIT CT3073 ORIGINAL INSTRUCTIONS Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. SAVE THESE INSTRUCTIONS AND PRECAUTIONS. READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
-
Page 2: Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: AIR MICRO GRINDER Model: CT3073 Applicable EC Directives: EC Machinery Directive 2006/42/EC 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual. Wear hearing protection. Wear safety goggles. - Page 4 of inattention while operating the tool increases the risk of injury to persons. 2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts.
-
Page 5: Air Source
AIR SOURCE Never connect to an air source that is capable of exceeding 200 psi. Over pressurizing the tool may cause bursting, abnormal operation, breakage of the tool or serious injury to persons. Use only clean, dry, regulated compressed air at the rated pressure or within the rated pressure range as marked on the tool. -
Page 6: Specifications
6. Grip the tool as lightly as possible (while still maintaining a secure hold). Let the tool do the work. 7. To reduce vibration, maintain tool as explained in this manual. If abnormal vibration occurs, stop immediately. SPECIFICATIONS Maximum air pressure: 90psi Free speed: 54,000rpm Collet size: 1/8"... - Page 7 even if the air hose is ruptured. The shut-off valve should be a ball valve because it can be closed quickly. Note: if an automatic oiler system is not used, add a few drops of pneumatic tool oil to the airline connection before operation.
- Page 8 OPERATING INSTRUCTIONS WARNING: TO PREVENT SERIOUS INJURy FROM ACCIDENTAL OPERATION: Turn off the tool, detach the air supply, safely discharge any residual air pressure in the tool, and release the Trigger before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY: Do not adjust or tamper with any control or component in a way not specifically explained within this manual.
-
Page 9: User Maintenance Instructions
CAUTION! TO PREVENT INJURY FROM TOOL OR ACCESSORY FAILURE: Do not exceed the tool's maximum air pressure rating. If the tool still does not have sufficient force at maximum pressure and sufficient airflow, then a larger tool may be required. 9. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Likely Solutions Decreased output. 1. Not enough air pressure and/ 1. Check for loose connections and make sure that air or air flow. supply is providing enough air flow (CFM) at required 2. Obstructed on-off switch. pressure (PSI) to the tool's air inlet. -
Page 11: Assembly Diagram And Parts List
ASSEMBLY DIAGRAM AND PARTS LIST INDEX NO. DESCRIPTION INDEX NO. DESCRIRTION CLAMPING NUT BALL BEARING COLLET INTAKE PLATE FRONTCOVER SLEEVE COLLET FONDATION INTAKE STEELTUBE BALLBEARING HOSE PLUG SPACER LATERAL DISC SLIDING KNOB CYLINDER 0 RING ROTOR 0 RING FIBRE VANES SCREW REAR END HOLDER BEARING PLATE... - Page 12 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
