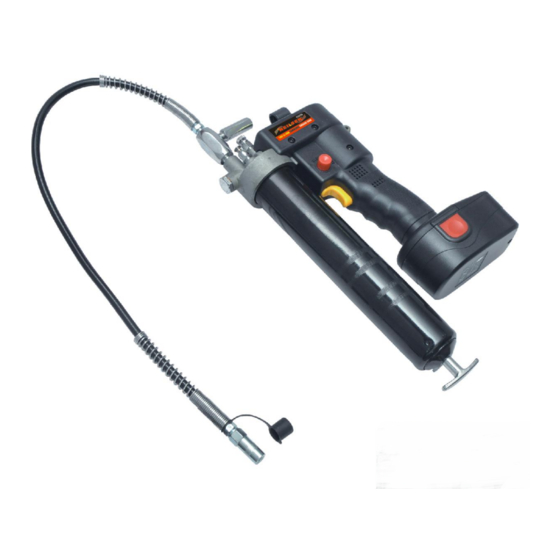

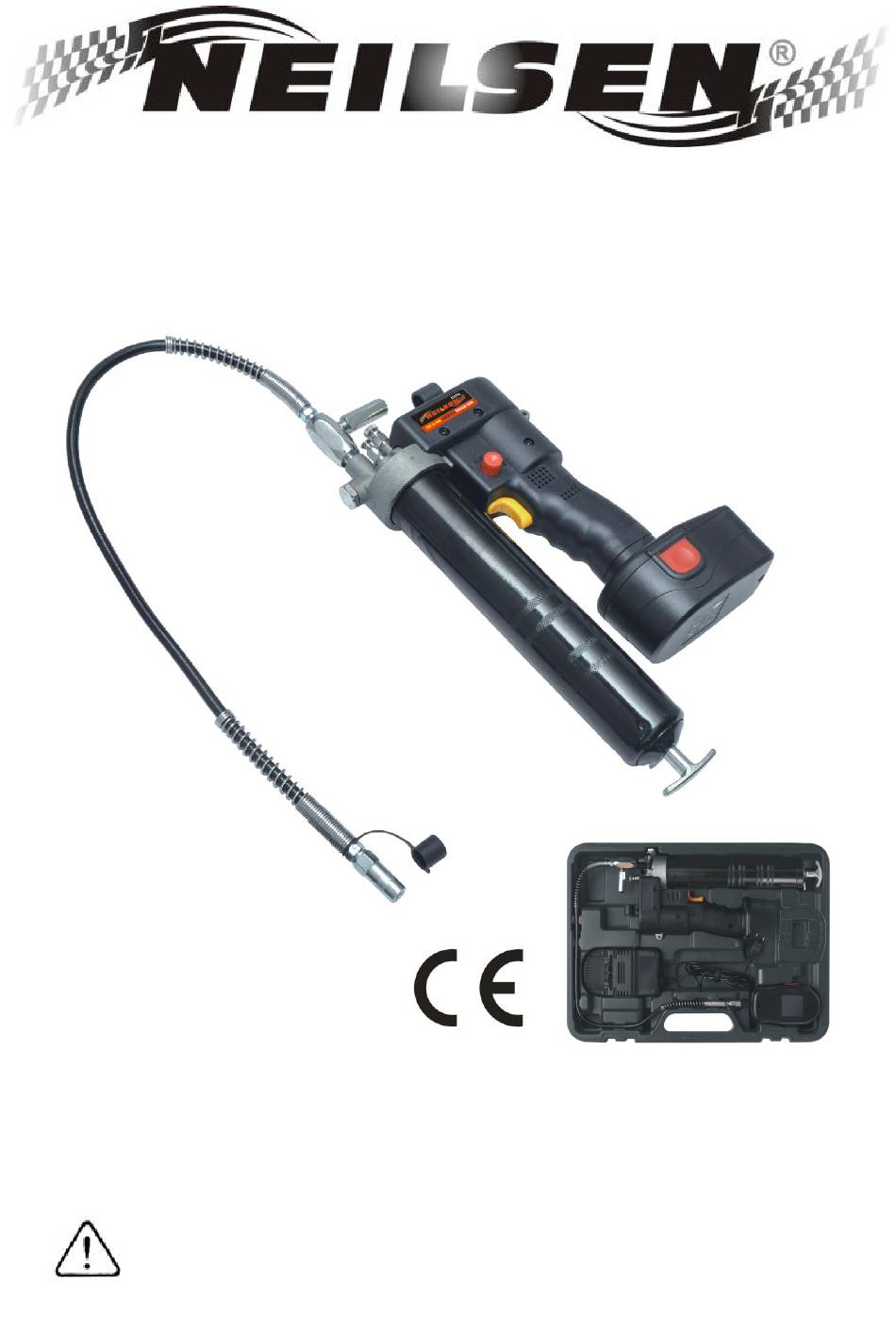

- Page 1 18V LI-ION CORDLESS GREASE GUN CT4790 ORIGINAL INSTRUCTIONS Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. SAVE THESE INSTRUCTIONS AND PRECAUTIONS. READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
-
Page 2: Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 18V LI-ION CORDLESS GREASE GUN Model: CT4790 Applicable EC Directives: EC Low Voltage Directive 2014/35/EU EC Directive of Electromagnetic Compatibility 2014/30/EU... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Carefully read these operating instructions thoroughly before unpacking and operating this Rechargeable Grease Gun. • A battery operated Rechargeable Grease Gun with a separate battery pack must be recharged only with the specified battery charger. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery. - Page 4 OPERATION Prime the rechargeable grease gun after each refill or grease cartridge change. Prime the gun before using it to lubricate grease points. CAUTION Air pockets in the lubricant cartridge will cause the gun to lose its prime. To prime, operate the gun until grease flows from the hose. Otherwise, you can use the vent valve and the release grease valve to expel air pockets.
- Page 5 HOW TO READ THE BATTERY CAPACITY DISPLAY The LCD display shows the battery capacity whenever the button is pressed. It has 5 segments, each one representing 20% of the full capacity, i.e. three segments lit in the LCD display indicates the battery is at 60% of its charge (See Figure 1). BATTERY CAPACITY DISPLAY (Figure 1) LOCKING TRIGGER (Figure 2) Locking Button...
- Page 6 Figure 3 Figure 4 LCD Display Grease Release Valve Filler Nipple HOW TO FILL THE GUN WITH A FILLER PUMP Insert the gun filler nipple into the filler pump socket. Operate the filler pump to fill the container. Stop the filler pump when the follower rod extends to approximately 8 inches (20 cm).
-
Page 7: Troubleshooting
Figure 6 ITEM Interference Blanker Motor Kit Gear Assembly Kit Yoke Block Plunger Grease Release Valve Filler Nipple Vent Valve Circuit Breaker (10) Jiggle Switch (11) Button (12) Check Valve Kit (13) Battery Capacity Display TROUBLESHOOTING CONDITION POSSIBLE CAUSE CORRECTIVE ACTION •...
