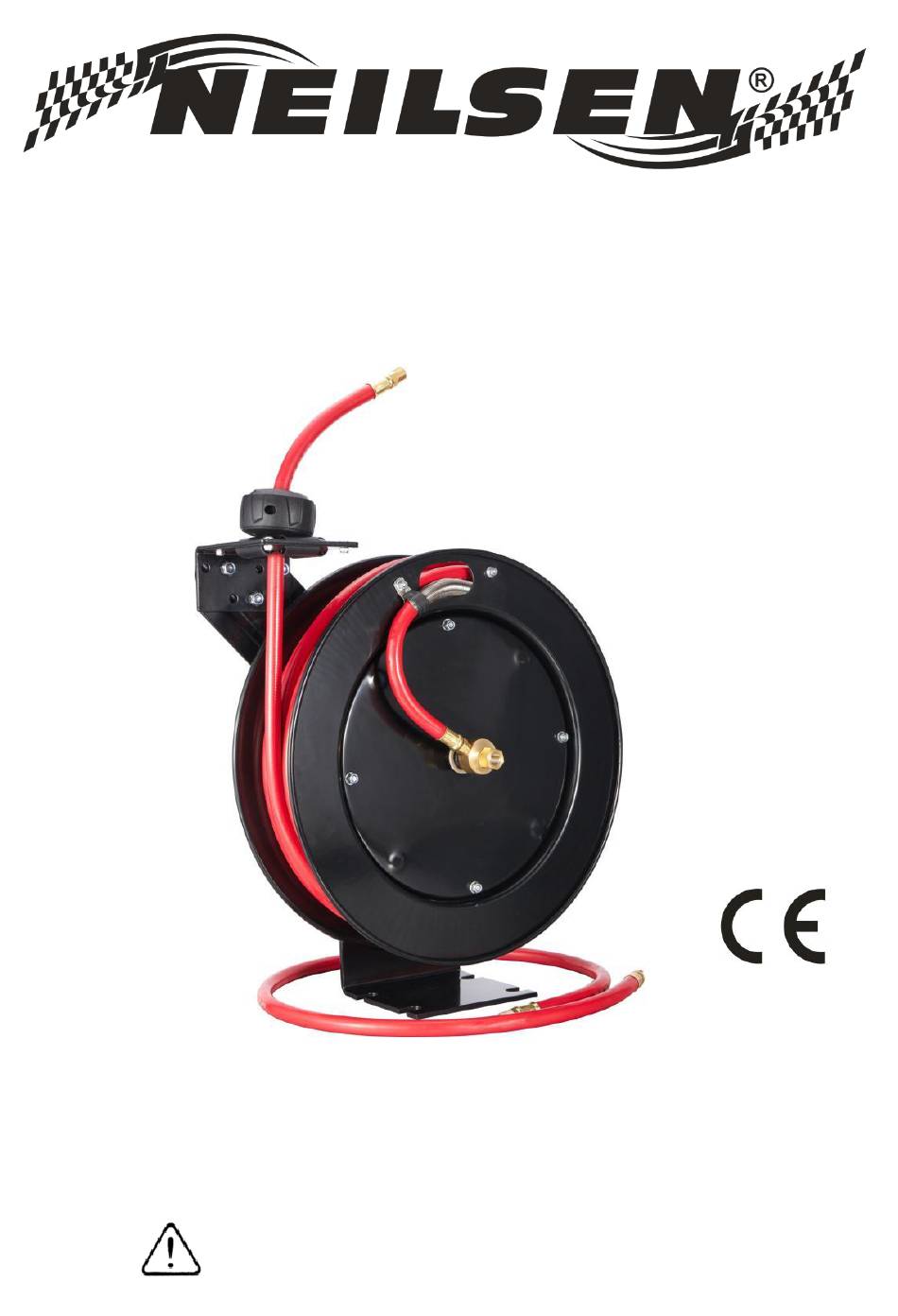

- Page 1 AUTO RETRACTABLE AIR HOSE REEL 1/2” x 50FT CT1535 Ref no. ZYM07-1-20 ORIGINAL INSTRUCTIONS Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. SAVE THESE INSTRUCTIONS AND PRECAUTIONS. READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
- Page 2 In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: AUTO RETRACTABLE AIR HOSE REEL Model: CT1535 (Ref no.ZYM07-1-20) Applicable EC Directives: EC Machinery Directive 2006/42/EC Harmonized standards EN ISO 12100:2010 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
- Page 3 ●Never use oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for the tool. Such gases are capable of explosion and serious injury to persons. SPECIFICATIONS HOSE WORKING MODEL AIR HOSE SIZE LENGTH PRESSURE CT1535 50FEET 300psi 1/2”...
- Page 4 COMPONENTS AND CONTROLS 1. Set-Up REPOSITIONING BRACKET 1.Remove the Bolts on the Support Post and reposition to move the guide rollers, if needed, for the desired mounting location (wall, floor or ceiling). 2.Replace the Bolts and tighten. MOUNTING REEL 1.Choose a mounting location that is free of electrical wiring or other obstructions, and is sturdy enough to support the weight of the Reel and hose as well as the force used to extend and retract it.
- Page 5 GENERAL OPERATING INSTRUCTIONS 1.Check the Wheel operation by slowly pulling the Hose out. You should hear a clicking noise. 2.T o lock the Hose, pull it out a minimum of 1/2 revolution and it will stay locked after the first, second, or third click. 3.T o unlock, slowly pull until the clicking stops, and let it retract until the Hose Stopper hits the Hose Guide.
- Page 6 operation. 2.AFTER EACH USE, re-wind the hose onto the reel and wipe the Hose Reel clean with a dry cloth. WARNING • Internal spring is not user serviceable or user-replaceable. HOSE REPLACEMENT 1.Remove the Hose Stopper from the hose and set aside. 2.Pull out the old Hose and securely lock the Hose Reel.
