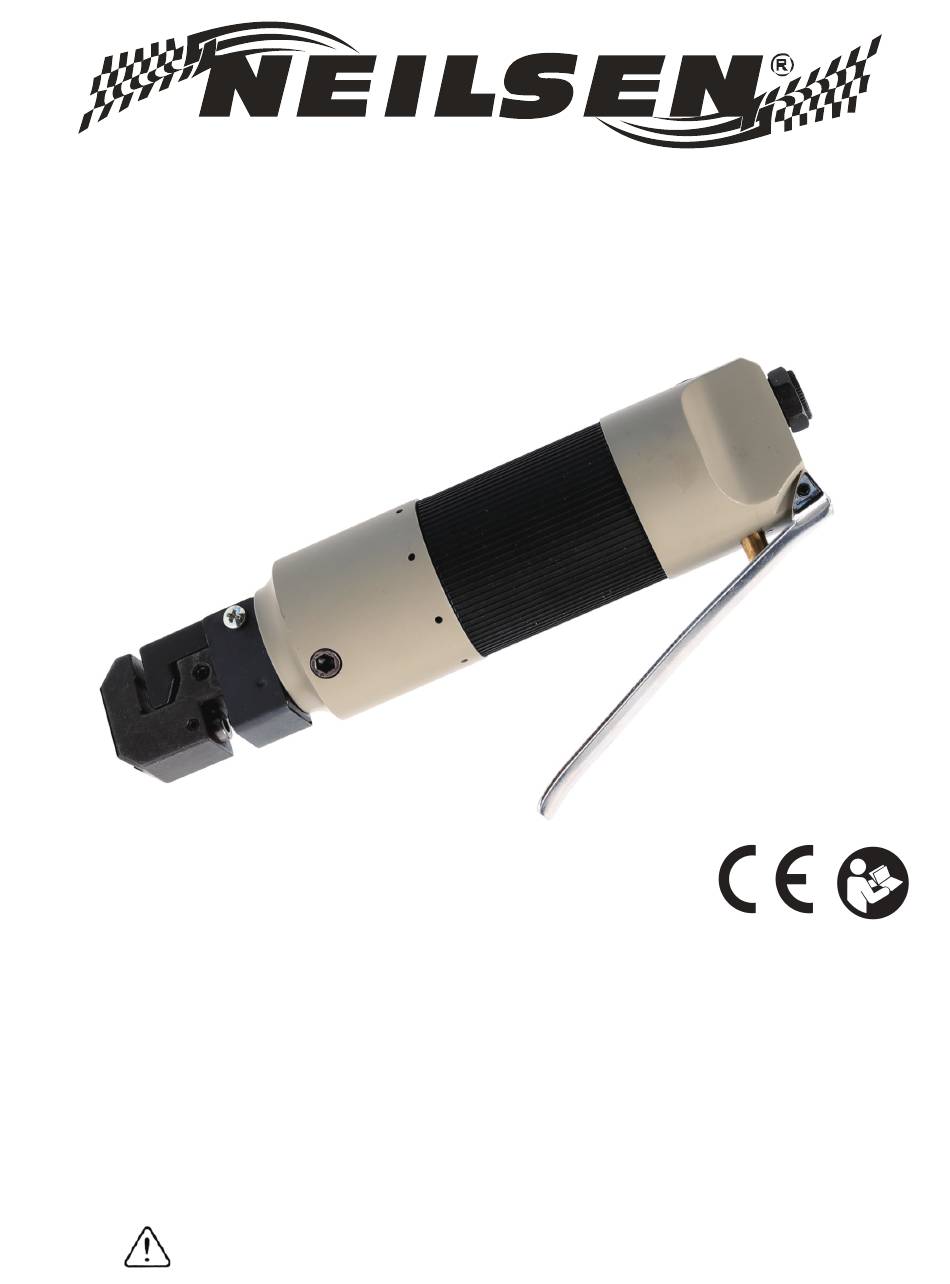

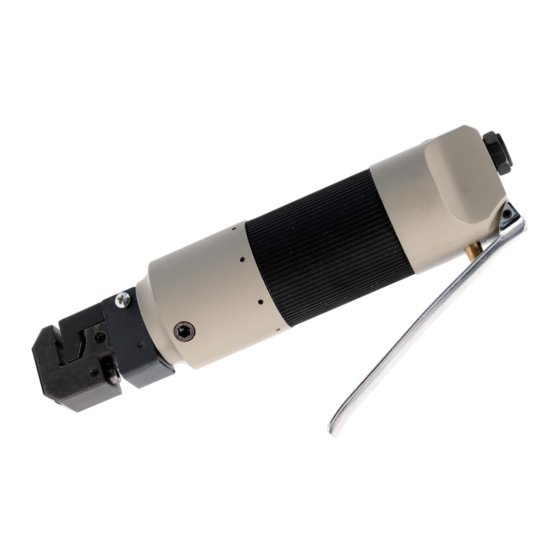

- Page 1 AIR PUNCH/FLANGE TOOL CT5271 ORIGINAL INSTRUCTIONS Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. SAVE THESE INSTRUCTIONS AND PRECAUTIONS. READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
- Page 3 In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: AIR PUNCH/FLANGE TOOL Model: CT5271 Applicable EC Directives: EC Machinery Directive 2006/42/EC Harmonized standards EN ISO 12100 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
- Page 4 SPECIFICATIONS Working pressure: 90 PSI Average air consumption: 4 CFM Punch hole dia: 5mm Punching hole thickness: 0.8-1.2mm Air inlet: 1/4 “ WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may result in serious injury. SAVE THESE INSTRUCTIONS ASSEMBLY INSTRUCTIONS NOTE: For additional information regarding the parts listed in the following pages, refer to...
- Page 5 NOTE: For best service you should incorporate an oiler, regulator, and in-line filter (none of which are included) as shown in Figure 1. NOTE: If you are not using an automatic oiler system as shown in Figure 1, add a few drops of pneumatic tool oil (not included) to the airline connection.
- Page 6 inspection, Maintenance, and cleaning warning! Make sure the Throttle Lever (20) is in its “OFF” position and that the Air Punch/Flange Tool is disconnected from its air supply before performing any inspection, maintenance, or cleaning procedures. before each use, inspect the general condition of the tool. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, and any other condition that may affect its safe operation.
- Page 7 PARTS LIST Part Description Q’ty Part Description Q’ty Clamp Throttle Lever Set Screw Spring Pin Punch Die O-ring Guide Bushing Push Rod Cup Spring Spring Punch Valve Screw Spring Plate Guard O-ring Anvil Screw Oil Seal O-ring Support Ring Support Ring O-ring Hydraulic Piston Oil Plug...
- Page 8 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
