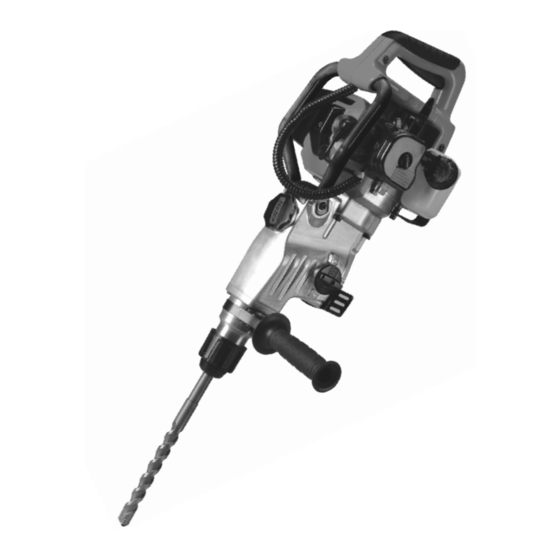

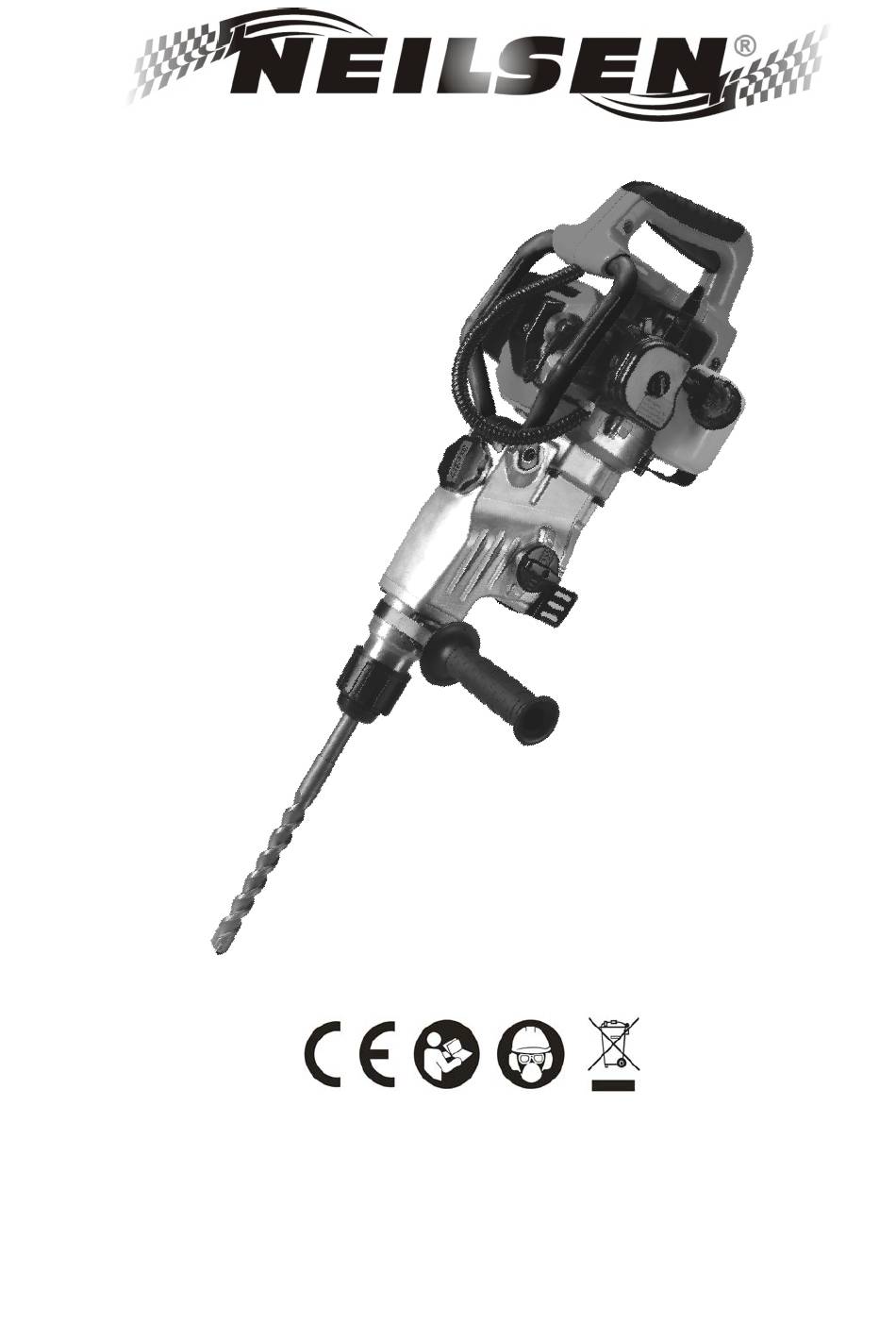

- Page 1 GASOLINE JACK HAMMER CT4342 ORIGINAL INSTRUCTIONS Read the operating instructions thoroughly before work and keep it for future reference. Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
-
Page 2: Ec Declaration Of Conformity
EC Directive based on its design and type, as brought into circulation by us. In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: GASOLINE JACK HAMMER Model: CT4342 Applicable EC Directives: EC-Machinery Directive 2006/42/EC EC- Directive of Electromagnetic Compatibility：... - Page 3 User Manual For your safety, please follow the instructions on the safe operation of the rules of operation and technical maintenance, or will cause harm to your personal safety or damage the machine. Symbols Read instruction manual and follow the warning and safety precautions! Particular care and caution! Wear protective helmet, eye and ear...
- Page 4 Name of major part Parts Name Parts Name Parts Name Slide clamp set Gera box assy Air filter Ventilation Door Stop switch Throttle switch Start handle Fuel tank Fuel tank bracket Fuel oil bubble Gear box cover Bend plate Adjusting knob Joint lever Muffler Main handle...
- Page 5 Instruction of safe operation 2.1 Work place 2.1.1 Keep the work place open and bright. Chaos, crowded and dark field can cause accidents. 2.1.2 Don't in flammable and explosive, such as a flammable liquid, gas or dust environment or use the machine operation.
- Page 6 2.3 Operating Mode Time to switch from the hammer, hammer drill, drill function knob in shown in figure 3 ", "rotation has received the required operating mode. (note: must select operation mode under the condition of the engine stopped.) Hammer Drill Image 3 III Main use and feature...
-
Page 7: Stop Machine
V Start Before starting the new machine. Repeat the transparent cup is full oil fuel oil bubble (image 3), makes the carburetor fill it up with fuel. Choke(Close when cold start) Start handle Fuel bubble Image 4 Machine lie flat on the ground, one hand operation handle, another hand quickly pull starter handle 50 centimeters. -
Page 8: Technical Maintenance
Loosen the throttle handle, the machine idle for 3 to 5 minutes Down by the flameout switch button until the engine stalled. Flame out switch position as shown in figure 1 VIII Technical maintenance 8.1 Air Filter Check the air filter regularly. Air filter cartridge dust jams will reduce engine power and shorten the service life of the cylinder. - Page 9 Failure analysis and troubleshooting methods Problems analysis and solving Example1: difficulties in starting engine in cooling state. Whether the spark plug is moisture. →Dry the igniter plug ↓ Whether the spark plug produces electric spark →replace the igniter plug ↓ Too much fuel absorbed →lessen the fuel supply Example 2: Difficulties in restarting after a sudden stop...
- Page 10 Product key data Engine type Single cylinder, air cooling, 2 stroke Fuel mixing oil(gasoline 25, two-stroke engine oil 1) Fuel tank capacity 0.9L Weight 10.5Kg Displacement 32.7cm Max torque and speed 1.5N.m/5000r/min Impact frequence 3200 BPM Consumption rate ≤0.50L/h Impact energy Maximum engine power 1.0kW/9000/min Maximum engine speed...
-
Page 11: Maintenance Cycle
Maintenance Cycle The following Data are given common use of the product. Suppose it is in worse working condition, such as thick dust in the air or much longer work hours for Crusher, the maintenance cycle should be shortened correspondingly. outlook check (state, stabilities of √... - Page 12 Part list of gasoline Jack hammer & drill Part Name Part Name Part Name deep groove ball front cover spring washer6 bearing6000 round wire snap reduction case reduction gearbox rings for shaft32 cover check ring Gease cover Bend plate Hexagon socket Slide clamp set Exhaust sponge head cap screws...
- Page 13 Cross trough pan head self-tapping Washer Transform head screw - F typeST4.2X16 Rubber O seal Engine Stop retainer ring8X1.8 Switch Allen flat end set plastic jacket left handle screwsM5X16 23 seal ring 68x59x2.5 cone tooth-9-1.75 Left joint lever Big plain flat key4X14 straight pin6X22 washer68x50x2...
- Page 15 XIII Part list of gasoline engine Part Name Part Name Cross slot combination of pan 50-1 50-29 Fan cover head screw M5×20 Cross slot combination of 50-2 Starter 50-30 pan head screw M5×12 50-3 Start aluminum pad 50-31 Muffler cover Hexagon bolts with flange 50-4 Hexagon nut M8×1.25...
- Page 17 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
