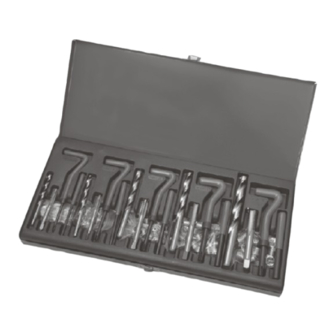

131PIECE THREAD REPAIR SET
CT2266
INSTRUCTION MANUAL
IMPORTANT:
These instructions accompanying the product are the original instructions. This
document is part of the product, keep it for the life of the product passing it on to
any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Advertisement
Table of Contents
Related Manuals for Neilsen CT2266
Summary of Contents for Neilsen CT2266

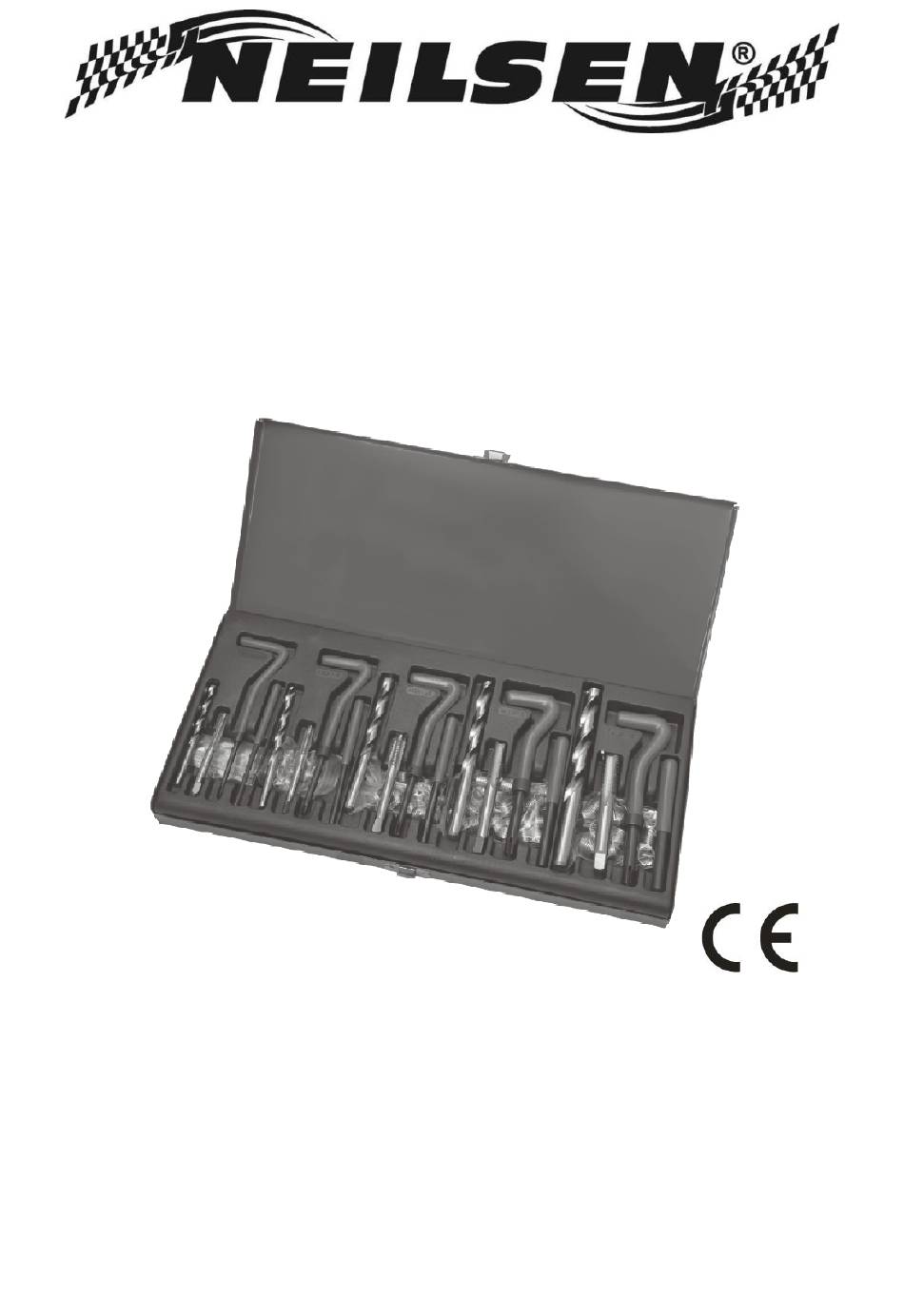

- Page 1 131PIECE THREAD REPAIR SET CT2266 INSTRUCTION MANUAL IMPORTANT: These instructions accompanying the product are the original instructions. This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before assembling, operating or maintaining this product.
- Page 2 1. SPECIFICATION 5pcs Installation Tools 5pcs Break Pin Tools 5pcs Twist Drills 1pc Hex Key 5pcs Taps 110pcs wire thread inserts: M15 X 0.8 X 6.7mm M6 X 1.0 X 8.0mm M8 X 1.25 X 10.8mm M10 X 1.5 X 13.5mm M12 X 1.75 X 16.3mm Warning: Wear approved safety glasses and ear defenders.
- Page 3 1.Twist Drill 5.2mm 2.Screw Tap M5x0.8 3.Installation Tool 4.Breaking Pin Tool 5.Twist Drill 6.3mm 6.Screw Tap M6x1.0 7.Installation Tool 8.Breaking Pin Tool 9.Twist Drill 8.3mm 10.Screw Tap M8x1.25 11.Installation Tool 12.Breaking Pin Tool 13.Twist Drill 10.5mm 14.Screw Tap M10x1.5 15.Installation Tool 16.Breaking Pin Tool 17.Twist Drill 12.5mm 18.Screw Tap M 12x1.75...
- Page 4 5. USING THE TOOL 1.Drill out the damaged thread using the correctly sized twist drill bit provided. 2.Tap drilled hole using screw tap provided. 3.Load thread insert into installation tool. 4.Screw insert into threaded hole. 5.Remove the tag from the using the breaking pin tool. 6.Thread is repaired and ready to use.
- Page 5 Do not incinerate. During decommissioning of the equipment, certain hazards should be understood and avoided: Only with the line pressure released shall the equipment be disassembled. 7. EXPLANATION OF SYMBOLS WARINING! First read the instruction manual. Wear safety glasses and ear protection. Wear gloves.
- Page 6 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
