- Page 1 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA T: + 1-609-256-4700 F: +1-609-228-4373 info@koamtac.com www.koamtac.com KDC480 & KDC485 Quick Guide ©2020-2021 KOAMTAC, Inc. QG_KDC480/485_20210818...
-
Page 2: Table Of Contents
Bluetooth Pairing ..............................3 Bluetooth Profiles Explained ......................... 3 Pairing a KDC480/485 to your smart device ....................3 Bluetooth Pairing a KDC480-BLE/485-BLE to your smart device with special barcodes ......4 Usage ..................................6 Using Keyboard Wedge (HID Keyboard) ..................... 6 Using KTSync –... -
Page 3: Product Introduction

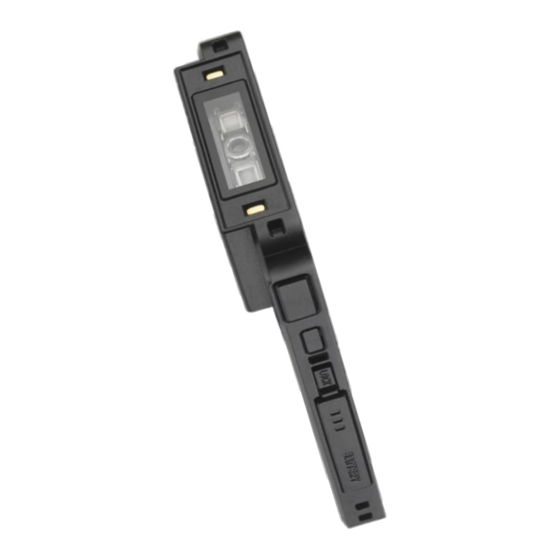

Quick Guide Product Introduction The KDC480 Bluetooth barcode scanner is available with 1D Laser, 1D CCD, or 2D Imager scan engines. The KDC485 Bluetooth barcode scanner is available with an angled 1D Laser or 2D Imager scan engines. 1.1 KDC480/485 Diagram *KDC485 is identical with the exception of an angled scan window 1.2 How to turn on and off... -
Page 4: Bluetooth Pairing
The KDC only transmits data to the host device. Note: HID inputs data directly into an application. SPP requires the KOAMTAC SDK to input data into an application. To gain access to the SDK, please complete the form here: https://www.koamtac.com/sdk/... -
Page 5: Bluetooth Pairing A Kdc480-Ble/485-Ble To Your Smart Device With Special Barcodes
4. Check the list of available Bluetooth devices on your host device. 5. From the list, select KDC480/485 listed by serial number in brackets that matches the serial number found on the back side of the KDC480/485. 6. In HID mode, KDC480/485 is now ready to use. - Page 6 In SPP Profile for iOS, the KDC is NOT listed on your host device, so you should launch KTSync or your application and select the KDC480-BLE/485-BLE listed by serial number in brackets that matches the serial number found on the back side of the KDC480-BLE/485-BLE. KDC480-BLE/485-BLE will beep upon connection and display “Bluetooth Connected”...
-
Page 7: Usage
KDC480 & KDC485 Quick Guide Usage 3.1 Using Keyboard Wedge (HID Keyboard) This option is only available using Bluetooth connection with HID profile. Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any barcode and it will populate in the text field. -
Page 8: Using Ktsync Keyboard - Android
KDC480 & KDC485 Quick Guide 3.3 Using KTSync Keyboard – Android Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual Keyboard >... -
Page 9: Using Ktsync Keyboard - Ios
KDC480 & KDC485 Quick Guide 3.4 Using KTSync Keyboard – iOS Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard... -
Page 10: Using Other Developed Applications With Sdk - Android/Ios
Quick Guide 3.5 Using other developed applications with SDK – Android/iOS A Software Development Kit (SDK) for Android and iOS is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with a KDC scanner. It’s easy to request the SDK from the... -
Page 11: Product Specifications
KDC480 & KDC485 Quick Guide Product Specifications Design Standard SmartSled KDC480: 2.56" x 4.13" x 0.62" (65 mm x 105 mm x 15.8 mm) Size Physical KDC485: 2.56" x 4.13" x 0.94" (65 mm x 105 mm x 24 mm) KDC480: 3.07 oz (87g) - Page 12 KDC480 & KDC485 Quick Guide Laser > 20,000 # of scans CCD > 15,000 (10 sec interval) Imager > 10,000 Laser (L): 1.97” to 18.11” (50 to 460 mm) Laser(S): 1.40” to 52.00” (30 to 1320 mm) Scan Range CCD (D): 1.97” to 18.11” (50 to 460 mm) (20mil Code39) Imager (C): 2.36”...
