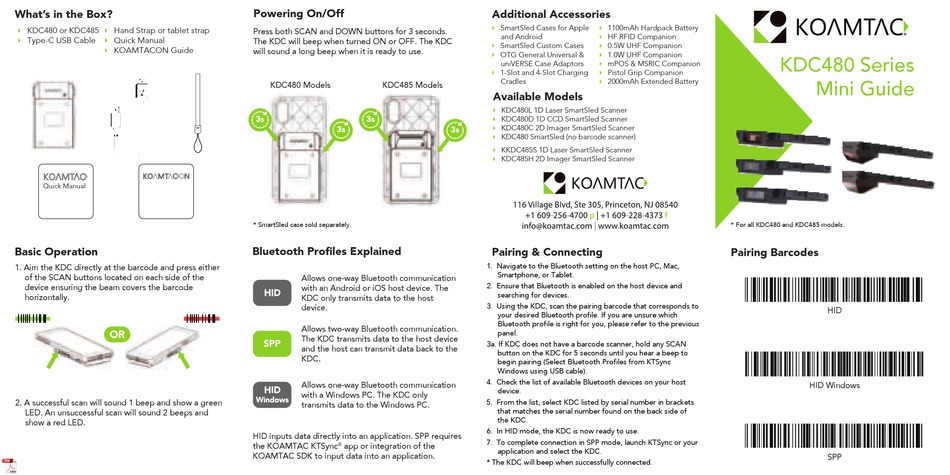

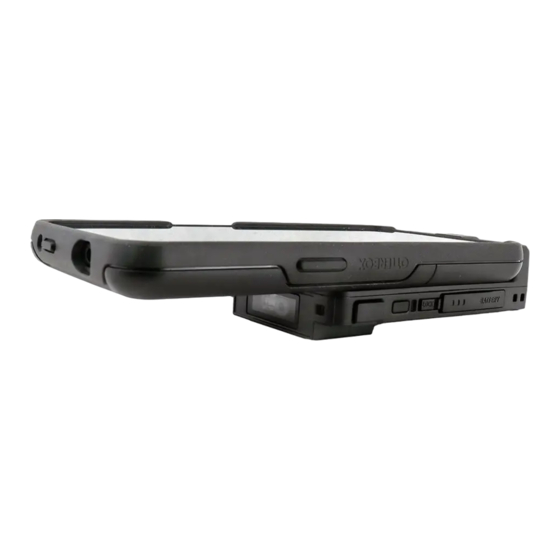

KoamTac KDC480 Series Mini-Manual

What's in the Box?
• •
KDC480 or KDC485 Hand Strap or tablet strap
• Type-C USB Cable • Quick Manual
• KOAMTACON Guide
Quick Manual
Basic Operation
1. Aim the KDC directly at the barcode and press either
of the SCAN buttons located on each side of the
device ensuring the beam covers the barcode
horizontally.
OR
2. A successful scan will sound 1 beep and show a green
LED. An unsuccessful scan will sound 2 beeps and
show a red LED.
Powering On/Off
Press both SCAN and DOWN buttons for 3 seconds.
The KDC will beep when turned ON or OFF. The KDC
will sound a long beep when it is ready to use.
KDC480 Models KDC485 Models
3s 3s
3s
* SmartSled case sold separately.
Bluetooth Profiles Explained
Allows one-way Bluetooth communication
with an Android or iOS host device. The
KDC only transmits data to the host
device.
Allows two-way Bluetooth communication.
The KDC transmits data to the host device
and the host can transmit data back to the
KDC.
Allows one-way Bluetooth communication
with a Windows PC. The KDC only
transmits data to the Windows PC.
HID inputs data directly into an application. SPP requires
®
the KOAMTAC KTSync app or integration of the
KOAMTAC SDK to input data into an application.
Additional Accessories
• SmartSled Cases for Apple • 1100mAh Hardpack Battery
and Android • HF RFID Companion
• SmartSled Custom Cases • 0.5W UHF Companion
• OTG General Universal & • 1.0W UHF Companion
uniVERSE Case Adaptors • mPOS & MSRIC Companion
• 1-Slot and 4-Slot Charging • Pistol Grip Companion
Cradles • 2000mAh Extended Battery
Available Models
• KDC480L 1D Laser SmartSled Scanner
• KDC480D 1D CCD SmartSled Scanner
• KDC480C 2D Imager SmartSled Scanner
3s
• KDC480 SmartSled (no barcode scanner)
• KKDC485S 1D Laser SmartSled Scanner
• KDC485H 2D Imager SmartSled Scanner
Pairing & Connecting
1. Navigate to the Bluetooth setting on the host PC, Mac,
Smartphone, or Tablet.
2. Ensure that Bluetooth is enabled on the host device and
searching for devices.
3. Using the KDC, scan the pairing barcode that corresponds to
your desired Bluetooth profile. If you are unsure which
Bluetooth profile is right for you, please refer to the previous
panel.
3a. If KDC does not have a barcode scanner, hold any SCAN
button on the KDC for 5 seconds until you hear a beep to
begin pairing (Select Bluetooth Profiles from KTSync
Windows using USB cable).
4. Check the list of available Bluetooth devices on your host
device.
5. From the list, select KDC listed by serial number in brackets
that matches the serial number found on the back side of
the KDC.
6. In HID mode, the KDC is now ready to use.
7. To complete connection in SPP mode, launch KTSync or your
application and select the KDC.
* The KDC will beep when successfully connected.
KDC480 Series
Mini Guide
* For all KDC480 and KDC485 models.
Pairing Barcodes
HID
HID Windows
SPP
