Summary of Contents for Jet JSB-10H

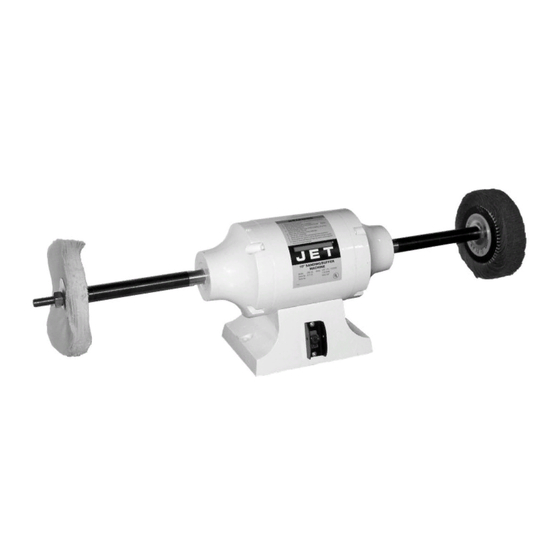

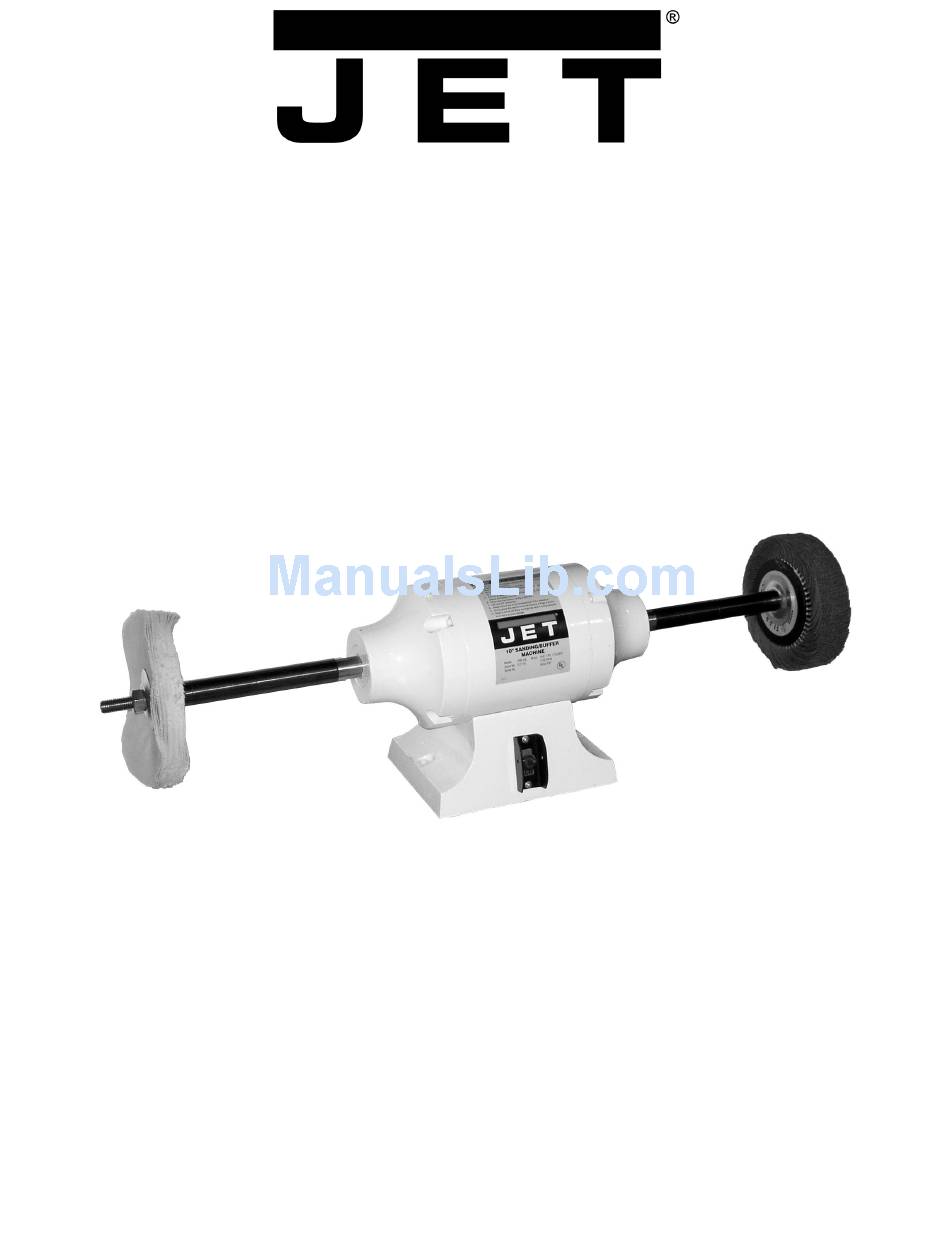

- Page 1 OWNER'S MANUAL JSB-10L/H Buffer & Sander WMH TOOL GROUP Consumer/Light Industrial Products Division P.O. BOX 1349 Auburn, WA 98071-1349 Ph: 1-800-274-6848 Fax: 1-800-274-6840 E-mail: jet@wmhtoolgroup.com www.wmhtoolgroup.com M-577110 01/03 Copyright © WMH Tool Group...
-
Page 2: Warranty
Authorized Repair Stations located throughout the United States can give you quick service. In most cases, any one of these WMH Tool Group Repair Stations can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET, Performax, Wilton, or Powermatic tools. -
Page 3: Warnings
23. Do not use this JET buffer/sander for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. -
Page 4: Grounding Instructions
Grounding Instructions Caution: This tool must be grounded while in use to protect the operator from electric shock. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. -
Page 5: Table Of Contents
Introduction The JET JSB-10 buffer/sander you have purchased is a high quality tool that will give you years of superior service. You will get maximum performance and enjoyment from your new buffer/sander if you would take a few moments now to review the entire manual before beginning assembly and operation. -
Page 6: Contents Of The Shipping Container
WARNING Read and understand the entire contents of this manual before attempting assembly or operation! Failure to comply may cause serious injury! Contents of the Shipping Container 1. Buffer/Sander 4. Flange Washers 5/8" ID 4. Flange Washers 1” ID 2. Bushing 1/4” 2. -
Page 7: Buffing And Polishing
Sand in the direction of the wood grain. Sanding and Buffing Accessories Jet offers a wide variety of sanding, buffing and polishing accessories for use with this machine. Visit www.wmhtoolgroup.com and go to JET Woodworking Accessories to view the options. -
Page 8: Part's Breakdown And Part's List
Breakdown for the JSB-10 Sanding/Buffing Machine... - Page 9 Parts List for the JSB-10 Sanding/Buffing Machine Index Part 1...JSB10-1 ...Motor Housing..1 2...JSB10-2 ...Base ..1 3...JSB10L-3 ...Shaft ... 1725 rpm ... 1 ...JSB10H-3 ...Shaft ... 3450 rpm ... 1 4...JSB10L-4 ...Stator ... 1725 rpm ... 1 ...JSB10H-4 ...Stator ...
-
Page 10: Wiring Diagram
Wiring Diagram for the JSB-10 Sanding/Buffing Machine...
