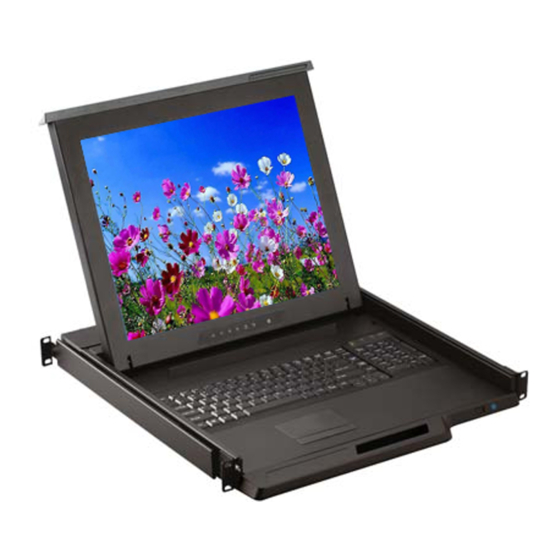

User Manual 17” / 19” LCD LCD1U17-013 / LCD1U19-012 1U LCD Drawer Options : - AV / HDMI / Audio - Touchscreen - SDI - DC power... - Page 3 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > LCD1U17-013 / LCD1U19-012 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Content
< Part 1 > LCD1U17-013 / LCD1U19-012 < 1.1 > Package Content LCD1U17-013 or LCD1U19-012 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 7 Product Dimension Model Net Weight (W x D x H) 441.6 x 480 x 44 mm 10.5 kg LCD1U17-013 17.4 x 18.9 x 1.73 inch 23.1 lb 441.6 x 480 x 44 mm 12.5 kg LCD1U19-012 17.4 x 18.9 x 1.73 inch 27.5 lb...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 9: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations LCD1U17-013 LCD1U19-012 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 10 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical LCD1U17-013 LCD1U19-012 Specifi cation Product ( W x D x H ) 441.6 x 480 x 44 mm 441.6 x 480 x 44 mm 17.4 x 18.9 x 1.73 inch 17.4 x 18.9 x 1.73 inch...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
-
Page 13: Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power. -
Page 14: Hdmi, S-Video + Bnc, Audio
< 3.2 > HDMI, S-Video + BNC, Audio HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) - Audio ( Audio input & output ) BNC Option - BNC ( S-Video + Composite, BNC ) - Audio ( Audio input & output ( 1 ) Either HDMI or DVI-D can be selected. - Page 15 < 3.3 > Options : Touchscreen & driver Projected Capacitive 10-pt Touch screen Specifi cation LCD1U17-013 Model Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 16 < 3.3 > Options : Touchscreen & driver USB Touchscreen DVI-D Power For touchscreen option, casing depth will be extended to 570mm ( 22.4" ) TPC Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations.
- Page 17 The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Synergy Global Technology Inc. All rights reserved. P.12 www.RackmountMart.com...
