- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

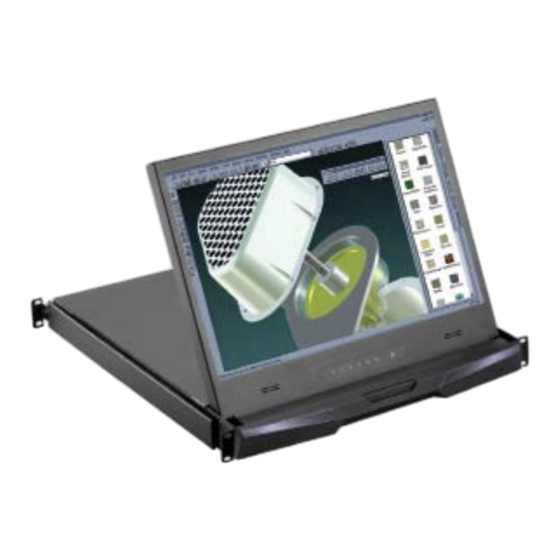

- Page 2 User Manual 19” Widescreen LCD 1440 x 900 LCD1U19-014 1U LCD Drawer Options : - SDI - AV / HDMI / Audio - DC power...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 4 Contents < Part. 1 > LCD1U19-014 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content LCD1U19-014 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 7 < 1.2 > Dimension Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Model (W x D x H) Weight 441.6 x 460 x 44 mm 12.5 kg LCD1U19 -014 17.4 x 18.1 x 1.73" 28 lb The weight is only for the pure models.
- Page 8 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
- Page 9 < Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M...
- Page 10 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch Net Weight...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 13 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
- Page 14 < 3.2 > Options : ( HDMI 1.1, CEA-861-D ) - HDMI ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio ( 1 ) For Ver.2.2 upgrade, either HDMI or DVI-D is provided. ( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1"...
- Page 15 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved. P.10 www.rackmountmart.com...
