Summary of Contents for Synergy Global Technology LCD1U15-04 Series
- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

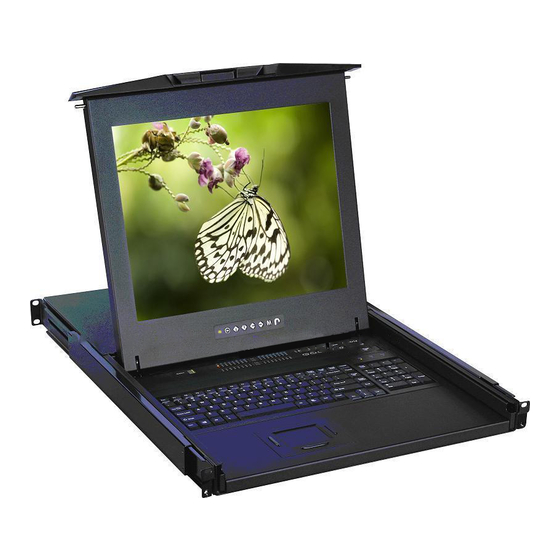

- Page 2 User Manual 1U LCD Keyboard Drawer 15", 17", 19" screen size Models LCD1U15-04 / 17-01 / 19-01 Series - With KVM options Models LCD1U17-13 / 19-04 - With KVM options - 1U 17", 19" screen size - Designed for SUN Solaris Models LCD1U15-11 / 17-06 / 19-02 Series...
-
Page 3: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 How to Install “One Man” Installation Slides....6-7 1.10 How to Use The Slides............8 1.11 How to Use “LCD1U15-04/17-01/19-01/15-11/17-06/19-02” Series LCD Keyboard Drawer............9 1.12 "LCD1U17-13/19-04”... -
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc LCD-A1014 USB 2-in-1 KVM cable x 1 pc (for “LCD1U17-13/19-04” series) LCD-A3001 Combo 4-in-1 KVM cable x 1 pc (for LCD1U15-04/15-11/17-01/17-06/19-01/19-02 series) User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs... -
Page 7: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 8: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description LCDK2006-2 / 3 / 4 Matrix Cat6 16 port KVM LCDK2012- 31 / 41 / 42 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM LCDK2007-2 / 3 / 4 Matrix Cat6 32 port KVM LCDK2013-31 / 41 / 42 Matrix IP Cat6 32 port KVM LCDK2004- 2 / 3 / 4... -
Page 9: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mouting bracket to fi t your rack. ■... - Page 10 Chapter 1 1.9 How to Install "One Man" Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■...
-
Page 11: How To Use The Slides
Chapter 1 1.10 How to Use the Slides ■ A black arrow release button is located on the outside of each slide. (shown in Figure 1). Figure 1. ■ Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. (shown in Figure 2). -
Page 12: Lcd Keyboard Drawer
Chapter 1 1 How to Use these Series LCD Keyboard Drawer ■ Press the carry handle button. Gently pull the carry handle toward the front of the LCD shown in Figure 4. Figure 4. Sliding out the LCD keyboard drawer by pressing the carry handle button first. -
Page 13: Lcd1U17-13/19-04" Series (Single Console)
Chapter 1 1.12 “LCD1U17-13 / 19-04” Series (Single console) - Use LCD-A1014 to connect to server via USB interface LCD-A1014 6-FT USB CABLE Example of connecting LCD-A1014 2-in-1 USB KVM cable to server via USB interface Figure 7. 1.13 “LCD1U17-13 / 19-04” Series (Single console) - Use LCD-A1014 to connect to KVM via USB interface LCD-A1014 6-FT USB CABLE Figure 8. -
Page 14: Lcd1U15-04/17-01/19-01/15-11/17-06/19-02 Series (Single Console)
Chapter 1 1.14 LCD1U15-04/-11/17-01/-06/19-01/-02 (Single console) - Use LCD-A3001 to connect to server via PS/2 interface LCD-A3001 6-FT COMBO CABLE Example of connecting LCD-A3001 Combo 4-in-1 KVM cable to server via PS/2 interface Figure 9. 1.15 LCD1U15-04/-11/17-01/-06/19-01/-02 (Single console) - Use LCD-A3001 to connect to KVM via PS/2 interface LCD-A3001 6-FT COMBO CABLE Figure 10. -
Page 15: Lcd1U15-04/17-01/19-01/15-11/17-06/19-02 Series (Single Console)
Chapter 1 1.14 LCD1U15-04/-11/17-01/-06/19-01/-02 (Single console) - Use LCD-A3001 to connect to server via USB interface LCD-A3001 6-FT COMBO CABLE Figure 11. Example of connecting LCD-A3001 Combo 4-in-1 KVM cable to server via PS/2 interface 1.15 LCD1U15-04/-11/17-01/-06/19-01/-02 (Single console) - Use LCD-A3001 to connect to KVM via USB interface LCD-A3001 6-FT COMBO CABLE Example of connecting LCD-A3001 Combo 4-in-1 KVM cable to KVM via PS/2 interface Figure 12. -
Page 16: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 17: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brighness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 18: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on slide-out rails LCD Manufacturer Series LCD1U15-04/17-01/19-01/15-11/17-06/19-02 LCD1U17-13/19-04 Diagonal Size 15" TFT 17" TFT 19" TFT 17" TFT 19" TFT 1152 x 900 (Direct) 1152 x 900 (Direct) Max. -
Page 19: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For LCD1U15-04/17-01/19-01/15-11/17-06/19-02 series Supporting layouts N keyboard integrated with touchpad N keyboard integrated with trackball LCD1U15-04/17-01/19-01 P.16 LCD1U15-11/17-06/19-02 LCD1U17-13/19-04... - Page 20 Chapter 3 3.2 Keyboard & Mouse For LCD1U17-13/19-04 series Supporting layouts SUN keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
-
Page 21: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Off mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard:... -
Page 22: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to KVM user manual ■ Option with Multiple consoles Matrix KVM ■... -
Page 23: Audio Option
Chapter 4 4.4 Audio Option 3-in-1 VGA KB mouse Power Audio console port Internal power version External power version Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. 4.5 DC Power Options Model Input rating Input voltage:... -
Page 24: Touchscreen Options
Chapter 4 4.6 Touchscreen Options e-Resistive Model -15TRB / -15TRS -17TRB / -17TRS -19TRB / -19TRS Screen size 15" 17" 19" Interface USB / serial Optical transmittance 80% ± 3% ≥3H (JIS K5400) Surface hardness Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux e-Capacitive Model -15TCB / -15TCS... -
Page 25: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. Is interference signal appeared on LCD normal when shutting down the computer ? In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. -
Page 26: Chapter 6 Dimensions
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc. All rights reserved. LCD1U15-04/17-01/19-01 P.23...
