Summary of Contents for Synergy Global Technology LCD1U17-29

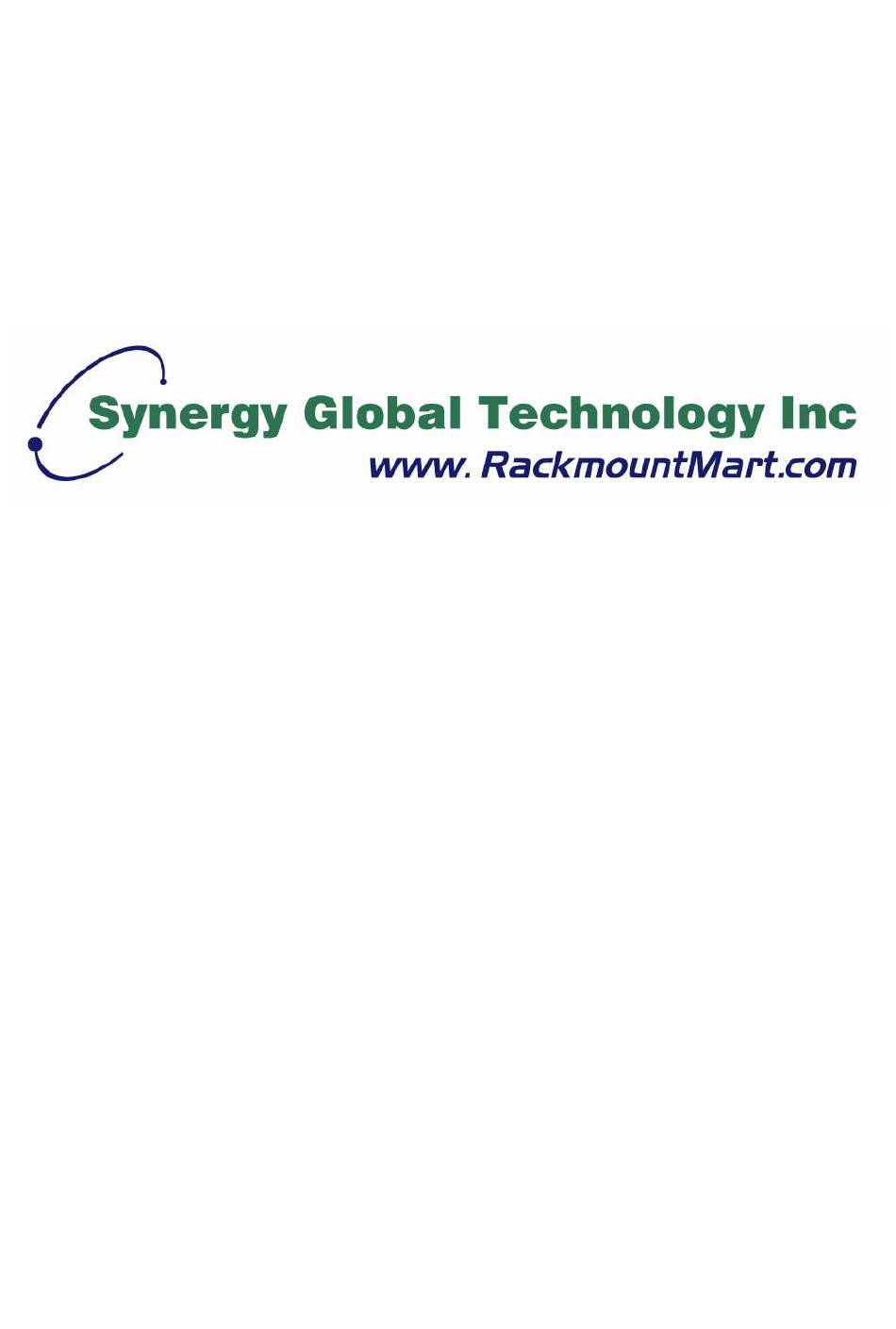

- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
- Page 2 User Manual 17” High Brightness Full HD LCD Console LCD1U17-29 1U LCD Console Drawer Options : - SDI - HDMI - DC power...
- Page 3 Legal Information First English printing, October 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > LCD1U17-29 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 12... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content LCD1U17-29 unit X 1 - 6ft DVI-D console cable X 1 ( Alternative : 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 (W x D x H) Weight 441.6 x 480 x 44 mm 10.8 kg LCD1U17-29 17.4 x 18.9 x 1.73" 23.8 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI & DC power.
-
Page 8: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - 2-Post Rack Mounting Brackets ( Option ) Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. www.RackmountMart.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via DVI cable LCD Console Drawer Power DVI-D DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via DVI cable LCD Console Drawer Power DVI-D KVM DVI-D console cable DVI-D DVI console KVM The LCD console drawer is hot-pluggable, but components of connected devices, such... - Page 12 < 1.4 > Connection to USB Server via VGA cable LCD Console Drawer DVI-D KVM console cable USB server < 1.4 > Connection to external KVM via VGA cable LCD Console Drawer DVI-D KVM console cable USB console KVM The LCD console drawer is hot-pluggable, but components of connected devices, such Caution : as the servers and KVM switch, may not be hot-pluggable.
-
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) 600:1 Color 16.7 M... - Page 14 Product ( W x D x H ) 441.6 x 480 x 44 mm Physical Specifi cation 17.4 x 18.9 x 1.73 inch Net Weight 10.8 kgs / 23.8 lbs DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz Applicable Format 1360 x 768 x 60Hz...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations keyboard integrated with touchpad keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life Windows / Linux / Unix / Mac OS OS support Supporting layouts America... - Page 16 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 17 < 2.2 > SUN Keyboard / Mouse Options SUN keyboard integrated with touchpad SUN keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose SUN keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 18: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 20 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
-
Page 21: Part. 3 > Options
< 3.2 > Options : ( HDMI 1.3, CEA-861-D ) - HDMI ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi... - Page 22 < 3.3 > Options : DC Power Model 125V 250V Input rating Input voltage: 24-Volt 48-Volt 110-Volt 300-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 35 mA 10 mA - Full load...
- Page 23 16-port 32-port USB Hub -H8KVM2IP -H16KVM2IP -H8KVM2 -H16KVM2 -H8KVM -H16KVM Product Dimension Model Net Weight (W x D x H) 441.6 x 580 x 44 mm 11.6 kg LCD1U17-29 w/ KVM 17.4 x 22.8 x 1.73" 25.5 lb P.18 www.RackmountMart.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
