Summary of Contents for Synergy Global Technology LCD1U17-26
- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

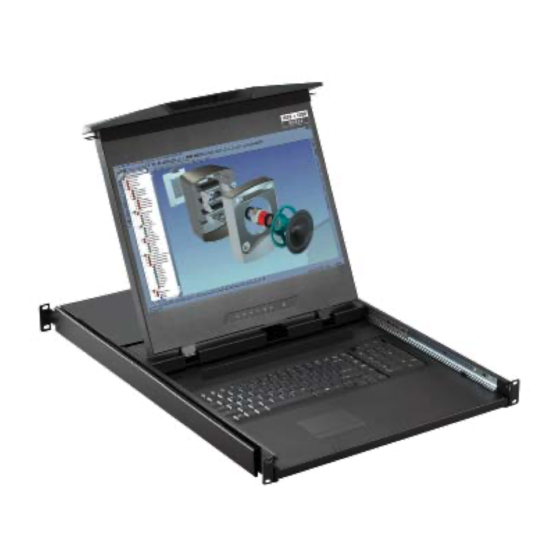

- Page 2 User Manual 17” Ultra High Resolution LCD 1920 x 1200 LCD1U17-26 1U Dual Slide LCD Console Drawer Options : - SDI - AV / HDMI / Audio - DC power...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > LCD1U17-26 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 12... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content LCD1U17-26 unit X 1 - LCD-A3004 6ft DVI-D console cable X 1 ( Alternative : LCD-A1014 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 (W x D x H) Weight 441.6 x 650 x 44 mm 13 kg LCD1U17-26 17.4 x 25.6 x 1.73" 29 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI, AV, audio & DC power.
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to Use the Dual Slides ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. www.rackmountmart.com...
- Page 10 < 1.3 > Installation - How to Use the Dual Slides ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position. www.rackmountmart.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via LCD-A3004 cable LCD Console Drawer Power DVI-D LCD-A3004 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via LCD-A3004 cable LCD Console Drawer Power DVI-D KVM LCD-A3004 DVI-D console cable DVI-D DVI console KVM... - Page 12 < 1.4 > Connection to USB Server via LCD-A1014 cable LCD Console Drawer Power LCD-A1014 VGA console cable USB server < 1.4 > Connection to external KVM via LCD-A1014 cable LCD Console Drawer Power LCD-A1014 VGA console cable USB console KVM The LCD console drawer is hot-pluggable, but components of connected devices, such Caution : as the servers and KVM switch, may not be hot-pluggable.
-
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 16.7 M, 8-bit... - Page 14 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Specifi cation Product ( W x D x H ) 441.6 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch Net Weight...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac Supporting layouts... - Page 16 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 17 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
-
Page 18: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
- Page 20 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
- Page 21 < 3.2 > Options : ( HDMI 1.1, CEA-861-D ) - HDMI ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio For dual slide 1U / 2U LCD console drawer, the user can only select one of the above four options. HDMI DVI-D Power...
- Page 22 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved. P.17 www.rackmountmart.com...
