Summary of Contents for Synergy Global Technology LCD1U15-17
- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
- Page 2 LCD Drawer User Manual - 1 -...
- Page 3 This manual, covering various aspects of the equipment such as installation, setup and cascade, will help you make full use of this widescreen LCD KVM Drawer. Please read this manual carefully and install and operate the equipment according to the manual to avoid damage to this product its accessories.
-
Page 4: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Standard Installation………………. -
Page 5: Introduction

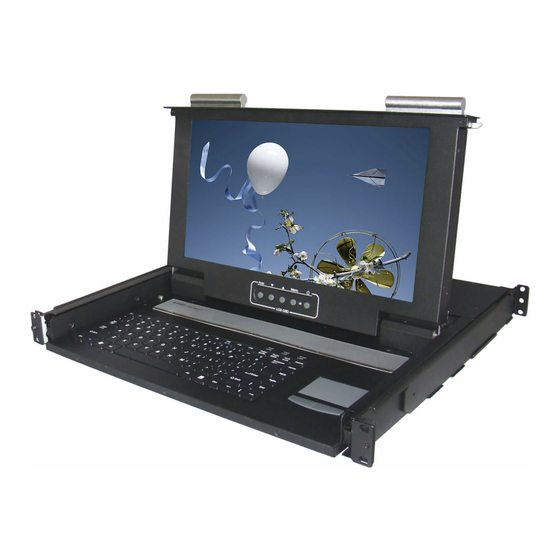

It can be operated once the KVM module is pulled out. Once the operation is completed, push the KVM module back to the rack. LCD1U15-17 LCD console is a control devic e integrating 15.6” widescreen LCD. ,86- key keyboard and touchpad mouse. You can access multiple hosts using the LCD console while saving money and efforts. -
Page 6: Product Specifications
1.4 Product Specifications Model LCD1U15-17 Keyboard 86-key Keyboard Mouse Touchpad Local Control Keyboard PS/2 Terminal Mouse PS/2 Monitor HD-15 female connector For USB KB/Mouse VGA resolution 1366 x 768 @75Hz Power supply AC100~240V 50~60Hz Housing Metal housing Weight 13.5Kg 15.5Kg Dimension(W x H x D) 446.4 x 44 x 406.4 (mm) -
Page 7: Front View
Front View Part Function Description Handle Moving toward inside direction unlock then pull out LCD display LCD button to control Screen Display position and LCD OSD button image setting. Keyboard Touchpad LCD Power indicator Mounting bracket Install into rack cabinet. Lock button Auto lock / release when lcd pull up and down - 6 -... -
Page 8: Rear View
Rear View 3 4 5 6 Component Function Description AC Power port Standard IEC Type AC Inlet Power Switch Rock switch, turn on/off equipment main power. PS2 Keyboard Connect to server or KVM. Connect to server or KVM. DB15 VGA PORT PS2 Keyboard Connect to server or KVM. -
Page 9: Installation
2 Installation 2.1 Rack Installation Please carry out rack installation according to following procedures: 1.Please switch on your rack and use screws which contain in the package to fix into the rack. 2.Adjust the rear mounting bracket ( L type ) to fit your rack ,then use screws to fix Note: 1. -
Page 10: Standard Installation
2.2 Standard Installation Please follow the installation drawing and instructions below for standard installation: * Please Shutdown the Power of Equipment Needs to be Connected * Please Pay Attention to Earthing of Equipment A) Plug the VGA , PS/2 or USB port in corresponding ports between the host and KVM B) Plug AC power Cord The standard installation is completed, and LCD KVM console can be powered on. -
Page 11: Lcd Kvm Console And Kvm Cascade Installation
2.3 LCD KVM Console and KVM Cascade Installation LCD KVM console port can be directly connector to another KVM Switch as cascade to Perform unified management all connected hosts. Please follow the installation drawing and instructions for standard installation: (1) Make sure to power off all equipment to be connected and existing equipment. (2) Switching slide switch on USB position (3) Use an USB / VGA cable to connected the LCD and KVM switch console port. -
Page 12: Lcd Osd Menu Setup
2.4 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. - Page 13 Color Contrast: It can be adjust image get distinct or vague Brightness: It can be adjust image get dark or bright Color Adjust: Set favorite color of red, green, and blue Color Temp: Set color to 9300,6500,5800, Srgb, USER Back: Go back MENU Image setting Clock: Adjust frequency to fill display Phase: Adjust remove noise and sharpen the image...
- Page 14 Position H. Position: It can be moved to left or right side of image V. Position: It can be moved to up or down side of image Back: Go back MENU OSD Menu H. Position: It can be moved to left or right side of OSD OSD V.
- Page 15 Language English : will display the OSD in English, ( Factory default mode) French: will display the OSD in French German: will display the OSD in German Espanol : Go back MENU Unsimplified chinese : will display the OSD in Unsimplified chinese Simplified chinese: will display the OSD in simplified chinese Japan:...
-
Page 16: Certificates
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc. All rights reserved. - 15 -...
