- Page 1 Video-PX7300 series nVIDIA GeForce™ 7300 series User’s Manual Version 1.00 C o p y r i g h t © 2 0 0 6 J a t o n C o r p o r a t i o n , U S A...
-
Page 2: Table Of Contents
INTRODUCTION ... 3 FEATURES AND SPECIFICATIONS ... 4 SYSTEM REQUIREMENT ... 6 CHECK LIST ... 6 HARDWARE DESCRIPTION... 7 DISPLAY DEVICES OUTPUT ... 8 HARDWARE INSTALLATION... 9 NSTALLATION ROCEDURES : ... 10 TEPS SOFTWARE INSTALLATION... 11 ® XP/2000 D INDOWS TECHNICAL ASSISTANCE... -
Page 3: Introduction
LIMITED WARRANTY ... 22 ... 22 THER IMITS XCLUSIVE BLIGATION ... 23 THER TATEMENTS ERMS AND ONDITIONS ERVICES AGREEMENT ... 24 NTIRE BLIGATION REDUCING WARRANTY CLAIM REJECTIONS... 25 Introduction Video-PX7300 series video accelerators are based on nVIDIA GeForce™ 7300 core technology. The Video- PX7300 series feature the TurboCache technology. -
Page 4: Features And Specifications
setup, crucial math elements of the pixel shader, and texture manipulations, the newest engine lets 3D graphics developers achieve new levels of performance and visual quality. A combination of a hardware video processor and video decode software, NVIDIA PureVideo technology delivers stunning video to any display. - Page 5 NVIDIA® CineFX® 4.0 Engine Delivers advanced visual effects at unimaginable speeds. Full support for Microsoft® DirectX® 9.0 Shader Model 3.0 enabling stunning and complex special effects. Next-generation shader architecture with new texture unit design streamlines texture processing for faster and smoother gameplay.
-
Page 6: System Requirement
• Hard Drive with at least 100MB Free space • MS Windows® 2000/XP operating system Check List • Video-7300GS, Video-PX7300GS-256, Video- PX7300LE and Video-PX7300LE-256 Multimedia Accelerator • 3” cable (TV-Out) converts MD 4pin to Composite RCA • DVI to RGB converter •... -

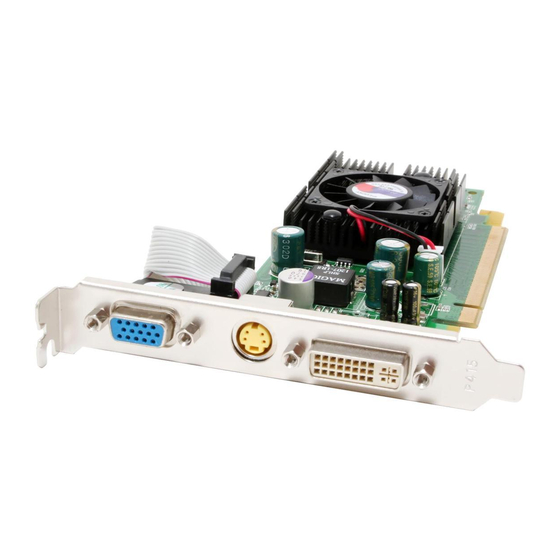

Page 7: Hardware Description
Hardware Description Note: Low profile configuration requires 2 slots. Product name / PCB version Video-PX7300GS 82358A Video-PX7300GS-256 82358A Video-PX7300LE 82358A Video-PX7300LE-256 82358A Core Chipset PCB Size nVIDIA GeForce 7300GS W=6.25” X H=2.5” nVIDIA GeForce 7300GS W=6.25” X H=2.5” nVIDIA GeForce 7300LE W=6.25”... -
Page 8: Display Devices Output
Accessories for VGA cards are sold separately. Please go to http://Store.anvshopper.net for details. Display Devices Output... -
Page 9: Hardware Installation
DVI out - DVI connects to LCD display panel. DVI converts to RGB with DVI-RGB converter for Dual RGB out. TV-Out - MD4 connector converts S-Video to RCA Composite Output or direct connects S-Video to TV set. RGB out - DB15 VGA connector to analog monitor. Hardware Installation Installation Procedures... -
Page 10: Steps
The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation of any components by unauthorized service personnel. If you do not feel comfortable performing the installation, consult with a qualified computer technician Steps: Turn OFF all powers to your system, including any peripherals (printer, external drives, modem, etc.). -
Page 11: Software Installation
1. To add a new adapter, ensure the mainboard has available IRQ for new devices, and there is no conflict between each other. 2. If you try adding this video adapter to an ALL-IN-ONE mainboard (which video port built-in already), then you have to disable that port first. - Page 12 Autorun feature brings-up the “Welcome Screen”, and you may point to “Display Driver” and then press on it. Microsoft InstallShield® Wizard has start loading its setup process; please wait until it has completed.
- Page 13 Click on “Next” to continue the process. The Windows system will copy all driver files from source media to your local hard disk; please wait until the process has completed.
-
Page 14: Technical Assistance
Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. Notice: We believe that the all the installation steps mentioned above are clear from manufacturer software’s CD to your operating system. Any procedures other than these processes have not been specified. - Page 15 developer. To center the display with normal type (mode 3), and to reduce (decrease) the refresh rate with the monitor's specification. Q: What kind monitors can display 800x600 modes or higher resolution mode? Explain and Suggestion: To display 800x600 resolution at 60Hz refresh rate, the monitor must be capable of synchronizing a 31.5KHz horizontal scan rate (e.g., NEC 2A, 3D).
-
Page 16: Frequently Asked Questions (Faq)
driver should function properly with virtually every video board and VGA (or SVGA) monitor available. If that is an unsatisfactory solution, you may have to upgrade to a monitor that supports the desired video mode. Some new monitors are also synchronizing this problem because built-in DDC (Data-Digital-Channel) feature. -
Page 17: Pinout And Sync Frequencies
Both, it is patented hardware and software technology. Q6: What kind of memory is on the GeForce a 7300 GS card? Answer DDR2 memory. Pinout and Sync Frequencies Analog Color Display Pinouts (DB 15) Note: Analog monochrome type monitors use green video for all video input and ignore red and blue video. -
Page 18: 9-To-15 Pin Conversion Table
The adapter cable requires a D-shaped 9 pin female connector and a D-shaped 15 pin male connector. 9-to-15 Pin Conversion Table 9 PIN SIGNALS Green Blue Horz Sync Vert Sync Red Ground Green Ground Blue Ground Sync Ground Analog Video Signals Black Level = 0 V Full Intensity (White) Level = +0.7 V Digital Visual Interface (DVI-I) Connector... -
Page 19: Technical Support
In the event you have a technical problem with this product, please read the README files in the software CD_ROM. Updated drivers are available through Jaton Web site. Have following information handy when you contact technical support: Name of the product. -
Page 20: How To Obtain Warranty Service
In United States contact: Jaton Corporation. Service Center 556 S. Milpitas Blvd., Milpitas, CA 95035 (408)-934-9369 In Thailand contact: Jaton (Thailand) Co., Ltd. 93, 93/1-2 Moo 4 Thana City PC Tower 1 KM.14 Bangchalong Bangplee Samutprakarn 10540 Thailand Tel: 662-336-1212 Fax: 662-336-1213... - Page 21 In Australia contact: Jaton Technology pty, Ltd. Unit 8, 41-49 Norcal Road, Nunawading, Vic 3131 Australia Tel: (Mel) 03 9873 3999 Fax 03 9873 3933 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 22: Limited Warranty
(2) years from manufacturing date. This limited warranty applies only to the original purchaser of Jaton Product and is not transferable. This limited warranty does not apply if failure to the Product Registration, or over thirty (30) days from purchase (original invoice date). -
Page 23: Exclusive Obligation
Terms and Conditions Direct Jaton Customer: Reseller/ Vendor: This warranty applies only for a period of two (2) years from purchase date of Jaton original invoice. This warranty applies only for a period of two (2) years from manufacturing date. -
Page 24: Services Agreement
Registered User: Others: Services agreement: (1) All applicants shall complete service request form from Manufacturer. (2) All returned checks will be charged a $20.00 fee by Manufacturer. (3) All repair and replacement services allow 4-6 weeks from the date of receiving by Manufacturer. (4) All products without warranties require service processing fee $20 (payment in advance), which is not refundable. -
Page 25: Reducing Warranty Claim Rejections
rights. You may have other rights, which may vary from state to state. This warranty applies only to this product, and is governed by the law of the State of California. Reducing Warranty Claim Rejections To reduce the potential of incurring damages not covered by Manufacturers warranties, we strongly recommend the following: •... - Page 26 possibility of incompatibility issue before you purchase add-on or accessories. Warranty Service Use Only Serial Number - ten or eleven digit code, the serial number consists of the following parts: Packaging Type Manufactured Date Code Production Numerical Code 00 8 000015 Year Month XXXXX-XXX-XX...
