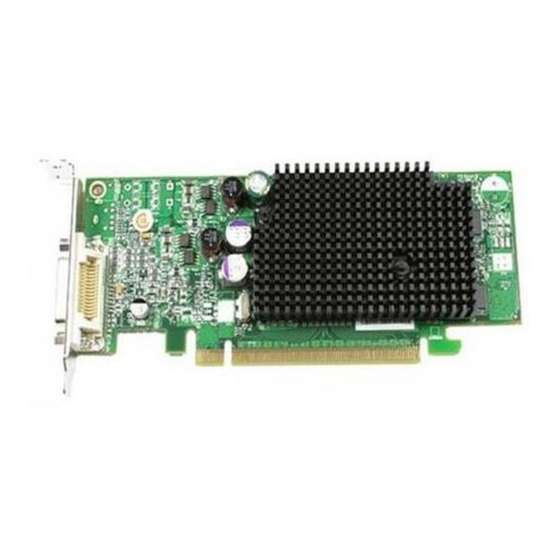

- Page 1 Video-107PCI-3D Video-107PCI-3D multimedia accelerator User Manual version 3.00 Copyright © 1999 Jaton Corporation, USA.
- Page 2 NOTICE The information in this document is subject to change in order to improve reliability, design, or function without prior notice and does not represent a commitment on the part of the company. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or the inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 3: Table Of Contents
1. INTRODUCTION...5 2. FEATURES...6 2.1 H ERFORMANCE R 2.2 T ® S IDEO CALING 2.3 M EMORY NTERFACE 2.4 CRT I ...8 NTERFACE 2.5 O ...8 VERVIEW 2.6 S YSTEM EATURES 2.7 H ERFORMANCE 2.8 H IGHLY NTEGRATED 2.9 F EATURE 2.10 T ®... - Page 4 9.1 S TANDARD ODES 9.2 E XTENDED ODES 10. PINOUT AND SYNC FREQUENCIES...29 10.1 A NALOG OLOR 10.2 C ONVERSION ABLE 10.3 9- -15 P ONVERSION 10.4 A NALOG IDEO 11. FCC SHIELDED CABLE WARNING ..30 11.1 TRADEMARK ACKNOWLEDGMENTS...31 11.2 T ECHNICAL UPPORT...
-
Page 5: Introduction
The Video-107PCI -3D supports a video playback, or decompressed video streams to be overlaid with a graphics stream of mixed color depth displays. Jaton Corporation, USA. -
Page 6: Features
2. Features 2.1 High Performance rCADE3D™ Accelerator Single Cycle Pipelined Engine Per Pixel Mip-Mapping Multiple Levels of Details (LOD) 1/16 Sub-Pixel Precision 32-bit Color Rendering Perspective Correct Textures 4Kbyte Texture Cache DirectDraw™ acceleration Multiple Buffering 2.1.1.1.1 Setup Engine 2.1.1.1.2 Rendering Engine 32-bit IEEE Floating Point Input Date Slope and vertex calculations Back Facing Triangle Culling... -
Page 7: Truevideo® Scaling Processor
2.1.1.1.3 Texturing Engine 2.1.1.1.4 2D GUI Engine 2.2 TrueVideo® Scaling Processor Horizontal & vertical interpolation using Trident Edge Recovery Technique (TERT) Edge smoothing Dual frame buffer apertures Vertical Blank Interval for Intercast Overlay different video and graphic color depths Anistropic, Tri-Linear, Bi-Linear, point-Sampled Filtering Mip-Mapping with 11 Levels-Of-Detail Perspective Correction... -
Page 8: Memory Interface
The Video-107PCI -3D supports planar video format for MPEG-1, MPEG-2, and video playback. Advanced features of the Video-107PCI-3D, such as color space conversion, Video Module Interface (VMI), a 24-bit True Color DAC, and triple clock synthesizers allowing performance at peak levels. -
Page 9: System Features
2.6 System Features The Video-107PCI -3D’s main system features include: High Performance single cycle GUI Highly Integrated RAMDAC™ and Triple Clock Synthesizer Full Feature High Performance 3D Graphics Engine Hardware implementation of motion compensation TrueVideo® Processor DirectDraw ™ and DirectVideo™ Hardware Support Flexible Frame Buffer Memory Interface Advanced Mobile Power Management CRT Power Management (VESA™... -
Page 10: H Igh P Erformance
image, which off-loads the CPU, optimize graphic functions. The hardware cursor mechanism can also be used to display patterns stored in the system memory. This pop-up icon is very useful to display user-friendly information instantly through simple hot key operations. This advanced function combination allows significant performance increases over standard Super VGA designs and provides outstanding graphics acceleration on GUIs,... -
Page 11: Truevideo® Processor
3D operations are suspended. 2.10 TrueVideo® Processor The Video-107PCI-3D, with an integrated Video Display Engine, supports apertures on the PCI bus which enables independent graphic and video data to be transported simultaneously to and from different memory areas and greatly accelerates the performance of both DirectDraw™... -
Page 12: Versatile Frame Buffer Interface
2.11 Versatile Frame Buffer Interface The Video-107PCI -3D features a versatile frame buffer interface, providing SDRAM/SGRAM interface flexibility to meet the demand of high-end and mid-end PC desktop integrates. Optimized performance can be achieved with the single cycle memory bus interface using programmable DRAM timing. The display queue has been increased to reduce the frequency of the memory bus requests, optimizing the memory bus efficiency for the graphic controller. -
Page 13: Complete Hardware Compatibility
Video-107PCI -3D provides hardware support to DirectDraw™, offering high speed game graphics on Windows ® . 3. Check List The package you have purchased should contain the following: þ Video-107PCI-3D Multimedia accelerator þ Software and Document CD-ROM þ Quick Start Guide (printed) 4. -
Page 14: Hardware Installation
Adapter's Plate DB 15 VGA Product Video-107PCI-3D Video-107PCI-3D 6. Hardware installation 6.1 Installation Procedures The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation of any components by unauthorized service personnel. If you do not feel comfortable performing the installation, consult with a qualified computer technician. -
Page 15: Steps
6.2 Steps: Turn OFF all powers to your system, including any peripherals (printer, external drives, modem, etc.). Disconnect the power cord and the monitor cable from the back of the computer. Unfasten the cover mounting screws on your system and remove the system cover. - Page 16 Autorun file pops up “Welcome” screen from the software Click on the “Display Driver” selecting text to start the installation. Switch to “Settings” tab, then click on “ Advance” button.
-
Page 17: Microsoft Windows®Me
Click on “Change”, then “Have Disk”. Browse to “X: \V-107\Win98\Jaton.INF” (X is the letter of your CD-ROM drive), and click OK. The display device selected “Video-107PCI-3D, Blade3D 9880 PCI/AGP” then press on OK button. Close and apply to finish PCI’ s display driver installation. -
Page 18: Microsoft Windows® Nt™4.0
ÿ ÿ 7.1.2 ICROSOFT PRESS on “Display Driver” selecting text to start the installation. SELECT the “Display” icon in control panel and then SELECT the “Settings” page. SELECT “Display Type...” button in the “Settings” page. SELECT “Change...” button from the Adapter type section. SELECT “Have Disk...”... - Page 19 Switch to “Settings” tab, then click on “ Advance” button. Click on “Change”, then “Have Disk”. Browse to “X: \V-107\Win2k\Jaton.INF” (X is the letter of your CD-ROM drive), and click OK. The display device selected “Video-107PCI-3D, Blade3D 9880 PCI/AGP” then press on OK button.
-
Page 20: Microsoft Windows 2000/Xp
Close and apply to finish PCI’ s display driver installation. Restart Windows to complete installation. ÿ ÿ 7.1.4 ICROSOFT Windows XP detects your video card automatically, and placed a current driver from its system folder without any screen messages. That means you don’t needed to install video driver from its manufacturer, Microsoft windows system automated performs the video driver install and upgrade. - Page 21 NEC 3D, Seiko 1430 or 1440). To display 1024x768 non-interlaced mode at 60Hz, the monitor must be capable of synchronizing a 48.7KHz scan rate (e.g., Sony HG 1304, NEC 4D, 5D, Seiko 1450). To display 1024x768 non-interlaced mode at 70Hz, the monitor must be capable of synchronizing a 56.4KHz scan rate (e.g., NEC 4D).
- Page 22 Today, most video drivers are developed for 32-bit processing and may require a channel to Code/Decode. Conflict between device drivers and TSR (terminate-and-stay-resident) programs will inverted the display, and are particularly effectual at crashing computer. The most effective way to check for conflicts is to replace with the original video driver, or delete and re-install the current video driver to the system.
-
Page 23: Tips
Accordingly, there must be a bug (defected source-code) in video driver, or in the system. Debug the source-code or fix the error in video driver, that should be done by the driver developer. Likewise, upgrade the video driver from the manufacturer or from the original software developer is necessary. - Page 24 “Rendering Engine” generically applies to the part of the graphics engine that draws 3D primitives, usually triangles. In most implementations, the rendering engine is responsible for interpolation of edges and “filling in” the triangle. Q3 What does the set-up engine do in a graphics controller? Answer A set-up engine allows drivers to pass triangles in the form of raw vertex information;...
-
Page 25: Video Mode Table
hardware in conjunction with the CPU to render for 3D applications. Some of these techniques allow usable 3D applications when high-powered and/or MMX™-equipped CPU’s are employed along with special-case software optimization techniques. As stated above, SW 3D can achieve credible results with today’s (software optimized) applications, but the rising popularity of good 3D hardware at the consumer price level is inexorably compelling the public to expect hardware level scene... -
Page 26: Extended Modes
640x480-2 640x480-16 320x200-256 9.2 Extended Modes Mode Resolution -Colors 640x480-16 640x473-16 640x480-16 1056x350-16 1056x480-16 1056x473-16 1056x480-16 1188x350-16 1188x480-16 1188x473-16 1188x480-16 5Bh_1 800x600-16 640x400-256 5Dh_4 640x480-256 5Dh_3 640x480-256 5Dh_2 640x480-256 5Dh_1 640x480-256 5Eh_3 800x600-256 5Eh_2 800x600-256 5Eh_1 800x600-256 5Fh_5 1024x768-16 5Fh_4 1024x768-16 5Fh_3 1024x768-16... - Page 27 Mode Resolution -Colors 64h_1 1280x1024-256 65h_2 1600x1200-16 65h_1 1600x1200-16 66h_2 1600x1200-256 66h_1 1600x1200-256 6Ah_1 800x600-16 640x400-16M 6Ch_4 640x480-16M 6Ch_3 640x480-16M 6Ch_2 640x480-16M 6Ch_0 640x480-16M 6Dh_3 800x600-16M 6Dh_2 800x600-16M 6Dh_1 800x600-16M 66h_2 1600x1200-256 6Eh_5 1024x768-16M 6Eh_4 1024x768-16M 6Eh_3 1024x768-16M 6Eh_2 1024x768-16M 6Eh_1 1024x768-16M 72/3h...
- Page 28 Mode Resolution -Colors 320x200-16M 3Ch_4 320x240-16M 3Ch_3 320x240-16M 3Ch_2 320x240-16M 3Ch_0 320x240-16M 3Dh_3 400x300-16M 3Dh_2 400x300-16M 3Dh_1 400x300-16M 42/3h 320x200-32K/64K 44/5h_4 320x240-32K/64K 44/5h_3 320x240-32K/64K 44/5h_2 320x240-32K/64K 44/5h_1 320x240-32K/64K 46/7h_4 400x300-32K/64K 46/7h_3 400x300-32K/64K 46/7h_2 400x300-32K/64K 1. VESA mode. Same as 5Bh_1. 2.
-
Page 29: Pinout And Sync Frequencies
10. Pinout and Sync Frequencies 10.1 Analog Color Display Pinouts (DB 15) Note: Analog monochrome type monitors use green video for all video input and ignore red and blue video. 10.2 Conversion Table: Pin Adapters If you will be using a 9-to-15 pin adapter cable to link your 9 pin monitor connector to the 15 pin accelerator card connector, check Table carefully before you install the cable. -
Page 30: 9-To-15 Pin Conversion Table
10.3 9-to-15 Pin Conversion Table 9 PIN SIGNALS Green Blue Horz Sync Vert Sync Red Ground Green Ground Blue Ground Sync Ground 10.4 Analog Video Signals Black Level = 0 V Full Intensity (White) Level = +0.7 V 11. FCC SHIELDED CABLE WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 31: Trademark Acknowledgments
to which the receiver is connected. Consult an experienced radio/TV technician for help. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio/TV Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. -
Page 32: Technical Support
(2) years from manufacturing date. This limited warranty applies only to the original purchaser of Jaton Product and is not transferable. This limited warranty does not apply if failure to the Product Registration, or over thirty (30) days from purchase (original invoice date). -
Page 33: Exclusive Obligation
Reseller/ Vendor: Registered User: Others: This warranty applies only for a period of two (2) years from purchase date of Jaton original invoice. This warranty applies only for a period of two (2) years from manufacturing date. This warranty applies only for a period of... -
Page 34: Services Agreement
12.5 Services agreement: (1) All applicants shall complete service request form from Manufacturer. (2) All returned checks will be charged a $20.00 fee by Manufacturer. (3) All repair and replacement services allow 4-6 weeks from the date of receiving by Manufacturer. (4) All products without warranties require service processing fee $20 (payment in advance), which is not refundable. - Page 35 Buy industry standard products where compatibility issue are more likely to surface; If you are unsure about installation for a new product, contact your dealer’s service department. We believe it is important for you to know and understand what your warranty coverage provides and what it does not.
