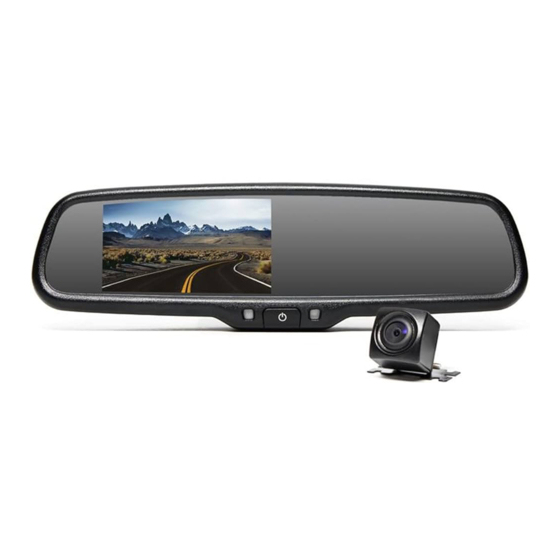

- Page 1 A S a f e F l e e t B r a n d Instruction Manual G-SERIES Backup Camera System with Auto Dimming, Compass and Temperature RVS-776718-DCT Rear View Safety, Inc. © 2017 Reverse With Confidence ™...
- Page 2 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! Introduction....... 03 With this manual you will be able to properly install and Safety Information.
- Page 3 INSTALLATION: Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or • Electric shock or product or disconnected wire may cause a injury, including loss of life. Be sure to obey all applicable local malfunction may occur if this fire.
- Page 4 If you have questions about this product, contact: Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility Rear View Safety of them being damaged while vehicle is in use. Keep all cables away 1797 Atlantic Avenue from hot or moving parts and electrical noisy components.
- Page 5 Wiring Replacement Monitor The mirror monitor replaces the existing car mirror. Carefully remove After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to an igni- the mirror off the “pin”. Slide the replacement mirror on to the pin and tion power source and the BLACK 12V ground wire to a chassis ground.
- Page 6 Grid Lines Grid Lines Generally, to help drivers estimate the distance from obstacles, there are three lines for reference- red, yellow, and green. Those three lines are dis- played on the monitor when car is reversing. The green line is 3M from the back of the car and the yellow line is 6.5 ft.
- Page 7 Remote FIGURE 1.1 FIGURE 1.2 Rear View Safety Reverse With Confidence ™...
- Page 8 FIGURE 2.1 FIGURE 2.2 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Rear View Safety Reverse With Confidence ™...
- Page 9 Digital Compass Calibration The compass can be calibrated by driving your vehicle in several complete circles. See figures below. If the vehicle’s compass headings become inaccurate, the compass can also be manually calibrated: 1.Press the “MENU” three times to enter into the “SETTING” menu, and press “SEL/REC” to choose “ANGLE”.
- Page 10 Temperature Sensor Installation Locate the temperature sensor between the front of the radiator and the front Q&A bumper. Slide the metal clip over the edge of the sheet metal or plasic shield until it is secure. Do not install the temperature sensor near the engine. Q: Why does the compass need to be calibrated? A: The magnetism of a car is stronger than the magnetism of the Earth.
- Page 11 Rear View Safety Reverse With Confidence ™...
- Page 12 About Our Monitor About Camera 10.25” 3” SPECIFICATIONS: SPECIFICATIONS: Screen Size: 4.3” Display Screen: TFT-LCD Display Resolution: 400(H)x234(V) Aspect Ratio: 16:9 Color Depth: 16.7M dithering Pixel Pitch (mm) 0.219x0.219 Power Consumption: Working Voltage: DC 9V-32V VIDEO-IN to GPS/DVD Video Input: (Default) Camera to backup camera Signal System: PAL/Auto/NTSC...
- Page 13 Camera Installation No Image On Screen • Do a hard reset, unplug all cables • Verify camera is on correct camera and power cables, leave out for 1 input minute and then re-connect them • Verify cable is connected to •...
- Page 14 ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR DISCLAIMER REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE...
- Page 15 A S a f e F l e e t B r a n d If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
