Reliable F1-56 Series Manual

Reliable F1-56 Series Manual

Standard-response sprinklers
Hide thumbs Also See for F1-56 Series:

Advertisement

Quick Links

Features
Standard coverage standard-response sprinklers
Upright, pendent, horizontal sidewall, and vertical sidewall
deflectors
Low profile, compact design
Available in a wide variety of finishes
Available as Intermediate Level Sprinklers
Product Description

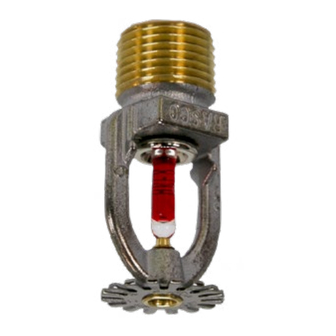

Reliable Model F1 series sprinklers are standard-response
standard spray automatic fire sprinklers utilizing a 5.0 mm glass
bulb thermal element.
Pendent and horizontal sidewall sprinklers may be installed
exposed or surface mounted using escutcheons such as the
Reliable Models B, C, or HB (reference Technical Bulletin 204).
When installed recessed, the Model F1-56 series sprinklers
are specifically listed with and may only be installed with listed
Reliable escutcheons. Refer to the technical information on the
following pages for specific listings for recessed installations and
refer to Figures 7 and 8 for dimensional information.
When fitted with an approved water shield, these sprinklers may
considered intermediate sprinklers for use in racks, below grated
walkways, and other areas where intermediate level sprinklers are
required.
Table A provides a summary of the approvals and availability
of specific Model F1 series sprinkler configurations. Additional
technical information for each sprinkler model is provided on the
following pages.
F1-56 Series Sprinklers Summary
K-Factor gpm/psi
Sprinkler
Model
(lpm/bar
F1-56
5.6 (80)
1/2
Orientation
1/2
)
Upright
Intermediate Upright
Pendent
Horizontal Sidewall
Vertical Sidewall
www.reliablesprinkler.com
Standard-Response Sprinklers

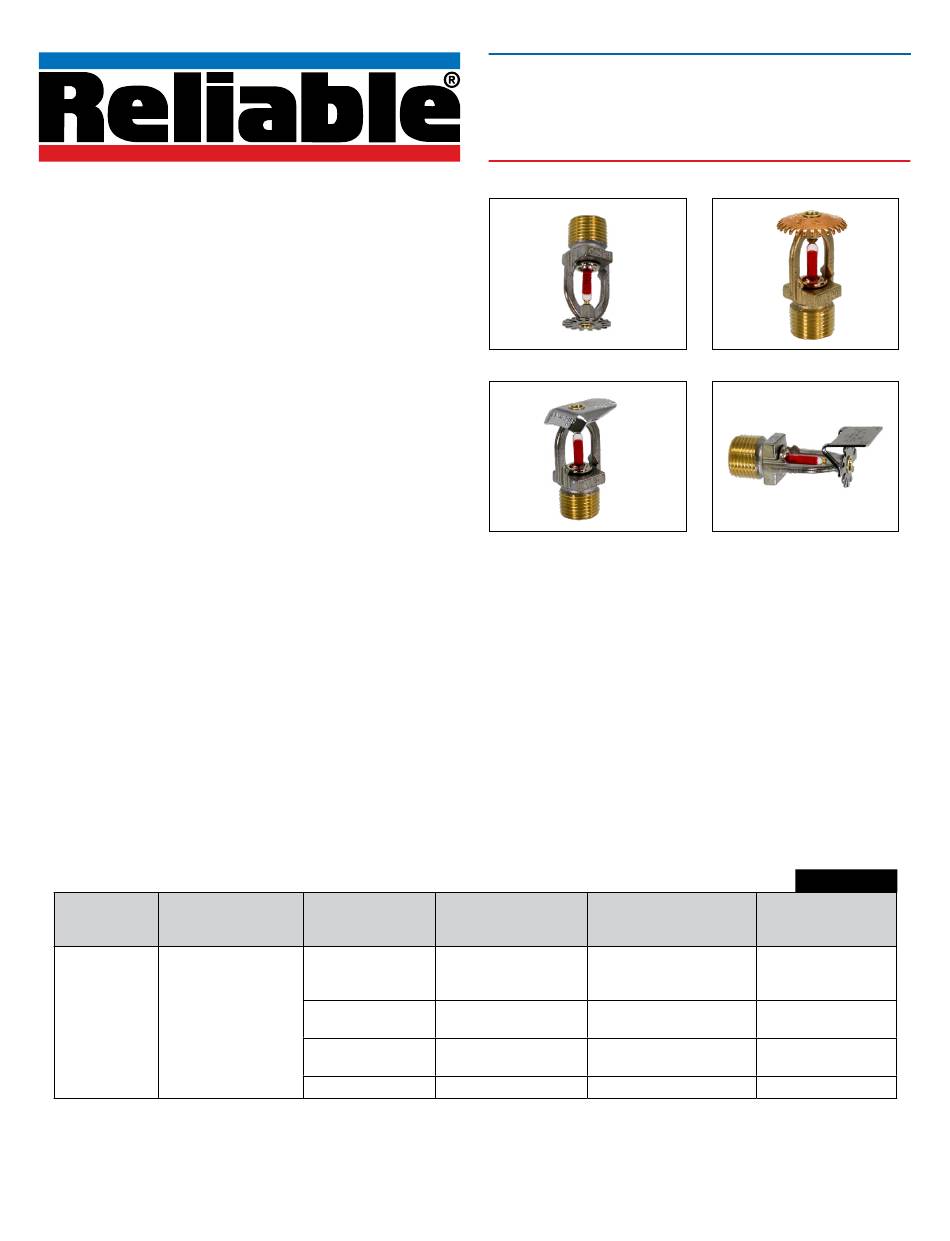

Model F1-56 Pendent
Model F1-56 Vertical Sidewall
Note: Not all versions of the product are shown.
Note: This bulletin may contain information on New and Legacy
sprinklers that reflects a dimensional change only.
Sprinkler Identification Number (SIN), application, performance,
and listings/approval are not otherwise affected. Sprinklers with
New frames will include the suffix "N" in the order.
Max. Working Pressure
Listings & Approvals
cULus, FM, LPCB,
VdS, EC
250 (17) (cULus only)
cULus, FM, LPCB,
VdS, EC
250 (17) (cULus only)
cULus, FM
250 (17) (cULus only)
cULus, FM, LPCB
Bulletin 071 October 2022
F1-56 Series
K-factor 5.6 (80)
Model F1-56 Upright
Model F1-56
Horizontal Sidewall
Table A
Sprinkler
Identification
psi (bar)
Number (SIN)
175 (12)
RA1325
175 (12)
RA1314
175 (12)
RA1335
175 (12)
RA1385

Advertisement

loading
Need help?

Need help?

Do you have a question about the F1-56 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Reliable F1-56 Series

  • Page 1 Pendent and horizontal sidewall sprinklers may be installed exposed or surface mounted using escutcheons such as the Reliable Models B, C, or HB (reference Technical Bulletin 204). When installed recessed, the Model F1-56 series sprinklers are specifically listed with and may only be installed with listed...
  • Page 2 Model F1-56 Upright Sprinkler SIN RA1325 Technical Specifications Guards & Shields (New Frames) Style: Upright, Intermediate Upright Factory Water Shield (cULus, FM) Threads: 1/2” NPT or ISO 7-R1/2 F-1 Guard (cULus, FM) Nominal K-Factor: 5.6 (80 metric) F-3 Guard with Shield (cULus, FM) Max.
  • Page 3 Model F1-56 Pendent Sprinkler SIN RA1314 Technical Specifications Recessed Escutcheons Style: Model F1 (cULus, LPCB, VdS, CE) Pendent Model F2 (cULus, FM, LPCB, VdS, CE) Recessed Pendent Model FP (cULus, VdS, CE) Threads: 1/2” NPT or ISO 7-R1/2 Nominal K-Factor: 5.6 (80 metric) Guards &...
  • Page 4 Model F1-56 Horizontal Sidewall Sprinkler SIN RA1335 Technical Specifications Recessed Escutcheons Style: Horizontal Sidewall Model F1 (cULus, FM) Threads: 1/2” NPT or ISO 7-R1/2 Model F2 (cULus, FM) Nominal K-Factor: 5.6 (80 metric) Model FP (cULus) Max. Working Pressure: Guards & Shields (New Frames) 175 psi (12 bar) F-4 Guard (FM) 250 psi (17 bar) (cULus only)
  • Page 5 Model F1-56 Vertical Sidewall Sprinkler SIN RA1385 Technical Specifications Temperature Ratings Style: 135°F (57°C) Upright Vertical Sidewall 155°F (68°C) Pendent Vertical Sidewall 175°F (79°C) Threads: 1/2” NPT or ISO 7-R1/2 200°F (93°C) Nominal K-Factor: 5.6 (80 metric) 286°F (141°C) Max. Working Pressure: 175 psi (12 bar) 360°F (182°C) Material Specifications Guards &...
  • Page 6 Recessed Installation: Pendent Sprinklers Figure 5 2-1/4" 2-1/4" (57 mm) Dia. (57 mm) Dia. Hole in Ceiling Hole in Ceiling 1-15/16" 1-15/16" (49 mm) Dia. (49 mm) Dia. Reducing Reducing Fitting Fitting Face of Fitting Face of Fitting to Face of Ceiling to Face of Ceiling 1-1/8"...
  • Page 7 Recessed Installation: F1-56 Horizontal Sidewall Sprinklers Figure 6 1/2" (12 mm) +/- 3/8" (10 mm) Reducing 1-3/8" (35 mm) Maximum Recess Face of fitting Fitting to face of wall 4" - 12" (102 mm - 305 mm) Deflector to ceiling 2-1/4"...
  • Page 8: Installation

    Not available for 500°F (260°C) temperature rated sprinklers. Installation Maintenance Reliable Model F1 series sprinklers should be inspected and the Model F1 Series sprinklers must be installed in accordance with sprinkler system maintained in accordance with NFPA 25, as well NFPA13 and the requirements of all applicable authorities having as the requirements of any Authorities Having Jurisdiction.
  • Page 9: Ordering Information

    Guarantee For the guarantee, terms, and conditions, visit www. reliablesprinkler.com. Ordering Information Specify the following when ordering: Model • F1-56 Deflector/Orientation • Upright • Intermediate Upright • Pendent • Horizontal Sidewall • Vertical Sidewall Temperature Rating • See sprinkler technical specifications Sprinkler Finish •...
