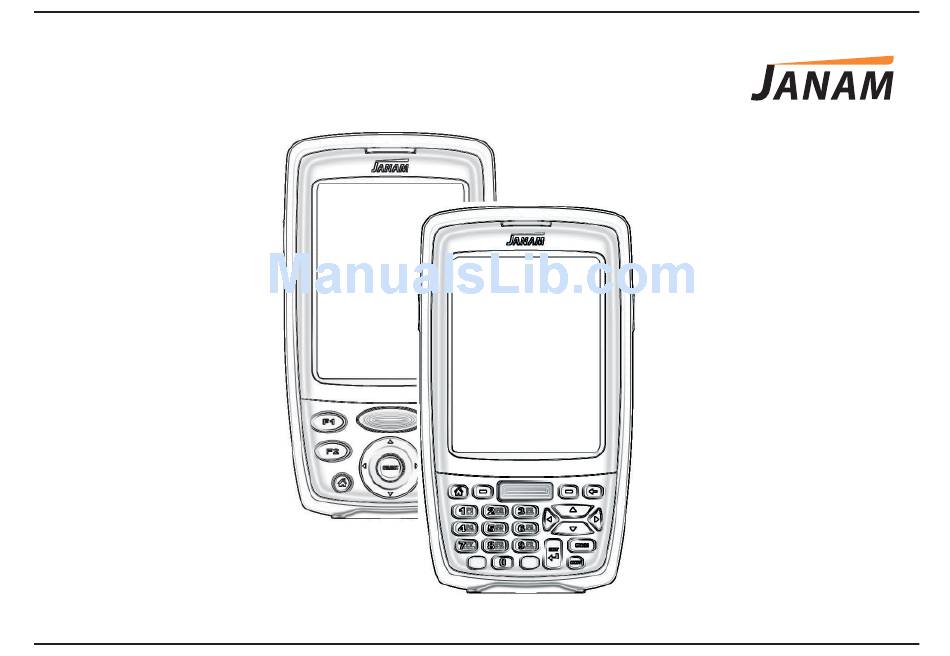

- Page 1 XP Series ™ Quick Start Guide...
- Page 2 The contents of this guide are confi dential. Copyright 2006 Janam Technologies LLC. All rights reserved. XP Series, XP20, XP30, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective owners.
- Page 3 To help you get started with your XP Series mobile computer, this guide features: Hardware Overview Installing the Battery Getting Started For additional product details visit www.janam.com ® For Palm OS software updates and information visit www.palmsource.com XP Series Quick Start Guide...
-
Page 4: Hardware Overview
Hardware Overview Power Indicator LED Connector Scan Trigger Right Trigger Left Trigger Navigation Home 10. Enter 11. Brightness/Contrast 12. Programmable 13. Function 14. Backspace 15. Alpha/Numeric Shift 16. Space 17. Shift PDA Keypad Numeric Keypad Janam Technologies... - Page 5 Hardware Overview Battery Door 5a/5b Battery Screw Reset Battery Compartment Microphone (XP30 Series) 5a. Speaker (XP30 Series) 5b. Buzzer (XP20 Series) IrDA Window Stylus Stylus Slot Lanyard Connector XP Series Quick Start Guide...
-
Page 6: Installing The Battery
2. Position the battery-lift strap, place the Lithium-ion battery and snap into place. 3. Replace the battery cover by positioning the top prongs fi rst and sliding cover into place. Tighten battery-screw by turning clockwise. Janam Technologies... -
Page 7: Getting Started
Contrast Press the brightness/contrast control on the Press and hold the yellow function key and (XP20 Series) keypad. Use stylus to adjust contrast by press left/right navigation keys. Use stylus sliding the on-screen control left/right. to adjust contrast by sliding the on-screen control left/right. - Page 8 40 Goosehill Road Cold Spring Harbor, NY 11724 Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
- Page 9 This Class B digital apparatus complies with the Canadian ICES-003. Cet appareil numerique de la Class B est conforme a la norm NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 10 To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from win- dows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Janam Technologies...
- Page 11 RF, Regulatory and Safety Approvals Parameter Specifi cation R&TTE EN 300 328:2004 EN 301 489-17:2000 EN 60950-1:2001 EN 50371:2001 This product is marked with in accordance with the Class II product requirements specifi ed in the R&TTE Directive, 1005/5/EC. The equipment is intended for use throughout the European Community. Its authorization for use in France is restricted as follows.
- Page 12 The terminal can be cleaned with a damp cloth. For European Community Users Janam Technologies complies with Directive 2002/69/EC of THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 27 January 2003 on waste electrical and electronic equipment (WEEE). Waste Electrical and Electronic Equipment Information This product has required the extraction and use of natural resources for its production.
