Summary of Contents for Janam XG200

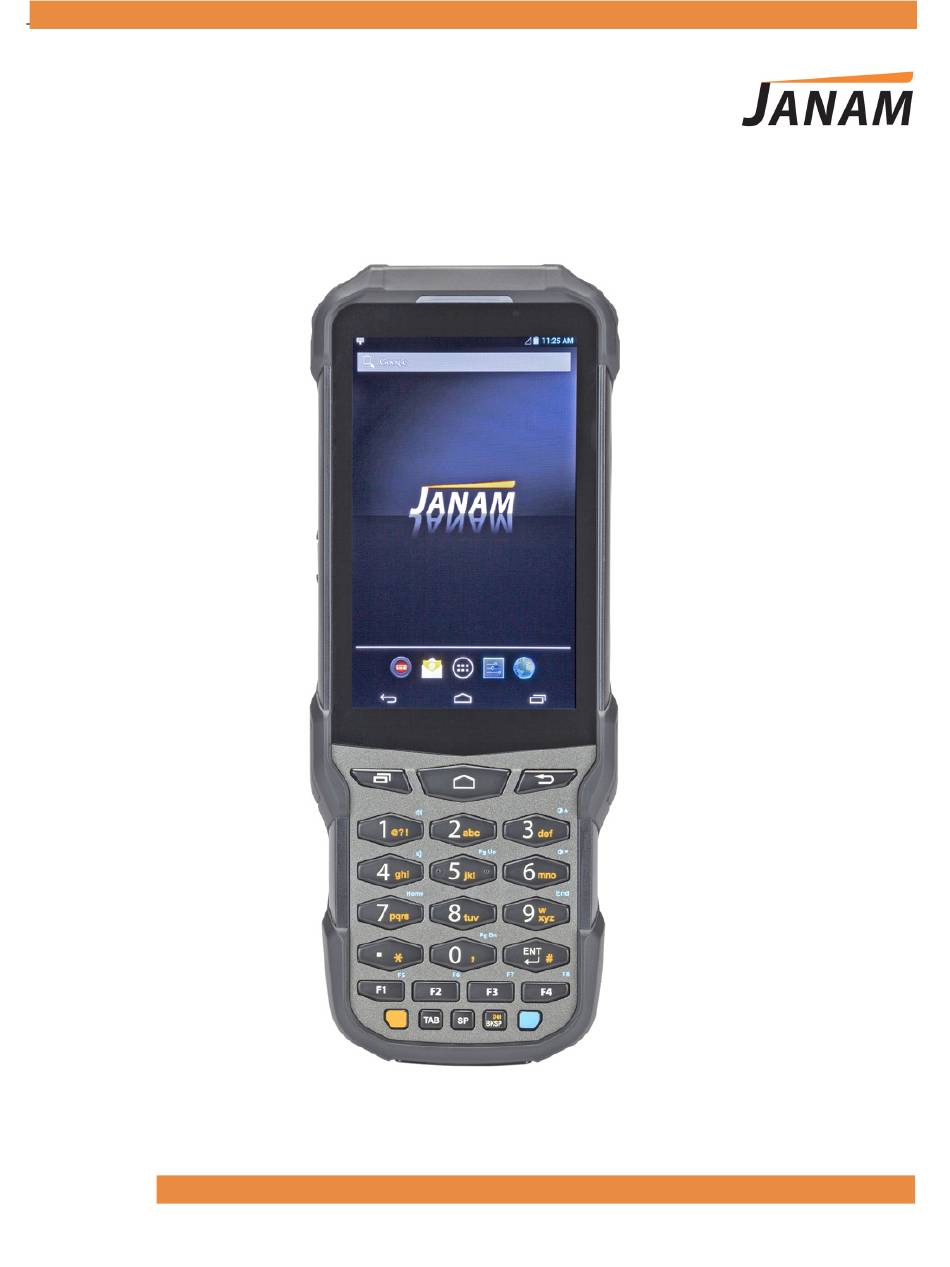

- Page 1 XG200 User Manual Technology at Work ® Version 2 April 2019 _ 2019 Janam Technologies LLC. All rights reserved.
- Page 2 Intellectual Property rights. Janam Technologies LLC will at no stage be responsible for the inability or failure of the Third Party Materials to operate on this device or in interaction with any other devices of the purchaser. To the maximum extent permitted by law, Janam Technologies LLC disclaims all liability for any claims, de- mands, suits or actions, and more specifically —...
-
Page 3: Table Of Contents
Recommended Host PC Requirements XG200 SDK Wireless Network Connection CH-PG Battery Safety Installing the Battery Introduction Charging the XG200 Battery Connecting to a WLAN network XG200 Battery Condition Information Advanced WLAN options Turning the XG200 On Turning the XG200 Off Touch Screen Navigation... - Page 4 Barcode Scanning CH-PG Regulatory and Safety Approvals 13-1 WWAN, WLAN and Bluetooth 13-2 Using the Imager WLAN and Bluetooth 13-2 Scanning with the XG200 Compliance FCC Part 15 13-3 Scan Settings Compliance Canadian ICES-003 13-4 Scan Settings Table Battery Warning 13-5...
-
Page 5: Introduction
The XG200 delivers best-in-class scan speed, ultra-fast motion tolerance and excellent reading capability for poorly printed barcodes. Janam’s XG200-ER model is one of only a few devices available with Honeywell’s industry-leading EX25 near/far imager. With breakthrough auto-focus technology and class-leading barcode reading range, the XG200-ER offers unparalleled flexibility to read virtually any kind of 1D and 2D barcode, omni-directionally, from six inches out to more than 50 feet. -
Page 6: Hardware Overview
17. Gun handle with battery LED indicator 11. Docking pogo pins 18. Scanner trigger Microphone 12. Alignment slot 19. Power key Speaker 13. Android Open Apps key Scanner trigger 14. Android Home key Janam Technologies LLC Version 2, April 2019 Introduction 1-2... -
Page 7: Getting Started Ch-Pg
Android™ operating system. It contains details and instructions for developing applications that access the XG200 embedded scanner. The development kit, which can be downloaded from Janam’s Product Zone (login required), is designed for use with the publicly available Android SDK. -
Page 8: Battery Safety
The XG200 has a user-accessible, rechargeable battery that fits into the handle of the computer. Replace only with a Janam-approved battery. There is the risk of explosion if the battery is replaced by an incorrect type. For more information on battery replacement see the janam.com website or contact JanamCare at 866-915-5311. - Page 9 User Manual Installing and removing the XG200 battery The XG200 battery is located in the gun handle of the computer. To install the battery, insert it into the gun han- dle, align the tabs on the neck of the battery with...
-
Page 10: Charging The Xg200 Battery
Charging with the (optional) Cradle Kit: 1. Insert the DC power plug into the DC power jack on the cradle. Insert the XG200 into the cradle. 2. Plug in the AC/DC power supply. The... - Page 11 Getting Started XG200 User Manual XG200 Battery Condition and Usage Information Android provides information on battery charge level in percent, estimated amount of battery charge remaining, and how much of the battery capacity has been used by various applications and device functions.
- Page 12 For information about securing the XG200 with a password or pin code, refer to Chapter 3. Unsecured: swipe up...
-
Page 13: Touch Screen Navigation
Power Key (marked red in its center). The display will turn off. To turn the XG200 back on from this state of sleep, depress the Power Key again. The welcome screen will come up, and by swiping up you will return to the last used app. -
Page 14: Screen Rotation
User Manual Screen Rotation The XG200 was designed to be used in portrait (vertical) orientation. However, many apps can also be used in landscape (horizontal) orientation. By default, the XG200’s internal sensors will automatically present a vertical or horizontal view in sync with the physical orientation of the device. If automatic... -
Page 15: Home Screen
XG200’s most often used features and applications. The home screen can consist of multiple screens. The XG200 comes with just one home screen; additional ones can be added by holding and dragging home screen icons to the left or right. -
Page 16: Home Screen Customization
You can also drag icons out of a folder. A folder with just one icon left in it will return to being an icon. Janam Technologies LLC Version 2, April 2019... -
Page 17: App Screen
Search Apps area. Function Keys The XG200 has three physical, metallic function keys with white labels located along the bottom of the display. Depressing these keys, from left to right, brings up 1) recent apps, 2) the... -
Page 18: Xg200 Setup Ch-Pg
Android 7 allows backing up various settings and data to your account in the cloud transparently. This is enabled and set up in a two step process. First, enable the process in Settings > Backup & Reset. Then tap Backup account and choose an account. Janam Technologies LLC Version 2, April 2019 XG200 Setup 3—1... - Page 19 Select check everything you want to sync. Once you are done selecting, you may to Sync now. This will start the backup/sync process. On this screen you can also remove a sync account. Janam Technologies LLC Version 2, April 2019 XG200 Setup 3—2...
-
Page 20: Soft Reset
XG200 User Manual Restoring the XG200 Data backed up to the cloud can be restored to a XG200 upon factory reset or onto a new XG200. Upon initial boot, there will be a “Welcome to your XG200” message, with the option of either setting the device up from scratch, or restoring data from another device or from the cloud. -
Page 21: Using Direct Clone Backup & Restore
Select which system settings and user applications you wish to backup. Click on Backup. You may assign a password to an individual backup. Since the XG200 does not have a storage card slot, the only backup location option is Internal Storage. -
Page 22: Android Security
XG200 Setup XG200 User Manual Security Android Security The Android operating system installed on the Janam XG200 can inherently provide a high degree of security, centering around these areas: Boot verification to guard against unauthorized data access Granular permission by app... - Page 23 (instant identification of device) In addition, there is a SmartLock feature that locks your device depending on certain circumstances. This can make using your XG200 both more convenient and more secure. On-body detection (device stays unlocked as long as it...
-
Page 24: Device Settings
XG200 Setup XG200 User Manual Device Settings The XG200 can be configured according to your personal preferences. This makes the device easy to use and helps to enhance efficiency and productivity. Display Brightness level can be adjusted manually or the XG200 can use Adaptive brightness to adjust the brightness level automatically. -
Page 25: Device Settings: Sound
You can also set Automatic rules for custom days and events. You may set the default notification alarm ringtone. You can also configure Emergency broadcast settings as well as other sounds. Janam Technologies LLC Version 2, April 2019 XG200 Setup 3—8... -
Page 26: Device Settings: Apps
Force stop the app, Disable the app, Data usage, both foreground and background App permissions, App notifications, Opening app by default, Battery usage since last full charge Memory usage App details. Janam Technologies LLC Version 2, April 2019 XG200 Setup 3—9... -
Page 27: Device Settings: Storage
Storage Touch Storage from the Settings screen to view use and space statistics for the internal storage on the XG200. Drill down to view storage used by app, clear data, or manage space. Memory Touch Memory from the Settings screen to view the average RAM memory usage during the last 3, 6, 12, or 24 hours. -
Page 28: Device Settings: Memory
Here you may change the name of a user, allow or disallow adding users when the device is locked, and also enter detailed emergency information. Janam Technologies LLC Version 2, April 2019 XG200 Setup 3—11... -
Page 29: Personal Settings Accounts
Remove account. Tap Remove ac- count to confirm deletion. Google Some XG200 users may wish to have both a Google account and a corporate, work, business or pri- vate account. If so, make sure to carefully examine all Google account settings at Settings >... - Page 30 XG200 Setup XG200 User Manual Personal Settings (continued) Languages & input To configure and customize various language and input settings of your XG200, go to Settings > Languages & input. Here you can set: Language: Select from a long list of available languages.
-
Page 31: System Settings
In a 24-hour time cycle, 1:00 pm displays as 13:00 pm. You may also opt to use an NTP (Network Time Protocol) server. Accessibility To configure features that make using the XG200 easier for people with certain physical disabilities, go to Settings >... -
Page 32: Introduction
A given physical area may have multiple wireless local area networks (WLANs), sometimes referred to as Wi-Fi hot spots, which the XG200 can see as it scans for available networks. Typically, wireless local area networks are configured with a security scheme. Wireless devices connected to a wireless network must: A. - Page 33 Wireless Network Connection XG200 User Manual Connecting the XG200 to a Wireless Local Area Network (WLAN) To initially connect the XG200 to a wireless local area network, go to Settings > Wireless & networks > WLAN. Turn WLAN networking on. The XG200 will begin searching for available Wi- Fi networks.
-
Page 34: Advanced Wlan Options
Compatible Extensions), enabling WLAN power saver mode, letting WLAN handle 802.11d geographical regulations, and setting the roaming trigger level (signal at which the device starts looking for another access point). Janam Technologies LLC Version 2, April 2019 Wireless Network Connection 4—3... -
Page 35: Introduction
There are several ways to set up your computer for wireless access and the following section details the general instructions needed to set up Bluetooth on your Janam XG200 rugged touch computer. Please note that complex or custom installations may require additional expertise from Janam’s technical support team and/or the manufacturer of the device to be paired. -
Page 36: Bluetooth Concepts
Bluetooth Concepts Bluetooth does not have to be on in order for the XG200 to function. In fact, since the Bluetooth radio consumes power, it should be turned off when it is not needed. You can see that Bluetooth is active... -
Page 37: Bluetooth Pairing
XG200 and the MacBook allows the MacBook to send files to the XG200, browse files, and the Mac can use the XG200 to connect to a network. While the Mac side is capable of browsing files on... -
Page 38: Using The Keypad Ch-Pg
Using the Keypad Introduction Janam’s XG200 rugged mobile computer offers keypad and touchscreen functionality on the same device. The Janam XG200 comes with either a 24-key numeric keypad (see below left) or a 51-key alpha-numeric keypad (see below right). Android keys Located above the keypad, the three Android keys enable you to bring up recent apps, go to the Start/Home, and back/esc. - Page 39 XG200 User Manual BLUE and YELLOW key combinations The lists below show the default button assignments for BLUE key combinations on the Janam XG200’s hardware buttons. These default assignments can be programmed to execute different functions using Program Buttons app in the Tools folder.
-
Page 40: Function Reprogramming
Here’s an example: Pressing BLUE + F1 on either XG200 keypad is like pressing F5 if the XG200 keypad had a physical F5 key. But what does F5 do? Nothing, unless a particular function has been assigned to it. -
Page 41: Introduction
Google account. It simply serves as the XG200’s email app that can accommodate a single email account or multiple accounts. Before setting up an email account on the XG200, be sure that a core email address is active with an email service provider or within a private enterprise (corporate) network to which the XG200 user has access and authorization. -
Page 42: Manual Email Setup
During Email Setup During email setup you will be asked how often you want your XG200 to check with your email provider and update email. “Never” means you’ll do it manually. Note that if you set up a Gmail account that you’re... -
Page 43: General Email Settings
Server settings Incoming and outgoing server settings may change, and this is where it’s done, including password changes for email. Janam Technologies LLC Version 2, April 2019 Email 7—3... -
Page 44: Email Inbox
Deleting an Email account: To delete an email account, go to Settings, tap on Accounts, tap the desired account, make sure sync is off, tap account again, tap for popup, select Remove account. Janam Technologies LLC Version 2, April 2019 Email 7—4... -
Page 45: Backup & Restore
Google Play Store or other sources. The XG200’s Tools folder contains a few examples of such tools. Backup & Restore Backup &... -
Page 46: Power Launcher
Tap to drill down into any area. Take Bug Report If something goes wrong with the XG200, this utility can be used to record device infor- mation for analysis and de- bugging. Program buttons Program Buttons allows users... -
Page 47: Barcode Scanning Ch-Pg
XG200 Series barcode scanning technologies. Therefore, some of the barcode functions described in this chapter may not apply to the XG200 version you are using. For that reason, and depending on the configura- tion of your XG200, some information in this chapter may not apply. -
Page 48: Scan Settings
XG200 User Manual Scan Settings Tools > Scan Settings to configure the XG200’s scan engine and software. This is where you set how the scanner will work, how it will announce and com- municate results, what all the scan operation settings... -
Page 49: Scan Settings Options
For detailed technical information on the impact of redundancy, security and quiet zone levels, as well as other scan-related settings, please contact Janam Support. Janam Technologies LLC Version 2, April 2019 Barcode Scanning 9—3... - Page 50 Barcode Scanning XG200 User Manual Symbologies The XG200’s scanner can read and decode virtually any 1D or 2D bar code in milliseconds. Settings > Scan Settings > Symbologies shows more than 40 code types that are not only supported, but can additionally be configured with their own options and extensions (see options below).
-
Page 51: Scan Demo App
A range of 4–10 inches (10–25 cm) from the bar code is recommended. To scan, pull the XG200’s scan trigger button on the handle or tap “Scan start” on the ScanDemo screen Aim the barcode imager beam at the target barcode. The aiming dot should be centered in the bar code to achieve quickest and most accurate decoding. -
Page 52: Scan Wedge App
For example, with Scan Wedge active, the XG200 can be used to scan barcode data directly into a Microsoft Word or Excel template, or any other app that accepts input data. -
Page 53: Update From Local Storage
You can then select and start the update. If no update file is found, the XG200 will display “$No result>” and state that an update file must either be in internal storage or the top directory of an inserted SD card (the XG200 does not have an SD card slot). - Page 54 If ready to proceed with the update, tap CONTINUE. The update will then be installed onto the XG200. When finished, the FOTA Client will display the newly installed version, and report whether this is now the latest version, or...
-
Page 55: User Applications Ch-Pg
My Apps & Games. This means that purchases made by a user for another Android device are downloadable to the XG200 as long as the purchased app supports the XG200’s hardware and software. You can elect to list... -
Page 56: Google Play Store Settings
This way, systems in- tegrators or IT personnel can configure units for specific use and applications, eliminating the temptation that comes with a full load of consumer apps. Janam Technologies LLC Version 2, April 2019 User Applications 1 1—2... -
Page 57: Xg200 Specifications
Specifications XG200 User Manual Janam XG200 Specifications TECHNICAL Operating System Android 7 Processor Qualcomm Snapdragon™ 410 quad-core CPU @1.2GHz Memory 2GB RAM/16GB Flash Expansion Power 3.63V 6300mAh user-accessible rechargeable Li-ion battery PHYSICAL Dimensions 8.05” L x 3.11” W x 6.88” D / 205mm L x 79mm W x175mm L Weight 20.7oz / 586g including battery... -
Page 58: Regulatory And Maintenance Ch-Pg
Be sure to make backup copies of all important data on other media to protect against data loss. Follow all usage, charging and maintenance guidelines in the Product User Guide. If you have ques- tions, contact Janam. For a copy of the Product User Guide, visit the online Resource Center at www.janam.com. -
Page 59: Wlan And Bluetooth
Regulatory and Maintenance XG200 User Manual RF, regulatory and safety approvals XG200 with WLAN and Bluetooth Parameter Specification 47 CFR FCC Part 15, Subpart B, Class B • FCC Part 15, Subpart C • FCC Part 15, Subpart E • FCC 47 CFR Part 2 Canada ICES-003:2012 Issue5, Class B;... - Page 60 Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Hereby, Janam Technologies LLC declares that this product is in compliance with the essential requirements and other relevant provisions of Directive, 1999/5/EC. The equipment is intended for use throughout the European Community.
-
Page 61: Battery Warning
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. • To fully disengage the power to the unit, please disconnect the power cord from the AC inlet. Janam Technologies LLC Version 2, April 2019 Regulatory & Maintenance 13—4... -
Page 62: Troubleshooting
Check the battery charge level. My device doesn’t charge properly Make sure you are using a Janam Technologies approved charger. Make sure that your battery is not completely discharged; if the battery is completely discharged, it may take around 20 minutes to display the battery charger indicator on the screen. - Page 63 Deactivate Bluetooth, WLAN, or GPS when not in use. The device sometimes gets hot This heating is a normal consequence of the CPU handling excessive data. Ending above actions will make your device return to normal temperatures. Janam Technologies LLC Version 2, April 2019 Troubleshooting 14—2...
