Laguna Tools DAKE 33-672 Instruction Manual

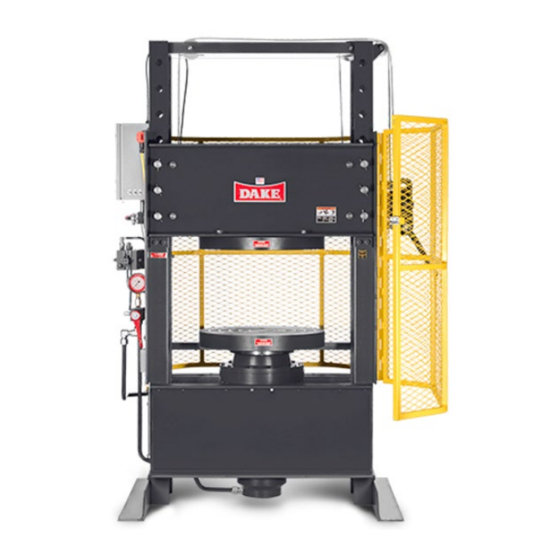

150 ton electric tire press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

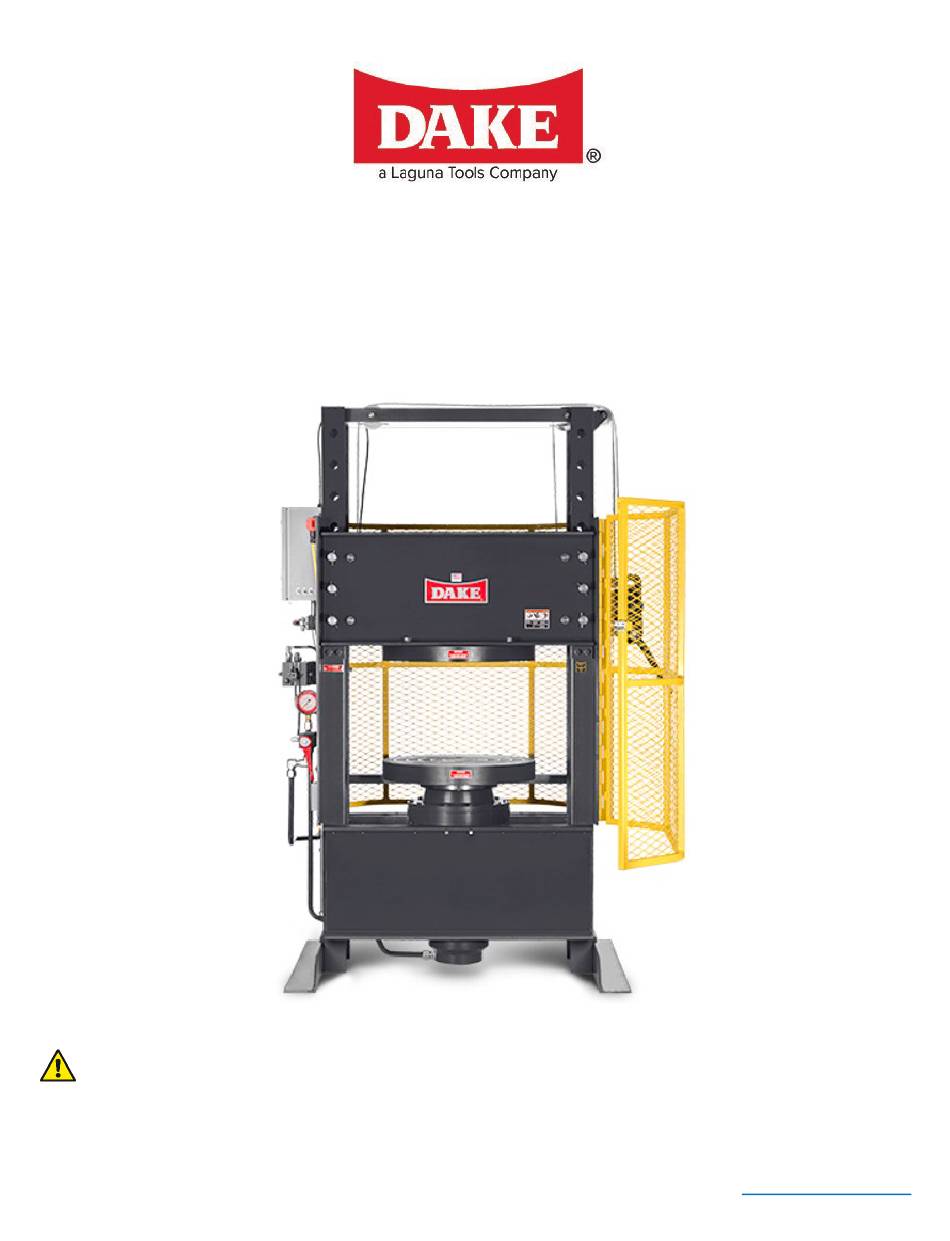

150 TON ELECTRIC TIRE PRESS
Model 33-672
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow safety
instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAKE 33-672 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools DAKE 33-672

Summary of Contents for Laguna Tools DAKE 33-672

  • Page 1 150 TON ELECTRIC TIRE PRESS Model 33-672 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...

  • Page 2: Table Of Contents

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS SAFEGUARDING THE POINT OF OPERATION ............2 SPECIFICATIONS ......................3 SAFETY ........................4 SET UP ......................... 5 OPERATION ......................... 5 MAINTENANCE ......................6 LUBRICATION ..................... 6 REPLACING HYDRAULIC OIL ................

  • Page 3: Safeguarding The Point Of Operation

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards.

  • Page 4: Specifications

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Model Number 933672 Capacity 150 Ton Horsepower 10 HP Voltage 220V/440V 3-Phase Stroke 18” Ram Travel 18” w/ limit switch Head Channel Travel 15” Width between Uprights 36” Max Daylight 36”...

  • Page 5: Safety

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your press be alert to the potential for personal injury. Employer is responsible to perform a hazard/PPE assessment before work activity. Follow recommended precautions and safe operating practices.

  • Page 6: Set Up

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP 1. Anchor press to floor using 5/8” holes on the base angles of the press. 2. Have an electrician connect starter to power source, pump can rotate in either direction. CAUTION: Only a licensed electrician that follows local and state laws is authorized to make an electrical connection to this machine.

  • Page 7: Maintenance

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE LUBRICATION • Keep all working parts of the press well-oiled for easier operation. • Keep a light film of oil over the entire surface of the ram to prevent rust. REPLACING HYDRAULIC OIL Recommended to replace hydraulic oil every 6 months of machine use.
  • Page 8 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com C. Press will not develop rated tonnage 1. Dirt under release valve ball. See B-2, previously. 2. Worm leather cup. See B-3, previously. 3. Relief valve set low. The relief valve has been set at the factory to bypass oil back to the reservoir when the press reaches its rated capacity.

  • Page 9: Electrical Diagram

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM Drawing No: 87489 933672 REV032022...

  • Page 10: Hydraulic Diagram

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HYDRAULIC DIAGRAM Drawing No: 80490 With pump (2) running and valve (4) centered pump (2) delivery is returned to reservoir (7). For Pressing: valve (4) is shifted, directing pump (2) delivery to bottom of cylinder (6). Ram advances until contacting work, then builds pressure to rated capacity of the press, when press hits capacity then relief valve (3) opens, returning pump delivery to reservoir (7).

  • Page 11: Exploded Views & Parts Lists

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PARTS LISTS 933672-2 - 150 Ton Electric Tire Press, 230V 3-Phase Part No. Qty Description Remarks 61063R Angle Guide - Right Also order 61063L 61063L Angle Guide - Left Also order 61063R 87451P Welding Pad...
  • Page 12 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Part No. Qty Description Remarks High Voltage. Can Cause Severe Injury 84395 Label, Danger Or Death. Service By 79956 Tag, No Oil in Reservoir 76936 Label, Made In U.S.A. 75582 Ratchet Handle Assembly 716807...
  • Page 13 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 707594A 150 TON TIRE PRESS WORKHEAD ASSEMBLY Item Part No. Qty Description 8687P Piston, 150 Ton 52478A Retainer 31871 Guide, Piston, 43647 Lock Washer (1/2) 43916 Hex Nut (1/2-13) 43359 Hex Cap Screw (1/2-13 x 4-1/2) 8686P...
  • Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE HOIST ASSEMBLY Item Part No. Description Cable Drum 43983 Ring, Retaining (1-1/4” Shaft Size) Worm, Worm Shaft Key (1/4 x 1/4 x 3-7/16) 43982 Ring, Retaining (1” Shaft Size) Gear, Worm Hoist Frame Worm Shaft...
  • Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 710557 RELEASE VALVE ASSEMBLY Item Part No. Description 1752P Release Valve Block 1936 Valve, Ball 1937 Washer, Valve Rod Packing 1931P Packing Nut 47946P Release Valve Rod 2230A Handle, Release Valve Spindle Washer (1-1/2"...
  • Page 16 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 716807 – ELECTRICAL CONTROL ASSEMBLY 220V Part No. Description 997P Spacer, (Hoist Frame) 17910 Switch, Toggle 35941 Limit Switch Assy, Micro 46743 Limit Switch Lever, Micro 65860 Heater Overload 67040 Starter Enclosure 75151...

  • Page 17: Ordering Information

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 715687 HYDRAULIC CONTROL ASSEMBLY Part No. Description Remarks 87424 Spacer - 2" Used with Bracket #3853 Fitting, Tube, 37 Deg. (Straight 3/8 x 3/8 73425 NPTF) 72037 Fitting, Tube, 37 Deg. (Swivel Nut Elbow 1/2) Mounted On Upright, Stop on Valve 710557 Release Valve Assembly,...
