Laguna Tools DAKE 75H Instructional Manual

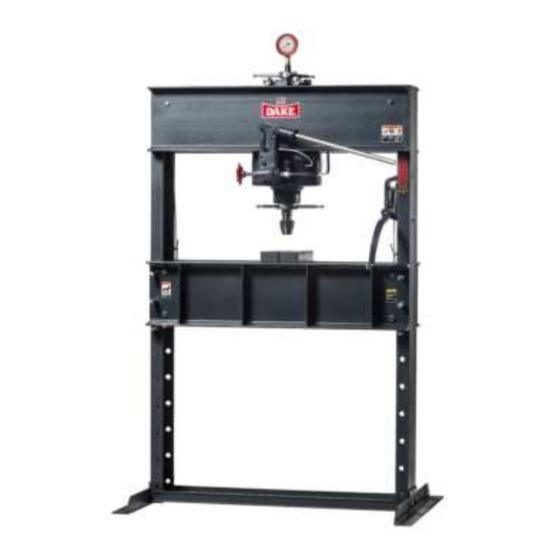

Hand-operated hydraulic press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DAKE HAND-OPERATED HYDRAULIC PRESS
Model 75H
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
Grand Haven, MI 49417

Advertisement

Table of Contents
loading

Related Manuals for Laguna Tools DAKE 75H

Summary of Contents for Laguna Tools DAKE 75H

  • Page 1 DAKE HAND-OPERATED HYDRAULIC PRESS Model 75H INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Fax: 800.846.3253 Grand Haven, MI 49417...

  • Page 2: Table Of Contents

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ..........4 SPECIFICATIONS ....................6 SAFETY ........................ 6 SET UP ......................... 8 FILLING PRESS WITH OIL ................

  • Page 3: Dake Standard Limited Warranty

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user.
  • Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices. (b) Defects or malfunctions resulting from improper installation or failure to operate or maintain the unit in accordance with the printed instructions provided.

  • Page 5: Return & Refund Policy

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user.
  • Page 6 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. Dake strongly recommends that Dake press users obtain a copy of the current American National Standard Institute (ANSI) B11.2 standard, for a more complete understanding of their responsibilities.

  • Page 7: Specifications

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Number 907003 Ram travel 4-1/2” Capacity 75 tons Screw travel 7” 44” 29-5/8” Width between uprights Horizontal work head travel Width between table channels 8-1/4” Height 87” Min ram to table 6”...
  • Page 8 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com • This machine is intended to be operated by one person. This person should be conscious of the press ram movement not only for themselves but also for persons in the immediate area of the machine.

  • Page 9: Set Up

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP For shipping convenience, the gauge, pump handle, hoist crank, screw nose and base angles were removed from the press. Assemble these parts to the press in the following order: 1.

  • Page 10: Operation

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OPERATION CONTROLS Hand Crank: (item 62 & 63) on the side of the press is to assist in lowering and raising the table of the press once the table pins are removed. Do not forget to replace the pins once you have the table at the desired height.

  • Page 11: Troubleshooting

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING PUMP PACKING LEAKAGE If oil leaks past the pump packing, tighten the pump packing nut (item 9) until the pump handle moves with resistance, then slack off just enough to cause the handle to stay in position by itself.

  • Page 12: Other Troubleshooting

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OTHER TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1) Reservoir (Item 22) is over filled. Oil leaking from 1) Drain excess oil. 2) Piston Packing (Item 34) is worn piston oil seal. 2) Replace Piston Packing.

  • Page 13: Exploded Views & Parts Lists

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PARTS LISTS HAND PUMP ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Pump Body Retaining Ring (3/8”) 43972 Ball Valve (Ø1/2”) Pump Plunger Handle Socket Pin Hex Cap Screw...
  • Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WORKHEAD ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Pump Gasket Piston Leather Reservoir (Serial No. < 192522) Screw Nose – Flat Packing Ring 17942 (Serial No.
  • Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GENERAL ASSEMBLY 907003 REV112019...
  • Page 16 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GENERAL ASSEMBLY PARTS LIST Item Item Part Name Part No. Qty Part Name Part No. Qty Screw Adjusting Wheel 716521 Pulley Yoke Pulley Bolt 43361 Gauge 71267 Pulley Nut 43916 Bushing 81384...
  • Page 17 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE HOIST ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Hex Nut (3/8”-16) Hex Cap Screw 43912 43335 (Not Shown) (3/8”-16 x 2-3/4”) Drum Shaft Hand Crank Assembly 701653 Drum Key...

  • Page 18: Ordering Information

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
