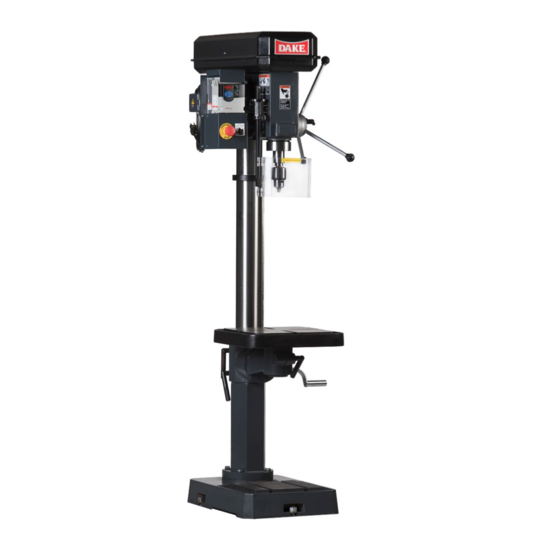

DAKE DRILL PRESS
Model SB-32V
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools Dake SB-32V
Summary of Contents for Laguna Tools Dake SB-32V
- Page 1 DAKE DRILL PRESS Model SB-32V INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Fax: 800.846.3253 Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SPECIFICATIONS ....................5 SAFETY ........................6 SET UP ........................9 UNCRATING AND INSTALLATION .............. 9 GROUNDING INSTRUCTIONS .............. -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 6: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS SB-32V Model 977400-1V Number 110V Single Phase Voltage 2 HP Horsepower Floor Drill Type 1-1/4” Max. Drill Capacity Spindle Taper 5-1/4” Spindle Travel 18” Max. Work Diameter Variable Speed Speeds 46 - 3,473 RPM Spindle Speed Range... -
Page 7: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your machine be alert to the potential for personal injury. Carefully read all safety messages in these instructions and on your machine safety signs. - Page 8 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com • Use the right tool. Do not force the tool or use the machine to do a job for which it was not designed. • Do not wear gloves, neckties, necklaces, rings, or loose clothing. Non-slip footwear is recommended.
- Page 9 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com • All visitors should be kept a safe distance from work area. • Make workshop kid proof with padlocks, master switches, or by removing the starter key. • Reduce the risk of accidental starting. Make sure switch is in off position before plugging •...
-
Page 10: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP UNCRATING AND INSTALLATION 1. Location of the drill press should be in a well-lit area with correct power supply and that will not interfere with other machines or operations. 2. -
Page 11: Controls
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com CONTROLS Emergency Stop Button: When this is pressed the power to the motor and controls is disconnected. The frequency drive stores energy, this will remain lit for approximately 20 seconds. -
Page 12: Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OPERATION TAPPING OPERATIONS USING REVERSE FEATURE 1. Drill the initial hole on the drill press for accuracy of diameter. If diameter is 1/2” or larger drill a pilot hole about half that diameter first. 2. -
Page 13: Installation Of Drill Bit
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com INSTALLATION OF DRILL BIT A drill bit with a shaft of at least 1” long should be used to allow correct chuck jaw contact. If the shaft is under 1” do not insert bit as far into the chuck where it allows jaw contact with the drill flutes. -
Page 14: Feed Depth Adjustment
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE SWING ADJUSTMENT 1. To swing the table up to 360°, loosen the clamp release bolt and swing the table to the desired position. 2. After table is in the correct position, tighten clamp release bolt securely. Note: Never swing the table if any material or fixturing is on it. -
Page 15: Work Holding
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WORK HOLDING When drilling directly on the table surface it is recommended that a piece of wood or plywood be clamped securely to the table under the work piece. This will minimize splintering or burring as the drill breaks through the work. - Page 16 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Speed Adjustment Guide: RPMs RPMs RPMs RPMs RPMs RPMs RPMs RPMs RPMs Pulley Steps 10Hz 20Hz 30Hz 40Hz 50Hz 60Hz 70Hz 80Hz 90Hz 1 – 7 1 – 6 2 –...
-
Page 17: Maintenance
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Proper drill speed for a given drill bit size: Material Type Alum. & Cast Steel Tool Steel Cast Iron Mild Steel Copper Drill Dia. 1/16” 2,445 3,665 4,890 6,110 12,225 1/8”... -
Page 18: Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Machine not plugged in Plug in to proper receptacle Clear error by turning drill off Frequency drive has an error and back on Too long or not correct Remove extension cord and Machine does not turn on extension cord... -
Page 19: Electrical Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM 977400-1V REV012021... -
Page 20: Exploded Views & Part Lists
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PART LISTS 977400-1V REV012021... - Page 21 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item No. Part Description Part No. Base 301041 Flange 301043 Spring Washer (4x) 13mm Screw (M13 x 16mm L) 300999 Column 301045 Rack 301046 Handle 301048 Clamp Bolt 301049 Clamp Bolt 301051 Table Arm...
- Page 22 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item No. Part Description Part No. Bearing 6203Z 300987 Table 301096 Quill 301097 Bearing 300990 Bearing 300989 Spindle 301100 Arbor 301102 Seal Wedge 301103 Belt Cover Interlock Switch 300992 Motor 300994 Plexiglass Chuck Guard...
-
Page 23: Ordering Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Parts not shown: Part Description Part No. Qty. Cord set with Plug 300529 Motor Grommet 300540 Contact Block N.O. 301782 Metal Latch 301785 Cable 4 Wire 302683 Bolt for Mounting Bracket (5/16”-18 x 3/4") 43314 Washer for Mounting Bracket (5/16”...
