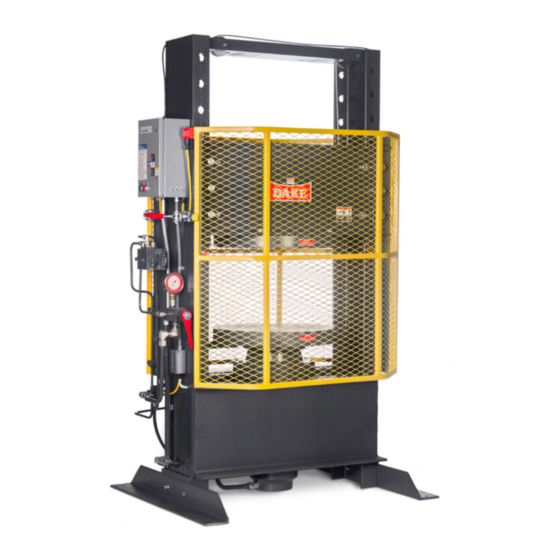

150 TON ELECTRIC TIRE PRESS
Model 33-493
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow safety
instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE 33-493
Summary of Contents for Laguna Tools DAKE 33-493

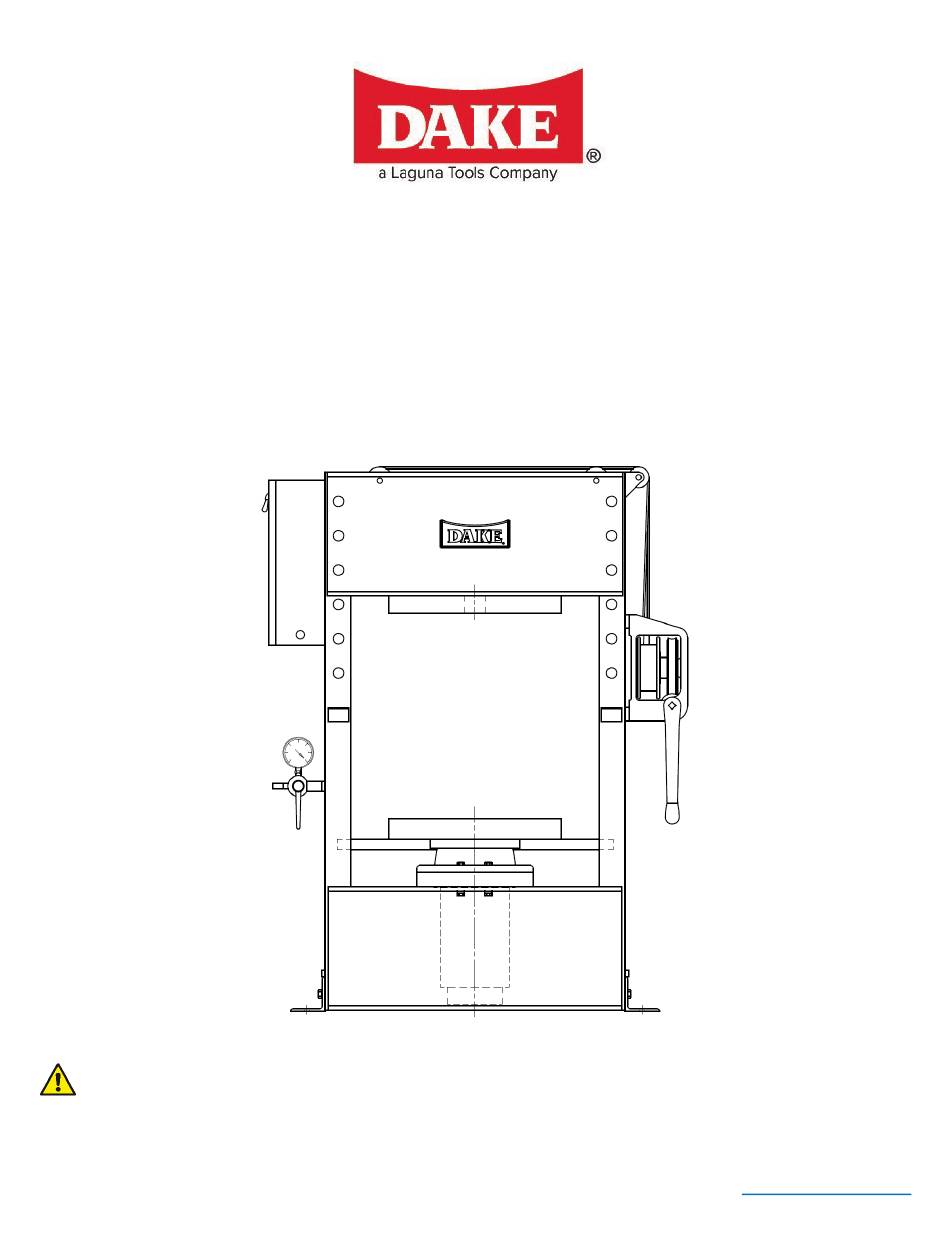

- Page 1 150 TON ELECTRIC TIRE PRESS Model 33-493 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS SAFEGUARDING THE POINT OF OPERATION ............2 SPECIFICATIONS ......................3 SAFETY ........................4 SET UP ......................... 5 OPERATION ......................... 5 MAINTENANCE ......................5 LUBRICATION ..................... 5 REPLACING HYDRAULIC OIL ................ -
Page 3: Safeguarding The Point Of Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. -
Page 4: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Model Number 933493 Capacity 150 Ton Horsepower 2 HP Voltage 220V/440V 3-Phase Ram Travel 12” Width between Uprights 36” Max Daylight 30” Platen Diameter 25” Pressing Speed 2-3/4 IPM Return Speed Gravity Base... -
Page 5: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your press be alert to the potential for personal injury. Employer is responsible to perform a hazard/PPE assessment before work activity. Follow recommended precautions and safe operating practices. -
Page 6: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP 1. Anchor press to floor using 11/16” holes on the base angles of the press. 2. Fill press with oil. We recommend DTE Mobil 24 or equivalent hydraulic oil. 3. -
Page 7: Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING When performing any maintenance make sure proper lockout procedure is followed. When disconnecting any parts of this machine be extremely careful that all parts are clean to prevent entrance of dirt in the hydraulic system. A. - Page 8 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com D. No ram movement. 1. Release Valve is open: Be sure release valve is firmly closed. 2. Insufficient oil: This is not a likely to be the issue on a tire press but if the press will only make a fraction of its rated stroke and no more, check the oil level in the reservoir.
-
Page 9: Electrical Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM Drawing: #61062 933493 REV122022... -
Page 10: Hydraulic Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HYDRAULIC DIAGRAM Drawing: #59600 Item Part No. Description 47343P Reservoir 301800 Motor 301756 Pump 29650 Relief Valve 710557 Release Valve 71268 Gauge 707070A Workhead 933493 REV122022... -
Page 11: Parts Lists
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com PARTS LISTS MAIN ASSEMBLY Part No. Description 75151 Connector, Cord 63565 Decal, Tire Press 710458 Frame Assembly 300168 Ganged Warning Label 66243 Heater Overload – Voltage Specific 710459 Hydraulic Control Assembly 710444 Hydraulic Pumping Unit 84487... - Page 12 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAIN ASSEMBLY Part No. Description 302816 Safety Pin 43365 Screw (5/8-11 x 1-3/4) 70277 Screw, Drive (#4 x 5/16") 43349 Screw, Hex Cap (1/2-13 x 1-1/2) 43373 Screw, Hex Cap (3/4-10 x 2) 43326 Screw, Hex Cap (3/8-16 x 3/4) 43348...
- Page 13 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 707070A Workhead Assembly – New Style Item Part No. Description 1796P Piston 52478P Retainer 31871 Guide, Piston 43647 Washer, Lock (1/2”) 43419 Screw, Soc Cap (1/4-20 x 2) 43359 Screw, Hex Cap (1/2-13 x 4-1/2) 1793P Cylinder...
- Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 707070 Workhead Assembly – Old Style Item Part No. Description 1796P Piston 52478P Retainer 31871 Guide, Piston 43647 Washer, Lock (1/2”) 43916 Screw, Soc Cap (1/4-20 x 2) 43359 Screw, Hex Cap (1/2-13 x 4-1/2) 1793P Cylinder...
- Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 710459 HYDRUALIC CONTROL ASSEMBLY Part No. Description 71268 Gauge 710557 Release Valve Assembly 47947P Release Valve Rod Stop 43334 Screw, Hex Cap (3/8-16 x 2-1/4) 47948P Spacer Release Valve 712019 Tube Assembly –...
-
Page 16: Ordering Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 700111-S TABLE HOIST Item Part No. Description Cable Drum 43983 Ring, Retaining (1-1/4” Shaft Size) Worm, Worm Shaft Key (1/4 x 1/4 x 3-7/16) 43982 Ring, Retaining (1” Shaft Size) Gear, Worm Hoist Frame Worm Shaft...
