Summary of Contents for imex E60

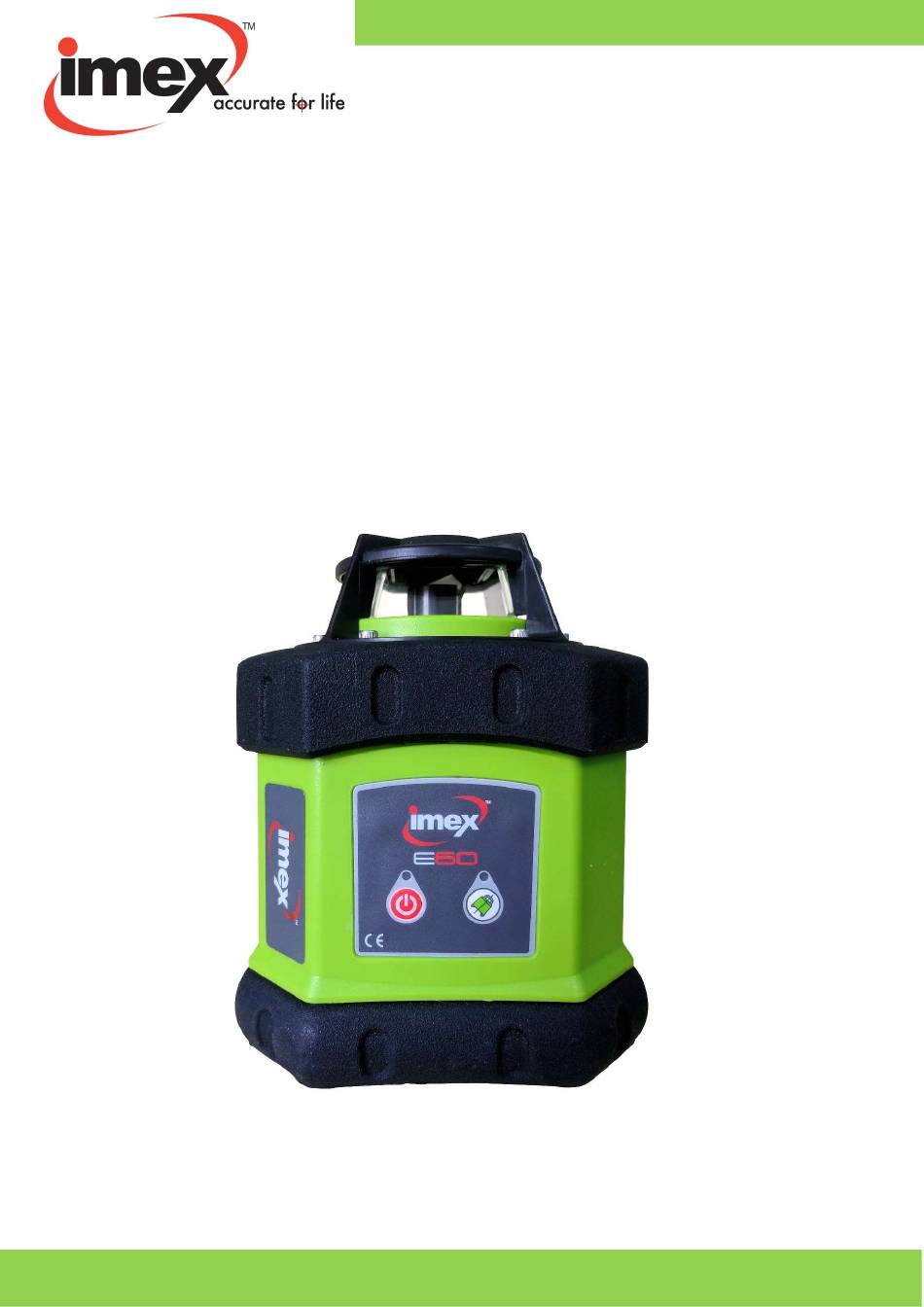

- Page 1 Quick Start Manual ROTARY LASER LEVEL QUICK START INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
User Manual before you switch on the product. Product The serial number of your E60 is indicated on the base of the laser level. Please keep this recorded in your manual and Identification always refer to this information, should you need to contact your Imex distributor. -
Page 3: Instrument Overview
1. Instrument Overview 1.1 E60 Laser Unit Rotary Laser Aperture Protective Lighthouse Power Indicator Tilt Warning Indicator Power On/Off Tilt Warning Tripod Mount 1.2 LR1 Laser Detector Laser Sensor LCD Display Clamp Power On/Off Speaker On/Off Course/Fine Detection Speaker - 2 -... -
Page 4: Directions Of Use
LED indicator will light. Mode When the TWS is activated on the E60, if the unit is knocked or interfered with, the laser will stop spinning and the TWS indicator light will flash. The laser will then need to be reset by the operator, before the laser will begin to spin again. -
Page 5: Using Your Detector
LCD will show horizontal line once the level position is located 3. Batteries General The E60 is supplied with 4x AA 1.5V Alkaline batteries The LR1 Receiver is supplied with 1 x 9V battery Battery Placement When putting battery into the laser unit, please ensure correct polarity of terminals. -
Page 6: Accuracy
Place the E60 on a flat, level surface or tripod approximately 30m from a wall. Align the first axis so that it is square to the wall. Allow the E60 to self- level completely and it will begin to rotate. -
Page 7: Care & Maintenance
5. Care and Maintenance Transport When transporting the E60 always ensure that it is carried in the original foam lined carry case. Never transport the unit loose in your vehicle as the shock and vibration will affect the accuracy and could knock it out of calibration. - Page 8 © Copyright Imex Group International 2018 - 7 -...
