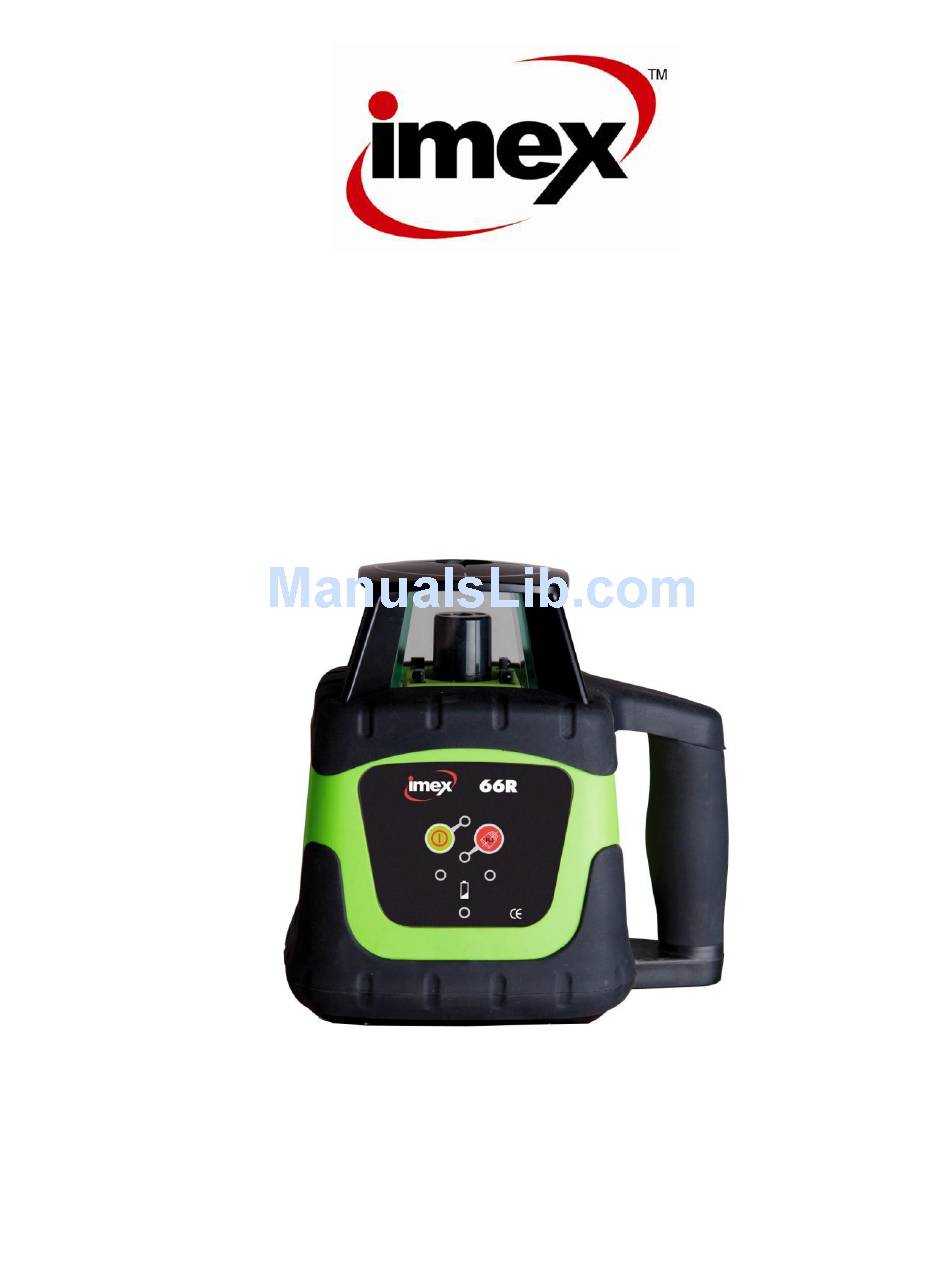

- Page 1 IMEX 66R ROTATING LASERS OPERATION MANUAL...
-
Page 2: Operating Manual
OPERATING MANUAL ROTATING LASER IMEX 66R Introduction Congratulations on your purchase of a quality Imex rotating laser. These lasers have been designed for the professional and incorporate the latest laser technology with a robust and simple construction for years of trouble-free use. -
Page 3: Table Of Contents
OPERATING MANUAL ROTATING LASER IMEX 66R Contents Page 1. About the Instrument – Functions 2. Basic Operation 3. Batteries 4. Checking Accuracy 5. Trouble Shooting 6. Warranty, Service and Care 7. Technical Specifications... -
Page 4: About The Instrument - Functions

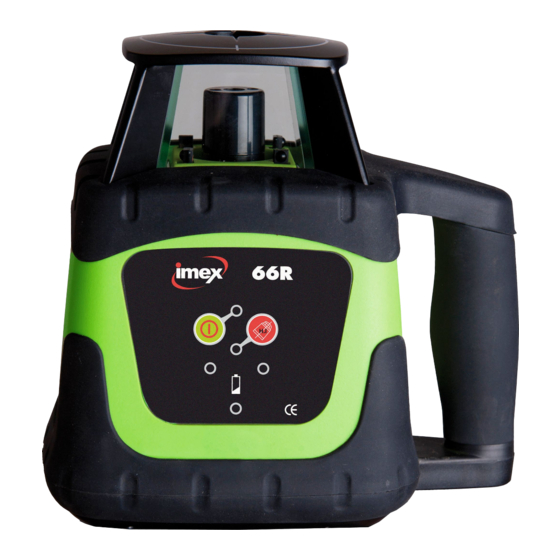

1. About the Instrument - Functions 1.1 Instrument Overview Laser Module Handle Laser Detector Lighthouse Reception Window Beam Windows Control Panel Staff Bracket Rubber Sheathed base 1.2 Control Panel On/Off switch On/Off light H.I. Out of level warning button and light Leveling lights Battery indication light... -
Page 5: Basic Operation
1.3 Function The instrument is equipped with a semi-conductor diode with wavelength of 635nm. The laser beam is clearly visible, and the laser module rotates freely to form a laser scanning surface. In the upright position, ideally placed on a standard aluminium tripod the laser beam emits a horizontal line which can be detected by the instruments receiver/detector. - Page 6 2.2 Receiver Set-up Using the bracket included, mount this onto a staff or grade rod. Turn the receiver on and raise or lower the receiver on staff until it makes a continuous beeping sound. This is the point level with the instrument. The receiver has two settings;...
-
Page 7: Batteries
3. Batteries The instrument is powered by 4 DC4.8-6V Nimh rechargeable batteries that allow for approximately 20 hours continuous use in standard conditions (20º- 25º) Alternatively you can use the alkaline battery pack supplied. 3.1 Battery Situation The battery case is located on the base of the instrument. If changing batteries;... -
Page 8: Checking Accuracy
4. Checking Accuracy Your Imex instrument has been pre-set and calibrated for accuracy before dispatch and should perform within the stated accuracy tolerance in standard conditions. However if the instrument is knocked, poorly transported or mistreated in any way the accuracy may be compromised and unit may need re-calibration. -
Page 9: Trouble Shooting
5. Trouble Shooting Problem Possible Cause/Solution Out of level - Check that instrument is within 5ºof alert – unit won’t level, before switching on self level - Check that manual level switch is not - Check that unit hasn’t been bumped or moved Low battery light - Re-charge batteries... -
Page 10: Warranty Service And Care
6. Warranty Service and Care 6.1 Warranty The Imex rotating laser range is covered with a 5 year warranty as detailed on the warranty form. For registration please visit: www.imexlasers.com 6.2 Service and Calibration It is recommended that in general use, laser equipment should be calibrated by a registered service centre every 6 months. -
Page 11: Technical Specifications
7. Technical Specifications Model 66R Red Beam Horizontal/Vertical Horizontal only Water proof IP64 Self-Leveling Range ±5 DC 4.8-6v (Ni-MH) / 4 ‘C’ cell alkaline Power Accuracy 2mm @ 30m 20 hours (Ni-MH) Diam 400m with Working time between charge 60 hours (Alkaline) - Page 12 Copyright © International Measuring Equipment 2015 AU: T: 1800 669 110 www.imexlasers.com.au info@imexlasers.com.au UK: T: +44 (0)115 9440399 www.imextools.co.uk sales@imextools.co.uk...
