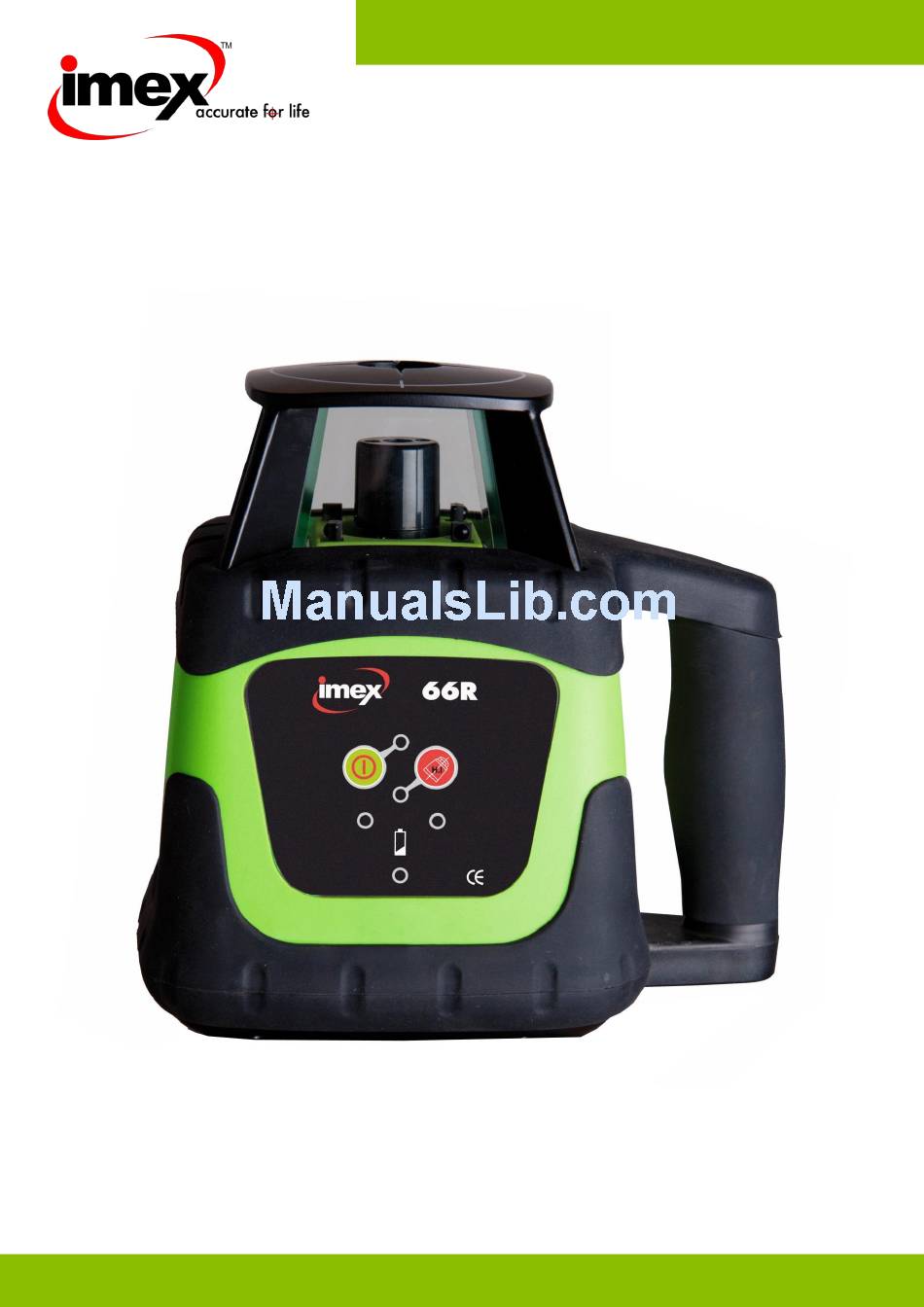

- Page 1 Imex 66R User Manual Version: 02.1 English Page | 1...
-
Page 2: Table Of Contents
Read carefully through the User Manual before you switch on the product. The serial number of your 66R are indicated on the product. Please keep these recorded in your manual and always refer to this information should you need to contact your Imex distributor. -
Page 3: Safety Directions
1. Safety Directions 1.1 General Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them. -
Page 4: Definition Of Use
1.4 Responsibilities Imex Group International UK Ltd hereinafter referred to as Imex, is responsible for Manufacturer of the supplying the product, including the user manual and original accessories, in a safe product condition. -
Page 5: Hazards Of Use
If you open the product, either of the following actions may cause you to receive an WARNING electric shock. • Touching live components • Using the product after incorrect attempts were made to carry out repairs Precautions: Do not open the product. Only Imex service workshops are entitled to repair these products. Page | 5... -
Page 6: Laser Classification
Always prevent access to the product by unauthorised personnel. WARNING Only Imex authorised service workshops are entitled to repair these products. High mechanical stress, high ambient temperatures or immersion into fluids can WARNING cause leakage, fire or explosions of the batteries. -

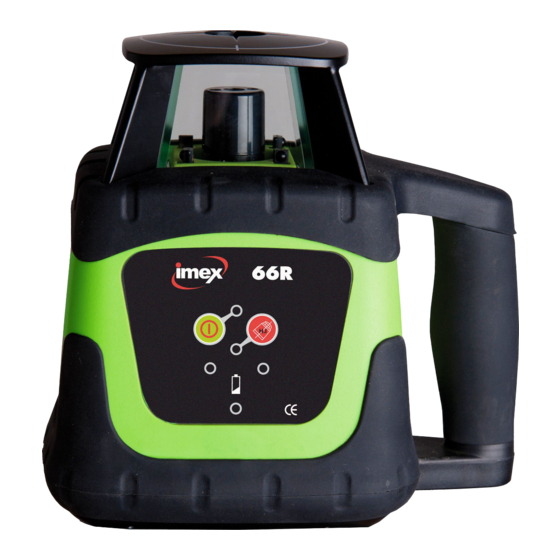

Page 7: Imex 66R
Although the product meets the strict regulations and standards which are in force in this respect, Imex cannot completely exclude the possibility that the product may be disturbed by intense electromagnetic radiation, for example, near radio transmitters, two-way radios or diesel generators. -
Page 8: Components
Once the LED has stopped flashing the laser is level and ready for use. The Bump Stop function can also be used and protects the 66R against changes in elevation caused by movement of the tripod to ensure accurate work. -
Page 9: Set Up
If the Bump-stop function is on then the 66R will take about a minute to self- level before the indicator lights remain solid. If the unit is then knocked the laser will turn off and need to be reset by the operator. -
Page 10: Receivers
Weight 450G with battery and bracket 5 Batteries The 66R is supplied with a DC4.8 – 6v Ni-mh rechargeable battery which can be General charged in the unit or away from the unit. Alkaline batteries can be used with the supplied battery holder. -
Page 11: Accuracy
Place the 66R on a flat, level surface or tripod approximately 30m from a wall. Align the first axis so that it is square to the wall. Allow the 66R to self- level completely and it will begin to rotate. -
Page 12: Care And Maintenance
7 Care and Maintenance Transport When transporting the 66R always ensure that it is carried in the original foam lined carry case. Never transport the unit loose in your vehicle as the shock and vibration will affect the accuracy and could knock it out of calibration.
