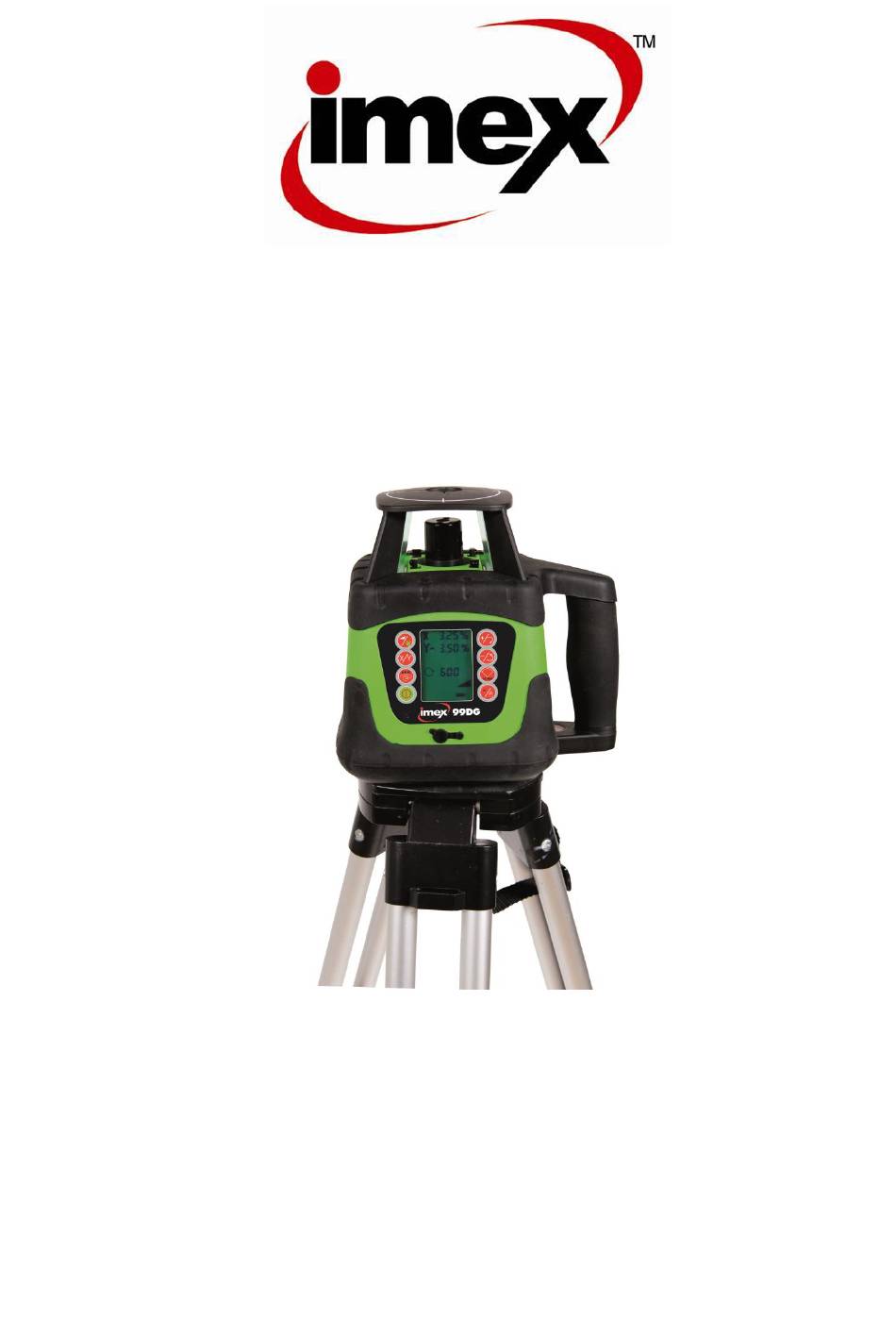

Page 1 IMEX 99DG DUAL GRADE LASER OPERATION MANUAL...
Page 2 IMEX 99DG DUAL GRADE LASER OPERATING MANUAL Introduction Congratulations on your purchase of a quality Imex rotating laser. These lasers have been designed for the professional and incorporate the latest laser technology with a robust and simple construction for years of trouble-free use.
Page 3: Table Of Contents
IMEX 99DG DUAL GRADE LASER OPERATING MANUAL Contents Page 1. About the Instrument – Functions 2. Basic Operation 3. Grade Mode Operation 4. Scan Mode Operation 5. Vertical Operation 6. Batteries 7. Checking Accuracy 8. Trouble Shooting 9. Warranty, Service and Care...
Page 4: About The Instrument - Functions

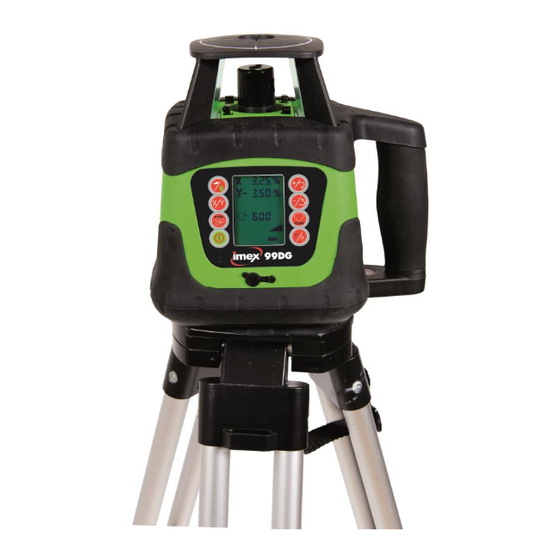

1. About the Instrument - Functions 1.1 Instrument Overview Laser Module Handle Laser Detector Beam Windows Control Panel Staff Bracket Battery recharge outlet Rubber Sheathed base 1.2 Control Panel a) Grade activation & display light b) x/y axis selection c) Rotation speed control d) On/Off switch e) Grade display setting f) Grade setting buttons &...
Page 5 On the 99DG, if the unit is placed in a horizontal position, the laser emits a vertical beam. A plumb spot at 90º to the main beam is emitted from the base and the top of the instrument.
Page 6: Basic Operation
2. Basic Operation 2.1 Standard Set-up Levelling (see dia over page) Place unit on tripod and roughly set up so that the instrument is within 5% of level. Switch the unit on (d). The unit will then level itself and the diode will emit a beam and commence spinning.
Page 7 The receiver has two settings; a course and a fine setting. The band width and the audio volume can be adjusted using the receiver’s buttons. Standard Leveling Set-up When set up the instrument will create a laser beam across the entire work site to a radius of 250m and the receiver will give a signal in all points within the instruments range...
Page 8: Grade Mode Operation
3. Grade Slope Operation The Imex 99DG has a semi-automatic grade slope function to 10% on both X and Y axis’s. This allows for the following tasks to be performed; Sloped concrete slabs, drainage slope, ceiling and grid slopes, fencing slopes.
Page 9 3. Grade Slope Operation cont: 3.3 Dual Grade Sloping – Used for areas where a fall is made simultaneously to a point 90º to the other axis. Ideally site instrument to one corner of the worksite. Set X axis as shown. At 90º to the X axis set the Y axis in the same manner.
Page 10: Scan Mode Operation
4. Scan Mode Operation The scan mode function allows the laser beam to emit only in a restricted radius. This function is useful for; - Internal layout work where work is being carried out in single runs or sections i.e. wall or ceilings - On restricted sites internal or external where other laser or electrical equipment may be in use - On busy sites where eye safety with other workers may be an OH &...
Page 11 5. Vertical Function The vertical function allows the instrument to be laid horizontally and a vertical line is emitted. This function is used for; - Alignment of formwork or pipeline runs in external situations - Alignment of internal wall, floor and ceiling layout - In conjunction with the plumb spot beam, which is always 90º...
Page 12: Batteries
Determine datum point at end of run with the receiver. Instrument is now set to give a straight laser beam over the full length of the run. Outdoor vertical function 90º Plumb & Vertical 6. Batteries The instrument is powered by 4 DC4.8-6V Nimh rechargeable batteries that allow for approximately 20 hours continuous use in standard conditions (20º-25º) &...
Page 13: Checking Accuracy
DO NOT OVER CHARGE BATTERIES! 7. Checking Accuracy Your Imex instrument has been pre-set and calibrated for accuracy before dispatch and should perform within the stated accuracy tolerance in standard conditions. However if the...
Page 14 The value or the difference between the two points should not exceed 3mm (±1.5mm from centre) Repeat the process on the Y axis Rotate 180º x1 Beam X2 Beam 7.2 Plumb spot Horizontal check - Place instrument on horizontal axis on tripod or similar, 10m from a wall - Mark the spot on the wall - Turn unit 180º...
Page 15: Warranty Service And Care
9. Warranty Service and Care 9.1 Warranty The Imex rotating laser range is covered with a 12 month warranty and a separate warranty form is included. Fill this out and return to the supplier. International Measuring Equipment Precision House ●...
Page 16: Technical Specifications
YES 10º,45º,90º,180º Battery Charger 240V Automatic Grade Slope ± 10.00% X & Y axis Working Temperature C - +50 Imex LR1 Heavy duty YES -accuracy +/ 1mm @ Plumb Spot Detector Double sided operation 1.5m fine & course setting Light Source...
