Summary of Contents for imex LX3DR

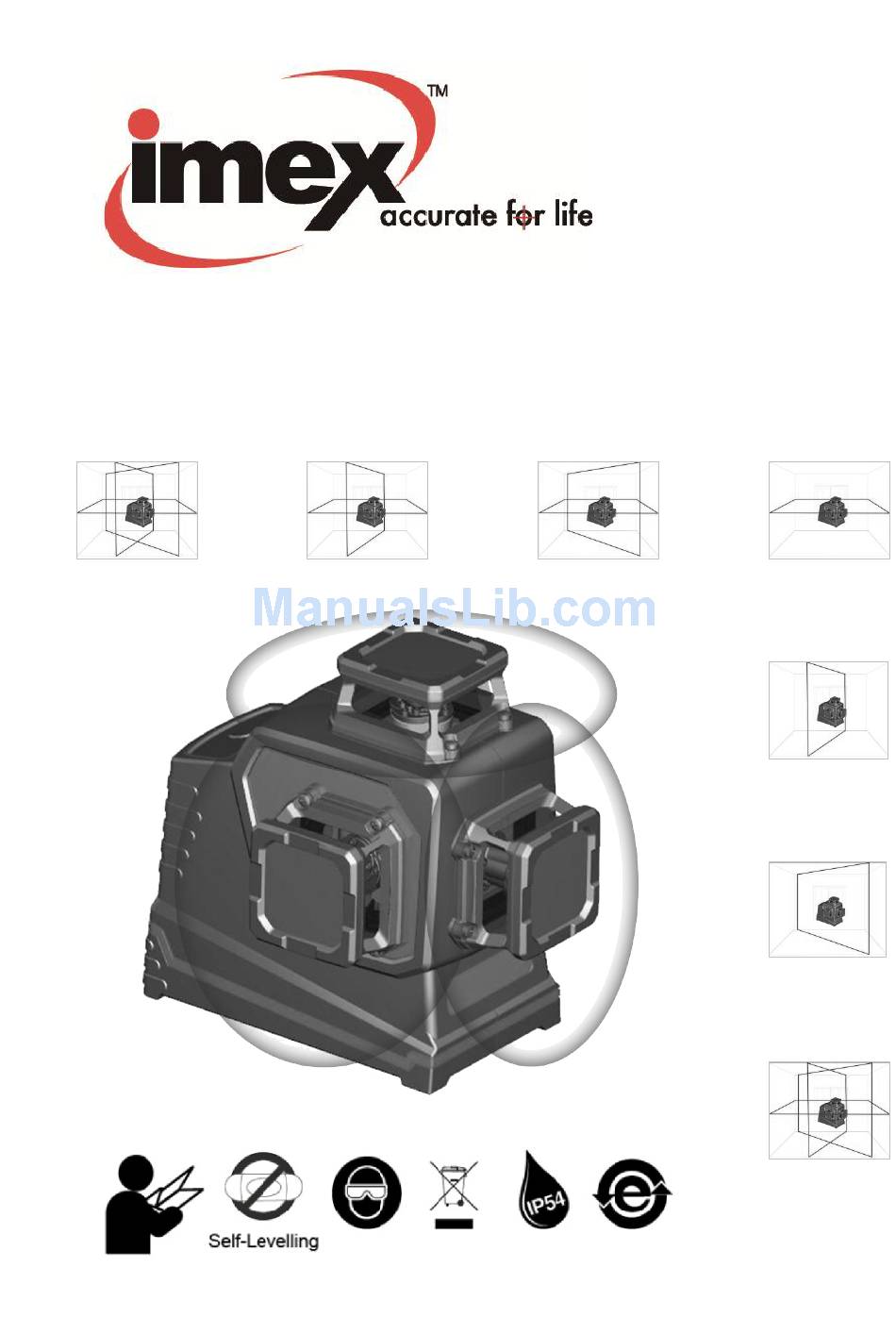

- Page 1 3 x 360° Plane Laser Level Red Beams LX3DR Green Beams LX3DG...
-
Page 2: Table Of Contents
Congratulations! You have chosen the Imex LX3D - 3x360°Plane Laser Level that’s guaranteed reliable and tough for professional tool users. Imex is the global brand providing professional results through accuracy and efficiency. Please read these instructions carefully before operating the LX3D with red or green beams. -
Page 3: Safety
Safety WARNING: • It is the operators’ responsibility to read the Safety Instructions and User Manual thoroughly before using this product. CAUTION: CLASS II RADIATION: • Do not stare into the laser beams. Exposure to a laser beam for an extended time may be hazardous to your eyes. -
Page 4: Product Overview
Product Overview Horizontal 360°Plane α Vertical 360°Plane γ Keypad Charging Charging Jack Pendulum/Transit Lock Vertical 360°Plane β 5/8”-11 threaded mount 1/4”-20 threaded mount Alkaline Battery Pack Li-ion Battery Pack... -
Page 6: Operation Modes & Led Indications
Operation Modes & LED Indications General Notes: • Short Press to turn laser tool ON to project all laser beams in Full Time Pulse Mode; • Press repeatedly to cycle through the available modes. • Press and hold for ≥ 2 seconds to turn laser tool OFF ONLY when the pendulum is locked. -
Page 7: Applications
Applications Level / Point Transfer • Establish a horizontal reference plane by using the horizontal laser beam. • Position the desired object(s) until they are aligned with the horizontal reference plane to make sure that the object(s) are level. Plumb / Point Transfer •... - Page 8 Square • Establish a point where the 2 beams cross by using the vertical and horizontal laser beams. • Position the desired object(s) until they are aligned with both the vertical and horizontal laser beams to make sure that the object(s) are square. Full time &...
-
Page 9: User Guide, Maintenance And Care
User Guide, Maintenance and Care • The LX3D is sealed and calibrated at the plant to the accuracies specified. • It’s recommended to carry out an accuracy check before its first use and periodic checks during future use. • When not in use please power OFF the tool and place the pendulum lock in its locked position. - Page 10 Specifications - LX3DR 3 x 360° Plane Laser Level - Red Beams Laser Class: Class 2 (IEC/EN60825-1/2014) Laser Wavelength: 635 ± 5nm Leveling Accuracy: ±2mm/10m Horizontal/Vertical Accuracy: ±2mm/20m Leveling/Compensation Range: 4°±1° Working Distance (Line): Working Distance (Line with Detector): Power Source: Lithium-ion 7200mAH 3.7V...
- Page 11 Specifications - LX3Dg 3 x 360° Plane Laser Level - Green Beams Laser Class: Class 2 (IEC/EN60825-1/2014) Laser Wavelength: 510nm ~ 530nm Leveling Accuracy: ±2mm/10m Horizontal/Vertical Accuracy: ±2mm/10m Leveling/Compensation Range: 4°±1° Working Distance (Line): Working Distance (Line with Detector): Power Source: Lithium-ion 7200mAH 3.7V Alkaline 1500mAh 6V Operating Time:...
- Page 12 Warranty – Three Year Warranty We are confident of the quality of our products and offer outstanding guarantee for professional users of the products. This statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user.
- Page 13 www.imexlasers.com...
