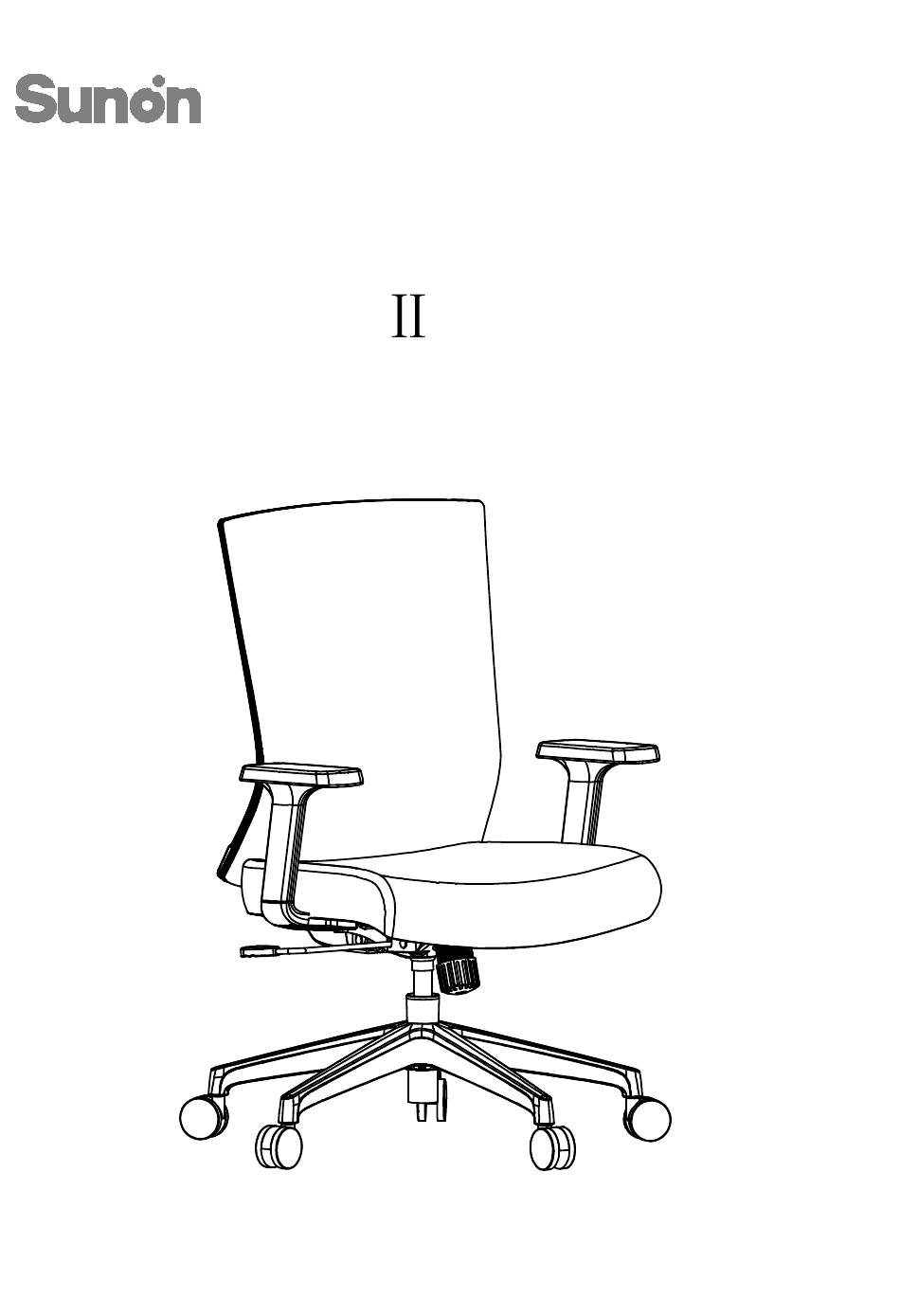

- Page 1 IRON Series Installation Manual This manual is used for the installation of CIR64SW-2&CIR65SW-2 Please read this manual carefully before use and keep it properly.
-
Page 2: Assembly Note
Assembly note: Use a protective mat and handle the product with care. Note: At least two people are required. Contact Sunon if you have any confusions. -
Page 3: Exploded Diagram
This picture shows all the accessories required, among which some are key accessories. This picture shows all the accessories required, among which some are key accessories. If you have missed any, please contact Sunon at 949-337-8838 If you have missed any, please contact Sunon at 949-337-8838... -
Page 4: Accessory List
Accessory list: Screw 1/4"*5/4" Screw 1/4"*3/4" Screw 1/4"*3/2" Washer Allen wrench... - Page 5 1. First fit casters into the five-star base. Then insert the bottom end of the gas lift into the central hole of the base.
- Page 6 2. Follow the order of screw (A), washer (D), armrests, seat cushion and fix the armrests to the seat cushion. 1/4"*5/4" (x6) (x6) (x1)
- Page 7 3. Follow the order of screw(B), washer(D), mechanism, seat cushion and fix the mechanism to the seat cushion. 1/4"*3/4" (x4) (x4) (x1)
- Page 8 4. Follow the order of screw (C), washer (D), backrest, seat cushion and fix the backrest to the seat cushion. 1/4"*3/2" (x4) (x4) (x1)
- Page 9 5. Align the mechanism hole with the upper end of the gas lift and lay down the chair vertically. The installation of chair is done. Done...
- Page 10 Function: 1. Adjust Seat Height Upward: get your body off the seat and pull the lever to lift the seat to an appropriate height. Downward: press down and pull the lever to lower the seat to the appropriate height.
- Page 11 Function: 2. Adjust Lumbar Support Rotate the lumbar support upward or downward to adjust it to an appropriate position.
- Page 12 Function: 3. Tilting and Locking Adjustment Pull out the lever to tilt the backrest at will, and push the handle inward to lock the backrest.
- Page 13 Function: 4. Adjust Backrest Tilt Tension Rotate the knob under the seat to adjust the tilt tension of backrest according to your need.
- Page 14 Acceptance note: Clean the surface. Acceptance note: Tidy up. Check and deliver.
- Page 16 Suite 150, Building 525 Technology Drive, Irvine, CA.92618 info.us@isunon.com sunonglobal.com 949-337-8838...
