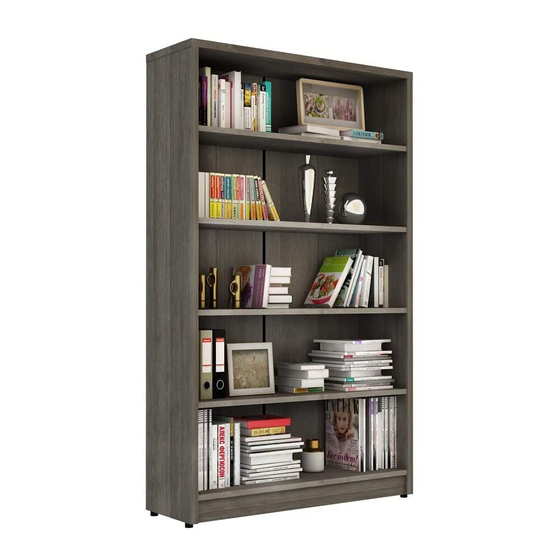

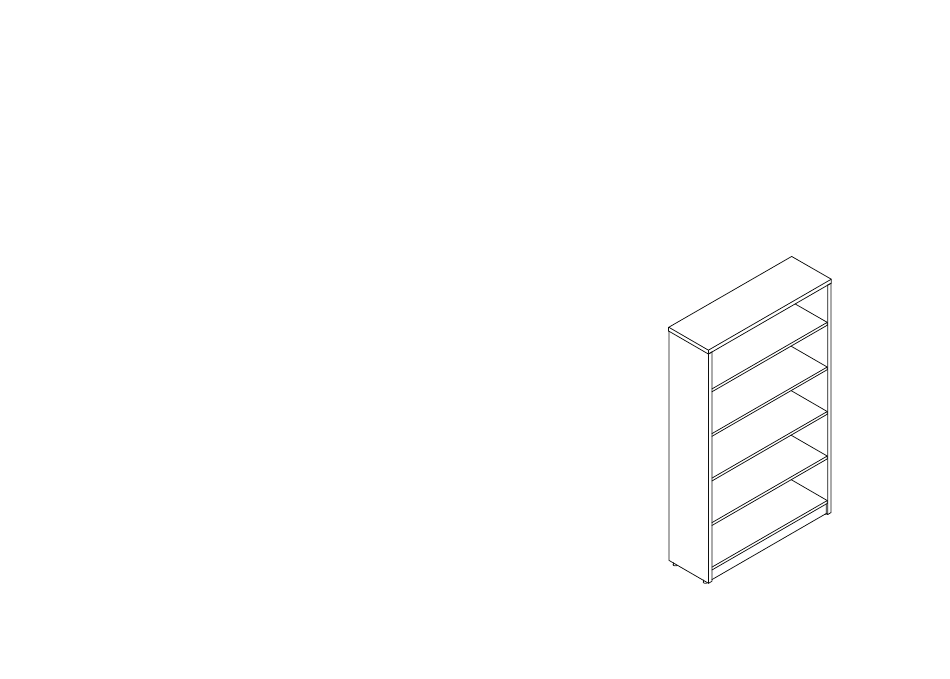

- Page 1 Five-layer Open Bookcase Assembly Manual Please read this manual carefully before any operation and keep it properly for future use.
-
Page 2: Panel List
NOTE 863*273*18mm Bottom Board（×1） 70*863*18mm Base Panel（×1） 1480*294*25mm Side Boards（×2） 862*273*8mm Fixed Shelf Panel（×1） Safe carriage,multi-people are needed. 915*295*25mm Top Board（×1） 1484*435*5mm Back Boards（×2） 862*272*18mm Movable Shelf Panels（×3） Handle with care,protective layer is required. In case of any doubts,contact Sunon. -
Page 3: Accessories List
Assembly Manual Step 2： Accessories List Fit and fasten the Bottom Board and fixed Panel with two Side Panels. Three-in-one Connector Three-in-one Connector Dowel Cover Three-in-one Connector Wood Pin 15*32mm 17.8*4.5mm 8*40mm （×13+1） （×13+1） （×13+1） 15*32mm 8*40mm （×8） （×10） Pan Head Self Tapping Adjusting Pin Shelf Support Screw... - Page 4 Assembly Manual Step 4： Step 3： Insert Back Board along with side slot,and connect them with Fit and fasten the Top Board with Side Panels. Back board slot. Three-in-one Connector Wood Pin Back Board Slot Roundhead Self-tapping Adjusting Pin Screw 15*32mm 8*40mm （×4）...
- Page 5 Assembly Manual Step 5： Step 6： Put the Movable Shelf Panels in wherever you want. Finished as below. Cover for Three-in-one Movable Shelf Support Connector 5*15mm （×12） 17.8*4.5mm （×13）...
