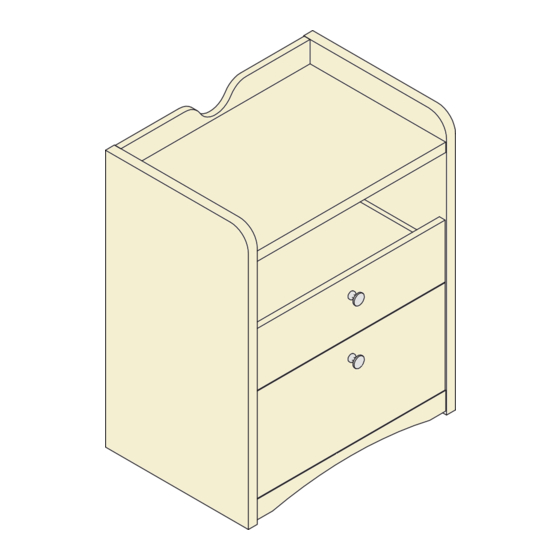

Two-Drawer Nightstand
Assembly Manual
DAM9003.058072
Please read this manual carefully before any operation and keep it properly for future use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DAM9003.058072 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUNON DAM9003.058072

Summary of Contents for SUNON DAM9003.058072

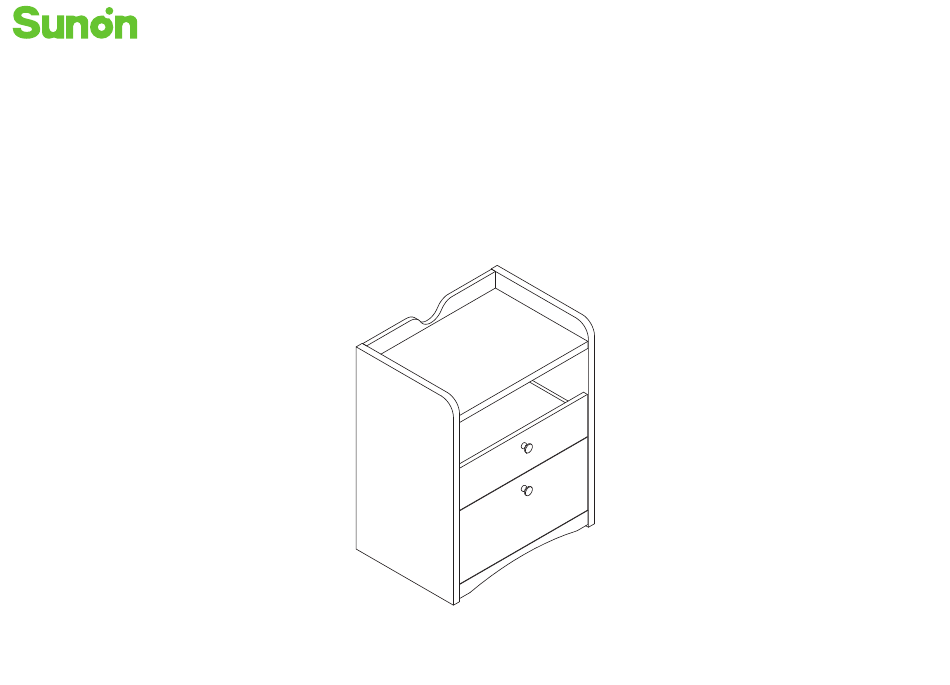

  • Page 1 Two-Drawer Nightstand Assembly Manual DAM9003.058072 Please read this manual carefully before any operation and keep it properly for future use.
  • Page 2 If you have any issue regarding the product, please contact us at ecservice@isunon.com. NOTE Safe carriage,multi-people are needed. TIPS： The number in the picture indicates the corresponding panel type. Please refer to the “ Panel List ” for details. Handle with care,protective layer is required. In case of any doubts,contact Sunon.

  • Page 3: Panel List

    DAM9003.058072 Assembly Manual Panel List Accessories List Three-in-one Connector Dowel Numbers Size Panels 720*530*16mm Back Panel（×1） 490*344*5mm Drawer Bottom（×2） L=25mm （×24） 8*40mm （×28） 530*364*16mm Three-in-one Screw Bottom Panel（×1） Phillips Flat-Head Screw 530*380*25mm Top Panel（×1） 530*364*16mm M4*14 （×16） Shelf Panel（×1） L=20mm （×8）...
  • Page 4 DAM9003.058072 Assembly Manual Assembly Instructions Step 3： Install Back Panel. 1.Install 2 Dowels and 2 Three-in-one Connectors on Back Step 1： Install Bottom Panel. Panel(No.1). Install 2 Dowels and 2 Three-in-one Connectors into holes in Bottom 2.Install Bottom Panel (No. 3) onto Bottom Front Panel (No. 6).
  • Page 5 DAM9003.058072 Assembly Manual Step 4： Install 2 Top Panels. Step 5： Separate Drawer Slides. Install 4 Dowels and 4 Three-in-one Connectors into holes in Back Panel(No. 1), then install Top Panel (No.4) and shelf Panel (No.5) onto Back Panel (No.1).
  • Page 6 DAM9003.058072 Assembly Manual Step 6： Install Drawer Slides. Step 7： Install 2 Side Panels. Three-in-one Connector Phillips Flat-Head Screw Drawer Slides -Cabinet menber （×2 Set） M4*14 14” L=25mm （×8） （×16） Dowel 8*40mm （×16）...
  • Page 7 DAM9003.058072 Assembly Manual Step 8： Step 9： Install Upper Drawer-Part One. Install Upper Drawer-Part Two. Install 4 3-in-1 Screws into holes in Upper Drawer Front Panel (No. 7), Install Upper Drawer Back Panel. then install Upper Drawer Side (No. 9) onto Upper Drawer Front (No. 7).
  • Page 8 DAM9003.058072 Assembly Manual Step 10： Step 11： Install Upper Drawer-Part Three. Install Lower Drawer (following Step 8、9 and 10). Install Drawer Member. Phillips Flat-Head Screw Three-in-one Screw Phillips Flat-Head Screw Drawer Slides -Drawer Member （×1 Set） M4*14 14” L=20mm M4*14 （×4）...
  • Page 9 DAM9003.058072 Assembly Manual Step 12： Step 13： Install Drawer Handles. Insert the Drawers. Phillips Pan Head Screw Drawer Handle M4*22 27.5*26mm （×2） （×2）...
  • Page 10 DAM9003.058072 Assembly Manual NOTE： Remove the Drawer. Done! If you want to remove the drawer,please pull the drawers all the way out,then push the plastic tab of the ball bearing slide up on one side and down in the other side,and then pull the drawer completely out.
