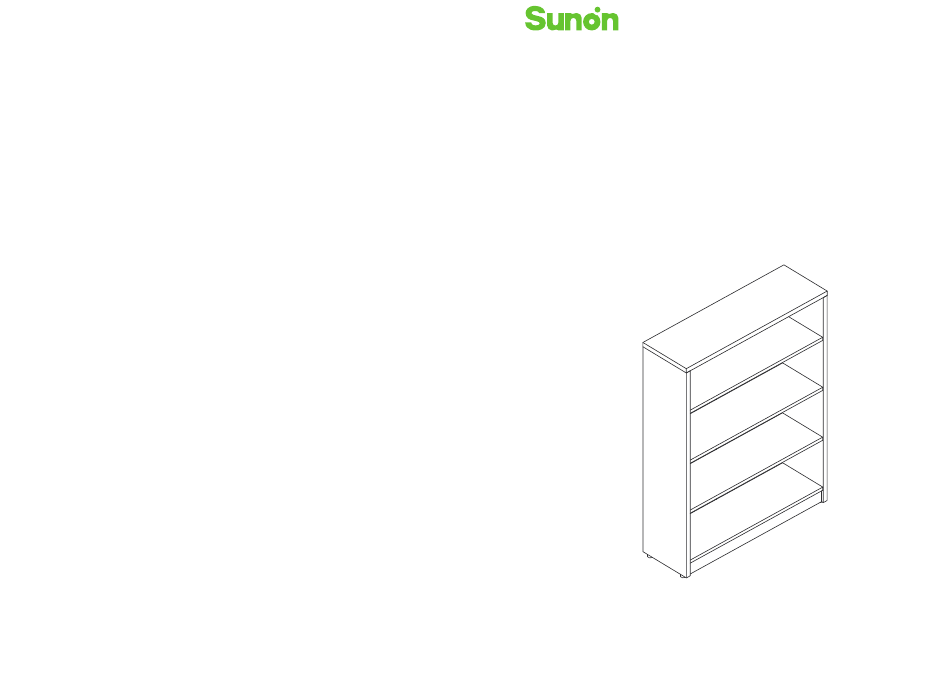

- Page 1 Four-layer Open Bookcase Assembly Manual YD9001 Please read this manual carefully before any operation and keep it properly for future use.
- Page 2 Panels Size Numbers 863*273*18mm Bottom Board（×1） NOTE 70*863*18mm Base Panel（×1） 1180*294*25mm Side Boards（×2） 915*295*25mm Top Board（×1） Safe carriage,multi-people are needed. 1184*435*5mm Back Boards（×2） 862*272*18mm Movable Shelf Panels（×3） Handle with care,protective layer is required. In case of any doubts,contact Sunon.
- Page 3 YD9001 Assembly Manual Accessories List Step 2： Fit and fasten the Bottom Board on each of the Side Panels. Three-in-one Connector Cover for Three-in-one Wood Pin Connector Three-in-one Connector Wood Pin 15*32mm 17.8*4.5mm 8*40mm （×9+1） （×9） （×10） Roundhead Self-tapping Adjusting Pin...
- Page 4 YD9001 Assembly Manual Step 3： Step 4： Insert Back Board along with side slot,and connect them with Fit and fasten the Top Board on each of Side Panels. Back board slot. Three-in-one Connector Wood Pin Roundhead Self-tapping Back Board Slot...
- Page 5 YD9001 Assembly Manual Step 5： Step 6： Put the Movable Shelf Panels in wherever you want. Finished as below. GA Cover for Three-in-one Movable Shelf Support Connector 5*15mm （×12） 17.8*4.5mm （×9）...
